Flared Tube Fitting Angle Identifiers

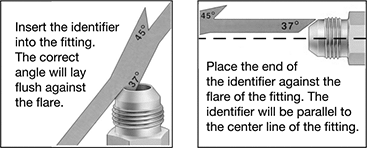

How To Measure The Angle Of A Flared Fitting
Use this pocket-size identifier to determine the angle of your flared fitting.
| For Flared Tube Fitting Angle | Each | |
| 37°, 45° | 0000000 | 000000 |
Electronic Chamfer Gauges
Whether a chamfered edge is in a screw hole or on the end of a rotary shaft, these gauges find its diameter. Use them to confirm the tolerance of edges after milling, drilling, and reaming. They measure chamfers on the inside or outside diameter of your bore. As you trace the probe of these gauges along an edge, an internal sensor records the distance and angle. The calculated diameter displays on the LCD screen for quick readings. All have SPC data output to transfer information to your computer or data processor—you don’t even need any cables.
Choose a gauge with an angle that is greater than or equal to the chamfer angle you are trying to measure.
Measuring Range | Accuracy | Measuring Increments | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Angle Measured | Inch | Metric | Inch | Metric | Inch | Metric | Probe Type | Material | Batteries Included | Each | |
| 15° | 0"-0.39" | 0 mm-10 mm | ±0.002" | ±0.06 mm | 0.0005" | 0.01 mm | Blade | Stainless Steel | Yes | 0000000 | 0000000 |
| 20° | 0"-0.39" | 0 mm-10 mm | ±0.002" | ±0.06 mm | 0.0005" | 0.01 mm | Blade | Stainless Steel | Yes | 0000000 | 000000 |
| 30° | 0"-0.39" | 0 mm-10 mm | ±0.002" | ±0.06 mm | 0.0005" | 0.01 mm | Blade | Stainless Steel | Yes | 0000000 | 000000 |
| 45° | 0"-0.39" | 0 mm-10 mm | ±0.002" | ±0.06 mm | 0.0005" | 0.01 mm | Blade | Stainless Steel | Yes | 0000000 | 000000 |
| 60° | 0"-0.39" | 0 mm-10 mm | ±0.002" | ±0.06 mm | 0.0005" | 0.01 mm | Blade | Stainless Steel | Yes | 0000000 | 000000 |
