Rounded Head Toggle Bolts
A spring-loaded toggle holds against the back of the material. To install, insert the bolt through your fixture and thread the toggle onto it. Next, fold the toggle wings flush against the bolt and push them through a drilled hole until they pop open on the other side. Pull back on the bolt and tighten. In denser materials such as high-strength concrete, use a drill bit that is 1/16" larger than the size listed.
Bolts are zinc-plated steel to resist corrosion in wet environments. The bolt is reusable, but the toggle will fall behind the wall when the bolt is removed. Extra toggles are sold separately.
For technical drawings and 3-D models, click on a part number.
Toggle Bolts | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Thread | Strength, lbs. | Head | Extra Toggles | |||||||||||||||
| Lg. | Usable Lg. | Size | Lg. | Wing Span | Drill Bit Size | Pull-Out | Shear | Tested In | Dia. | Ht. | Drive Style | For Use In | Pkg. Qty. | Pkg. | Pkg. Qty. | Pkg. | ||
Zinc-Plated Steel | ||||||||||||||||||
1/8" Dia. | ||||||||||||||||||
| 2" | 1 1/8" | 6-32 | 1 7/8" | 1 1/2" | 3/8" | 35 | 30 | 1/2" Drywall | 0.24" | 0.15" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 | __ | 000000 | 00 |
| 3" | 2 1/8" | 6-32 | 2 7/8" | 1 1/2" | 3/8" | 35 | 30 | 1/2" Drywall | 0.24" | 0.15" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 0000 | __ | 000000 | 00 |
| 4" | 3 1/8" | 6-32 | 3 7/8" | 1 1/2" | 3/8" | 35 | 30 | 1/2" Drywall | 0.24" | 0.15" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 | __ | 000000 | 00 |
3/16" Dia. | ||||||||||||||||||
| 2" | 7/8" | 10-24 | 1 7/8" | 2 1/8" | 1/2" | 45 | 45 | 1/2" Drywall | 0.33" | 0.13" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 | 50 | 000000000 | 000000 |
| 3" | 1 7/8" | 10-24 | 2 7/8" | 2 1/8" | 1/2" | 45 | 45 | 1/2" Drywall | 0.33" | 0.13" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 | 50 | 000000000 | 00000 |
| 4" | 2 7/8" | 10-24 | 3 7/8" | 2 1/8" | 1/2" | 45 | 45 | 1/2" Drywall | 0.33" | 0.13" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 | 50 | 000000000 | 00000 |
| 6" | 5" | 10-24 | 6" | 2" | 1/2" | 45 | 45 | 1/2" Drywall | 0.365" | 0.13" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 | 50 | 000000000 | 00000 |
1/4" Dia. | ||||||||||||||||||
| 3" | 1 7/8" | 1/4"-20 | 2 7/8" | 2 1/8" | 5/8" | 50 | 50 | 1/2" Drywall | 0.46" | 0.205" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 25 | 000000000 | 00000 | 25 | 000000000 | 00000 |
| 4" | 2 7/8" | 1/4"-20 | 3 7/8" | 2 1/8" | 5/8" | 50 | 50 | 1/2" Drywall | 0.46" | 0.205" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 25 | 000000000 | 00000 | 25 | 000000000 | 00000 |
5/16" Dia. | ||||||||||||||||||
| 3" | 1 1/2" | 5/16"-18 | 2 7/8" | 2 5/8" | 7/8" | 60 | 60 | 1/2" Drywall | 0.57" | 0.24" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 10 | 000000000 | 00000 | 10 | 000000000 | 00000 |
| 4" | 2 1/2" | 5/16"-18 | 3 7/8" | 2" | 7/8" | 60 | 60 | 1/2" Drywall | 0.59" | 0.25" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 10 | 000000000 | 00000 | 10 | 000000000 | 00000 |
3/8" Dia. | ||||||||||||||||||
| 3" | 1 3/8" | 3/8"-16 | 2 7/8" | 3" | 7/8" | 60 | 60 | 1/2" Drywall | 0.691" | 0.25" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 10 | 000000000 | 00000 | 25 | 000000000 | 00000 |
| 4" | 2 5/8" | 3/8"-16 | 3 7/8" | 3" | 7/8" | 60 | 60 | 1/2" Drywall | 0.691" | 0.25" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 10 | 000000000 | 00000 | 25 | 000000000 | 00000 |
| 5" | 3 3/8" | 3/8"-16 | 4 7/8" | 3" | 7/8" | 60 | 60 | 1/2" Drywall | 0.691" | 0.25" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 10 | 000000000 | 00000 | 25 | 000000000 | 00000 |
| 6" | 4 3/8" | 3/8"-16 | 5 7/8" | 3" | 7/8" | 60 | 60 | 1/2" Drywall | 0.691" | 0.25" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 5 | 000000000 | 00000 | 25 | 000000000 | 00000 |
1/2" Dia. | ||||||||||||||||||
| 4" | 1 1/2" | 1/2"-13 | 3 7/8" | 4 3/4" | 1 1/4" | 75 | 75 | 1/2" Drywall | 0.785" | 0.36" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 5 | 000000000 | 00000 | 10 | 000000000 | 00000 |
| 6" | 3 1/2" | 1/2"-13 | 4 7/8" | 4 3/4" | 1 1/4" | 75 | 75 | 1/2" Drywall | 0.785" | 0.36" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 5 | 000000000 | 00000 | 10 | 000000000 | 00000 |
Low-Profile Rounded Head Toggle Bolts
A shallow head makes these bolts good for low-clearance applications. The spring-loaded toggle holds against the back of the material. To install, insert the bolt through your fixture and thread the toggle onto it. Next, fold the toggle wings flush against the bolt and push them through a drilled hole until they pop open on the other side. Pull back on the bolt and tighten. In denser materials such as high strength concrete, use a drill bit that is 1/16" larger than the size listed.
Bolts are zinc-plated steel to resist corrosion in wet environments. The bolt is reusable, but the toggle will fall behind the wall when the bolt is removed.
For technical drawings and 3-D models, click on a part number.
Thread | Strength, lbs. | Head | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Usable Lg. | Size | Lg. | Wing Span | Drill Bit Size | Pull-Out | Shear | Tested In | Dia. | Ht. | Drive Style | For Use In | Pkg. Qty. | Pkg. | |
Zinc-Plated Steel | |||||||||||||||
1/8" Dia. | |||||||||||||||
| 3" | 2 1/8" | 6-32 | 2 31/32" | 1 1/2" | 3/8" | 35 | 30 | 1/2" Drywall | 0.321" | 0.086" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 |
| 4" | 3 1/8" | 6-32 | 3 31/32" | 1 1/2" | 3/8" | 35 | 30 | 1/2" Drywall | 0.321" | 0.086" | Slotted/Phillips | Drywall, Plaster, Wood Paneling | 50 | 000000000 | 00000 |
High-Strength Toggle Anchors

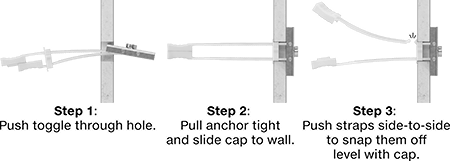

These high-strength toggle anchors provide an extremely strong hold and stay in position when a bolt is removed. To install, push the toggle through a drilled hole and pull the anchor back toward you until the toggle rests flush against the wall. Then, slide the cap up to the wall and snap off the straps. Next, position your fixture, insert a screw and tighten. For use with machine screws; minimum screw length is the wall and fixture thicknesses plus 1/2". Pull-out strength and shear strength values are 25% of the ultimate values.
Zinc-plated steel toggle anchors resist corrosion in wet environments.
For technical drawings and 3-D models, click on a part number.
Strength, lbs. | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Thread Size | Usable Lg. Range | Wing Span | Drill Bit Size | Material | Color | Pull-Out | Shear | Tested In | Drive Style | Head Type | For Use In | Pkg. Qty. | Pkg. | |
Zinc-Plated Steel Toggle | ||||||||||||||
| 10-24 | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 200 | 200 | Hollow Concrete Block | Phillips, Slotted | Rounded | Drywall, Hollow Block, Plaster, Wood Paneling | 10 | 000000000 | 000000 |
| 1/4"-20 | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 250 | 250 | Hollow Concrete Block | Phillips, Slotted | Rounded | Drywall, Hollow Block, Plaster, Wood Paneling | 5 | 000000000 | 0000 |
Nylon Drilling Toggle Bolts
These toggle bolts speed installation by drilling their own pilot hole in 3/8"-5/8" thick drywall. To install, drive the anchor into the wall. Then, position your fixture and insert the bolt into the anchor. The toggle is drawn against the wall as you tighten the bolt. Once set, the anchor will remain secure if the bolt is removed.
For technical drawings and 3-D models, click on a part number.
Head | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | Screw Lg. | Lg. | Wing Span | For Wall Thick. | Toggle Material | Pull-Out Strength, lbs. | Tested In | Dia. | Ht. | For Use In | Pkg. Qty. | Pkg. | |
Nylon Plastic | |||||||||||||
| 6-32 | 2" | 1 3/8" | 1 3/4" | 3/8"-5/8" | Zinc Alloy | 25 | 1/2" Drywall | 0.68" | 0.05" | Drywall | 6 | 0000000 | 00000 |
| 6-32 | 3" | 1 3/8" | 1 3/4" | 3/8"-5/8" | Zinc Alloy | 25 | 1/2" Drywall | 0.68" | 0.05" | Drywall | 6 | 00000000 | 0000 |
| 10-24 | 2" | 1 5/8" | 2" | 3/8"-5/8" | Zinc Alloy | 30 | 1/2" Drywall | 3/4" | 0.05" | Drywall | 6 | 00000000 | 0000 |
| 1/4"-20 | 3" | 1 7/8" | 2 5/16" | 3/8"-5/8" | Zinc Alloy | 35 | 1/2" Drywall | 0.81" | 0.05" | Drywall | 4 | 00000000 | 00000 |
Zinc Alloy Drilling Toggle Bolts
These toggle bolts speed installation by drilling their own pilot hole in 3/8"- 5/8" thick drywall. To install, drive the anchor into the wall. Then, position your fixture and insert the bolt into the anchor. The toggle is drawn against the wall as you tighten the bolt. Once set, the anchor will remain secure if the bolt is removed.
For holes that are larger than the screw head, use toggle bolts with washer. Often used for anchoring or mounting into existing holes, they can be used in any application where you would need a separate washer.
For technical drawings and 3-D models, click on a part number.
Screw | Head | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Lg. | Washer OD | Lg. | Wing Span | For Wall Thick. | Toggle Material | Pull-Out Strength, lbs. | Tested In | Dia. | Ht. | For Use In | Pkg. Qty. | Pkg. | |
Zinc Alloy | ||||||||||||||
| No. 8 | 2 1/8" | __ | 2 1/2" | 1 1/2" | 3/8"-5/8" | Zinc Alloy | 70 | 1/2" Drywall | 0.57" | 0.025" | Drywall | 10 | 00000000 | 000000 |
Zinc Alloy with Washer | ||||||||||||||
| No. 8 | 2 1/8" | 0.438" | 2 1/2" | 1 1/2" | 3/8"-5/8" | Zinc Alloy | 70 | 1/2" Drywall | __ | 0.1" | Drywall | 10 | 000000000 | 00000 |
Toggle Bolt Anchor Assortments for Drywall, Plaster, and Wood Paneling
A wing-like toggle holds against the back of the material and spreads the force over a large area to hold 30 lbs. or more. The bolt is reusable, but the toggle will fall behind the wall when the bolt is removed. To install, insert the bolt through your fixture and thread the toggle onto it. Next, fold the toggle wings flush against the bolt and push them through a drilled hole until they pop open on the other side. Pull back on the bolt and tighten. Bolts are zinc-plated steel to resist corrosion in wet environments.
| Number of Pieces | Toggle Bolts Included | Container Type | Each | |
Zinc-Plated Steel | ||||
|---|---|---|---|---|
| 100 | 1/8" × 3" Lg. (25 Pieces) 1/8" × 4" Lg. (25 Pieces) 3/16" × 3" Lg. (15 Pieces) 3/16" × 4" Lg. (15 Pieces) 1/4" × 3" Lg. (10 Pieces) 1/4" × 4" Lg. (10 Pieces) | Plastic Box | 000000000 | 0000000 |
