T-Slotted Framing Structural Brackets
Connect T-slotted rails and reinforce joints for structural stability. Fasteners are included.
For technical drawings and 3-D models, click on a part number.
Concealed brackets mount internally and stay out of sight once installed.
Straight concealed brackets slide into T-slots.
Concealed brackets mount internally and stay out of sight once installed.
Corner concealed brackets slide into the T-slots of your two intersecting rails, leaving the outside surface slots open for mounting other components.
Concealed brackets mount internally and stay out of sight once installed.
Extended corner concealed brackets have more connection points for stronger connections than standard-length brackets. They slide into the T-slots of your two intersecting rails, leaving the outside surface slots open for mounting other components. Tighten the included set screws to hold them in place.
For Rail Ht. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Triple | Lg. | Color | Material | Rail Machining | Mounting Fasteners Included | Each | |
| 1 1/2", 40mm | 3", 80mm | 4 1/2", 120mm | 2 1/2" | Silver | Anodized 6105 Aluminum | Not Required | Yes | 00000000 | 000000 |
Concealed brackets mount internally and stay out of sight once installed.
Tee concealed brackets thread directly into a T-slot and use the included fastener to secure.
For Rail Ht. | ||||||||
|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Triple | Color | Material | Rail Machining | Mounting Fasteners Included | Each | |
| 1 1/2", 40mm | 3", 80mm | 4 1/2" | Silver | Zinc-Plated Steel | Not Required | Yes | 000000000 | 000000 |
| 20mm | 40mm | __ | Silver | Zinc-Plated Steel | Not Required | Yes | 00000000 | 0000 |
| 30mm | 60mm | __ | Silver | Zinc-Plated Steel | Not Required | Yes | 00000000 | 0000 |
| 45mm | 90mm | __ | Silver | Zinc-Plated Steel | Not Required | Yes | 00000000 | 00000 |
Concealed brackets mount internally and stay out of sight once installed.
Anchor concealed brackets allow positioning anywhere along the mating rail’s T-slot. Drill an installation hole in the face of one rail to install. Since the fastener is machined into the rail profile, these brackets create stronger connections than other brackets that don’t require machining. You can also use these brackets with our rails with machined bore holes.
For Rail Ht. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Triple | Material | No. of Installation Holes Required | Required Installation Hole Dia. | Rail Machining | Mounting Fasteners Included | Each | |
Silver | |||||||||
| 1 1/2" | 3" | 4 1/2" | Zinc | 1 | 13/16" | Required | Yes | 000000000 | 00000 |
| 1", 25mm | 2", 50mm | 3" | Zinc | 1 | 9/16" | Required | Yes | 000000000 | 0000 |
| 20mm | 40mm | __ | Zinc | 1 | 12mm | Required | Yes | 0000000 | 0000 |
| 30mm | 60mm | __ | Zinc | 1 | 20mm | Required | Yes | 00000000 | 0000 |
| 40mm | 80mm | __ | Zinc | 1 | 20mm | Required | Yes | 0000000 | 0000 |
| 45mm | 90mm | __ | Zinc | 1 | 20mm | Required | Yes | 00000000 | 0000 |
Black | |||||||||
| 1 1/2" | 3" | 4 1/2" | Zinc | 1 | 13/16" | Required | Yes | 00000000 | 0000 |
| 1", 25mm | 2", 50mm | 3" | Zinc | 1 | 9/16" | Required | Yes | 00000000 | 0000 |
Concealed brackets mount internally and stay out of sight once installed.

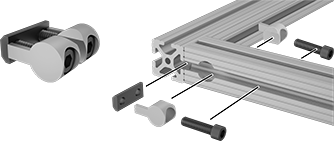

Double anchor concealed brackets allow positioning anywhere along the mating rail’s T-slot. Drill installation holes in two faces of one rail to install. Since the fasteners are machined into the rail profile, these brackets create stronger connections than other brackets that don’t require machining.
Concealed brackets mount internally and stay out of sight once installed.

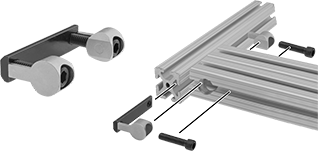

Double anchor concealed brackets allow positioning anywhere along the mating rail’s T-slot. Drill installation holes in two faces of one rail to install. Since the fasteners are machined into the rail profile, these brackets create stronger connections than other brackets that don’t require machining.
Concealed brackets mount internally and stay out of sight once installed.
Butt anchor concealed brackets join rails end-to-end to create longer rails. Drill an installation hole in the face of each rail to install. Since the fasteners are machined into the rail profile, these brackets create stronger connections than other brackets that don’t require machining.
For Rail Ht. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Triple | Color | Material | No. of Installation Holes Required | Required Installation Hole Dia. | Rail Machining | Mounting Fasteners Included | Each | |
| 1" | 2" | 3" | Silver | Zinc | 2 | 9/16" | Required | Yes | 000000000 | 000000 |
| 1 1/2" | 3" | 4 1/2" | Silver | Zinc | 2 | 13/16" | Required | Yes | 00000000 | 00000 |
| 20mm | 40mm | __ | Silver | Zinc | 2 | 12mm | Required | Yes | 00000000 | 0000 |
| 30mm | 60mm | __ | Silver | Zinc | 2 | 20mm | Required | Yes | 00000000 | 0000 |
| 40mm | 80mm | __ | Silver | Zinc | 2 | 20mm | Required | Yes | 00000000 | 0000 |
| 45mm | 90mm | __ | Silver | Zinc | 2 | 20mm | Required | Yes | 00000000 | 0000 |
Concealed brackets mount internally and stay out of sight once installed.

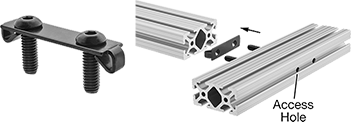

Tabbed concealed brackets require one hole to install the connector and one drilled access hole in the mating rail to secure the connection. You can also use these brackets with our machined rails with tapped or access holes. The brackets with a required tap thread size create stronger connections than other brackets that don't have tapped holes because the fasteners are machined into the rail profile. Brackets without a required tap thread size include thread-forming screws so you won't need to tap the end of your rail to install the connector. However, this connection is not as strong as the connections with a tapped hole.
| For Rail Ht. | Color | Material | Required Tap Thread Size  | Required Access Hole Dia. | Rail Machining | Mounting Fasteners Included | Each | |
Tabbed Concealed Brackets | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1", 25mm | Black | Zinc-Plated Steel | 1/4"-20 | 7/32" | Required | Yes | 000000000 | 00000 |
| 1 1/2", 40mm | Black | Zinc-Plated Steel | 5/16"-18 | 5/16" | Required | Yes | 000000000 | 0000 |
| 1 1/2", 40mm | Silver | Zinc-Plated Steel | __ | 9mm | Required | Yes | 0000000 | 0000 |
| 20mm | Silver | Zinc-Plated Steel | __ | 4.5mm | Required | Yes | 0000000 | 0000 |
| 30mm | Silver | Zinc-Plated Steel | M8 | 7.5mm | Required | Yes | 00000000 | 0000 |
| 40mm | Silver | Zinc-Plated Steel | M8 | 7.5mm | Required | Yes | 0000000 | 0000 |
| 45mm | Silver | Zinc-Plated Steel | __ | 9.5mm | Required | Yes | 00000000 | 0000 |
Tabbed Concealed Brackets for Radius Two Slot Rails | ||||||||
| 1", 25mm | Black | Zinc-Plated Steel | 1/4"-20 | 7/32" | Required | Yes | 00000000 | 0000 |
| 1 1/2", 40mm | Black | Zinc-Plated Steel | 5/16"-18 | 5/16" | Required | Yes | 00000000 | 0000 |
Concealed brackets mount internally and stay out of sight once installed.
Tabbed concealed brackets require one hole to install the connector and one drilled access hole in the mating rail to secure the connection. Since the fasteners are machined into the rail profile, these brackets create stronger connections than other brackets that don’t require machining.
Concealed brackets mount internally and stay out of sight once installed.
Easy-install tabbed concealed brackets come with a self-tapping screw, so you won't need to tap the end of your rail or drill an acess hole to make 90° and corner connections. Position them anywhere along the length of your rail. Their connections are stronger than corner concealed brackets and tabbed concealed brackets but not quite as strong as anchor brackets.
Concealed brackets mount internally and stay out of sight once installed.
Plate connector concealed brackets create a structural bracket connection point on the end of one rail that can attach at a 90° angle along another rail. They have a screw on one side and a T-slot nut on the other. Tap a hole in the end of one rail and thread in the screw. Then slide the T-slot nut into the slot of the other rail. Brackets with no required tap thread size include thread-forming screws.
Easy-adjust plate connector concealed brackets have fasteners that remain accessible after installation to simplify position changes. Often used to make shelf supports or cross bars to reinforce a structure, they create a structural bracket connection point on the end of one rail that can attach at a 90° angle along another rail. Install these brackets into the tapped end of a rail. Then, slide the spring-loaded ball nut into the slot on the other rail. Finally, fasten the outside bracket to the nut to connect the rails. You’ll get two brackets with all the included hardware.
For Rail Ht. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Triple | Color | Material | Required Tap Thread Size | Rail Machining | Mounting Fasteners Included | Each | |
| 1 1/2", 40mm | 3", 80mm | 4 1/2", 120mm | Silver | Zinc-Plated Steel | M8 | Required | Yes | 0000000 | 000000 |
Concealed brackets mount internally and stay out of sight once installed.
Miter concealed brackets connect rails with 45° or 90° miters. Slide them into the T-slots and tighten them in place with the included set screws.
For Rail Ht. | ||||||||
|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Triple | Color | Material | Rail Machining | Mounting Fasteners Included | Each | |
45° Angle Alignment Style | ||||||||
| 1 1/2", 30mm, 40mm | 3", 60mm, 80mm | 4 1/2", 120mm | Silver | Zinc-Plated Steel | Not Required | Yes | 0000000 | 000000 |
| 45mm, 60mm | 90mm | __ | Silver | Zinc-Plated Steel | Not Required | Yes | 0000000 | 00000 |
90° Angle Alignment Style | ||||||||
| 1 1/2", 30mm, 40mm | 3", 60mm, 80mm | 4 1/2", 120mm | Silver | Zinc-Plated Steel | Not Required | Yes | 0000000 | 00000 |
| 45mm, 60mm | 90mm | __ | Silver | Zinc-Plated Steel | Not Required | Yes | 0000000 | 00000 |
Concealed anchors mount internally and stay out of sight once installed.
Miter anchors connect rails with 30°-90° miters. Drill an access hole in each rail and slide the connector into the center hole, then thread the set screws into the T-nuts, through the access holes, and into the connector.
For Rail Ht., mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Color | Material | No. of Installation Holes Required | Required Installation Hole Dia., mm | Rail Machining | Mounting Fasteners Included | Each | |
| 45 | 90 | Silver | Zinc-Plated Steel | 2 | 8 | Required | Yes | 00000000 | 00000 |
Concealed anchors mount internally and stay out of sight once installed.

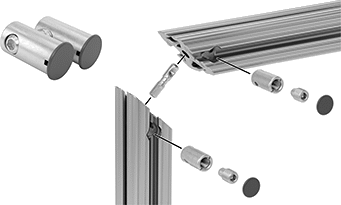

Miter butt anchors create the strongest miter connection because the fasteners are machined into the rail profiles. Use them to join rails with 60°, 90°, and 180° miters. Drill an installation hole in the face of each rail to install.
For Rail Ht. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Triple | Color | Material | Includes | No. of Installation Holes Required | Required Installation Hole Dia. | Rail Machining | Mounting Fasteners Included | Each | |
| 1 1/2", 40mm | 3", 80mm | 4 1/2", 120mm | Silver | Zinc-Plated Steel | Hole Covers | 2 | 14.2mm | Required | Yes | 0000000 | 000000 |
Concealed connectors mount internally and stay out of sight once installed.

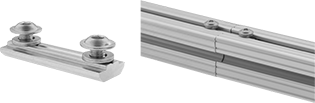

Butt and extended butt connectors join rails end-to-end to extend the length of rails without machining. Slide the connectors into a T-slot and tighten the screws to install.
Extended connectors have more connection points for stronger connections than standard-length brackets.
For Rail Ht. | ||||||||
|---|---|---|---|---|---|---|---|---|
| Single | Double and Quad | Lg. | Color | Material | Rail Machining | Mounting Fasteners Included | Each | |
Butt Connector | ||||||||
| 30mm | 60mm | 2" | Silver | Zinc-Plated Steel | Not Required | Yes | 00000000 | 00000 |
Extended Butt Connector | ||||||||
| 1 1/2", 40mm | 3", 80mm | 7" | Silver | Zinc-Plated Steel | Not Required | Yes | 00000000 | 00000 |
| 45mm | 90mm | 7" | Silver | Zinc-Plated Steel | Not Required | Yes | 00000000 | 00000 |
Concealed brackets mount internally and stay out of sight once installed.
Binding barrel concealed brackets thread directly into a T-slot and join rails end-to-end.
Lightweight Composite T-Slotted Framing and Fittings
Build lightweight structures, such as light duty machine guards, enclosures, and carts, with framing that is two-thirds the weight of aluminum framing. Made of 30% polypropylene and 70% wood, they’re not as strong as aluminum rails, but they’re nonconductive, easy to machine, and more corrosion resistant. Good for lab environments, they also withstand cleaning with chemicals better than aluminum. Use their continuous T-slots to attach fittings. They work with any T-slotted component for 40 mm rails that doesn’t require machining. View additional structural brackets and fasteners.
Brackets connect T-slotted composite rails for structural stability. Fasteners are included.
For technical drawings and 3-D models, click on a part number.
Concealed brackets mount inside rails, so they stay out of the way and out of sight once installed.
Tabbed brackets mount inside a hole in one rail and require a drilled access hole in the mating rail to secure the connection. They come with thread-forming screws, so you don't need to tap the end of your rail.
| For Rail Ht., mm | Color | Material | Rail Machining | Required Access Hole Dia., mm | Mounting Fasteners Included | Each | |
| 40 | Silver | Zinc-Plated Steel | Required | 7 | Yes | 0000000 | 00000 |
