Sign Posts
Drive these posts into the ground or use them with a base. Fasten a sign to a post using two 2-1/2" long screws and two nuts (not included).
Galvanized steel sign posts are more corrosion resistant than painted steel posts.
Sign Posts | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Post | Mounting Hole | Optional Installation Caps | Optional Reflective Covers | |||||||
| Ht., ft. | Wd. | Weight, lbs. | Dia. | Ctr.-to-Ctr. | Each | Each | Each | |||
Green-Painted Steel | ||||||||||
| 6 | 2 3/16" | 7 | 3/8" | 1" | 000000 | 000000 | 000000 | 00 | 000000 | 000000 |
| 7 | 2 3/16" | 8 | 3/8" | 1" | 0000000 | 00000 | 000000 | 00 | 000000 | 00000 |
| 8 | 3 1/8" | 16 | 3/8" | 1" | 000000 | 00000 | 000000 | 0000000 | 000000 | 00000 |
| 10 | 3 1/8" | 20 | 3/8" | 1" | 000000 | 00000 | 000000 | 000000 | 000000 | 00000 |
| 12 | 3 1/8" | 24 | 3/8" | 1" | 000000 | 00000 | 000000 | 000000 | 000000 | 00000 |
Galvanized Steel | ||||||||||
| 6 | 2 3/16" | 7 | 3/8" | 1" | 0000000 | 00000 | 000000 | 00 | 000000 | 00000 |
| 7 | 2 3/16" | 8 | 3/8" | 1" | 0000000 | 00000 | 000000 | 00 | 000000 | 00000 |
| 8 | 3 1/8" | 16 | 3/8" | 1" | 0000000 | 00000 | 000000 | 000000 | 000000 | 00000 |
| 10 | 3 1/8" | 20 | 3/8" | 1" | 0000000 | 00000 | 000000 | 000000 | 000000 | 00000 |
| 12 | 3 1/8" | 24 | 3/8" | 1" | 0000000 | 00000 | 000000 | 000000 | 000000 | 00000 |

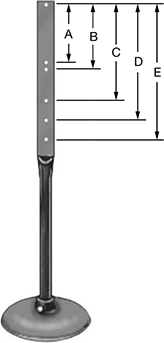

Freestanding Sign Posts
These posts have a cast iron base that's portable but hard to knock over. Mount the post to the base with the included hex head screw. Fasten a sign to the post using two 1” long screws and two nuts (not included).
Post | Mounting Hole Center-to-Center | Base | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht., ft. | Dia. | Material | Mounting Hole Dia. | (A) | (B) | (C) | (D) | (E) | Dia. | Weight, lbs. | Each | |
| 4 | 1 7/8" | Black-Painted Steel | 5/16" | 9" | 10" | 15" | 18" | 21" | 14" | 32 | 0000000 | 0000000 |
Bounce-Back Sign Posts
Reduce damage to signs, parking lot surfaces, and vehicles by installing these posts that rebound after contact. They have a spring at the bottom that offers 360° of flexibility.
Bounce-Back Sign Posts with Guard
The plastic guard reduces impact damage to the post and offers more protection to vehicles than other bounce-back sign posts. These posts have a spring at the bottom that offers 360° of flexibility and allows them to rebound after contact. The reflective bands increase visibility in low-light conditions.
Post | Guard | Base | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sign Post Base Type | Ht., ft. | Dia. | Material | Ht. | Dia. | Material | Color | Band Color | Wd. | Lg. | Mounting Fasteners Included | Includes | Each | |
| Bolt Down | 8 1/2 | 1 5/8" | Steel | 52" | 7" | Plastic | Yellow | Reflective Red | 9" | 9" | Yes | Sign Mounting Brackets | 0000000 | 0000000 |
| In Ground | 8 1/2 | 1 5/8" | Steel | 52" | 7" | Plastic | Yellow | Reflective Red | __ | __ | __ | Sign Mounting Brackets | 0000000 | 000000 |
| Replacement Sign Mounting Brackets (Pkg. of 2) | 0000000 | Pkg. | 000000 |
Sign Stakes
Drive these stakes into the ground and then slide a foam or corrugated plastic sign over the top. Use a single sign stake for signs up to 18 × 24. For signs that are wider, use additional sign stakes for increased stability.
Style B are twice as thick as Style A, making them more rigid and longer lasting.
