Rod End Nuts
Attach these nuts to rods, pipes, and tubes to make pivoting and hinge movements where misalignment is not a concern. They’re often used to control air- and hydraulic-powered arms as well as other components in power transmission systems. Made of zinc-plated steel, these nuts resist being dislodged. They’re heavy, however, and may corrode over time as the plating wears down.
For technical drawings and 3-D models, click on a part number.

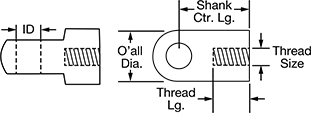

Nuts with Round Shank
Round Shank
Round Shank
| Shank Thread Size | ID, mm | Overall Diameter, mm | Shank Center Length, mm | Shank Thread Length, mm | Tensile Strength  | Material | Each | |
Right-Hand Threaded Shank | ||||||||
|---|---|---|---|---|---|---|---|---|
| M3.5 × 0.6 mm | 4.1 | 8 | 11 | 6 | Not Rated | Zinc-Plated Steel | 0000000 | 00000 |
| M5 × 0.8 mm | 6.1 | 10 | 16 | 8 | Not Rated | Zinc-Plated Steel | 0000000 | 0000 |
| M8 × 1.25 mm | 8.1 | 14 | 19 | 11 | Not Rated | Zinc-Plated Steel | 0000000 | 0000 |
| M10 × 1.5 mm | 8.1 | 18 | 27 | 12 | Not Rated | Zinc-Plated Steel | 0000000 | 0000 |

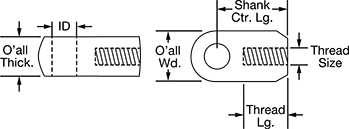

Nuts with Tapered Shank
Tapered Shank
Tapered Shank
| Shank Thread Size | ID, mm | Overall Width, mm | Overall Thickness, mm | Shank Center Length, mm | Shank Thread Length, mm | Tensile Strength | Material | Each | |
Right-Hand Threaded Shank | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| M5 × 0.8 mm | 8.1 | 15 | 10 | 16 | 8 | Not Rated | Zinc-Plated Steel | 0000000 | 00000 |
Corrosion-Resistant Rod End Nuts

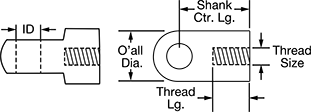

Round Shank
Made of stainless steel for excellent corrosion resistance, these nuts make pivoting and hinge movements where misalignment is not a concern. Attach them to rods, pipes, and tubes to control air- and hydraulic-powered arms as well as other components in power transmission systems. They have a rubber bushing to reduce noise and vibration.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID, mm | Overall Diameter, mm | Shank Center Length, mm | Shank Thread Length, mm | Tensile Strength | Material | Each | |
Right-Hand Threaded Shank | ||||||||
|---|---|---|---|---|---|---|---|---|
Round | ||||||||
| M5 × 0.8 mm | 6.1 | 10 | 16 | 8 | Not Rated | 303 Stainless Steel | 0000000 | 00000 |
| M8 × 1.25 mm | 8.1 | 14 | 19 | 11 | Not Rated | 303 Stainless Steel | 0000000 | 00000 |
| M10 × 1.5 mm | 8.1 | 18 | 27 | 12 | Not Rated | 303 Stainless Steel | 0000000 | 00000 |
Tube-End Weld Nuts
Weld these nuts to round uncoated metal tubes to attach threaded parts, such as rod ends. Also known as tube adapters and weldable threaded tube ends.
For technical drawings and 3-D models, click on a part number.
| For Tube Wall Thick. | Thread Size | Ht. | Threading | Thread Lg. | Each | |
4130 Alloy Steel | ||||||
|---|---|---|---|---|---|---|
For 3/8" Tube OD | ||||||
| 0.058" | 10-32 | 1" | Fully Threaded | 1" | 000000000 | 00000 |
For 1/2" Tube OD | ||||||
| 0.058" | 1/4"-28 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
| 0.058" | 5/16"-24 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
For 5/8" Tube OD | ||||||
| 0.058" | 5/16"-24 | 1" | Partially Threaded | 3/4" | 000000000 | 0000 |
| 0.058" | 3/8"-24 | 1" | Partially Threaded | 3/4" | 000000000 | 0000 |
| 0.058" | 7/16"-20 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
For 3/4" Tube OD | ||||||
| 0.058" | 5/16"-24 | 1" | Partially Threaded | 3/4" | 000000000 | 0000 |
| 0.058" | 3/8"-24 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
| 0.058" | 7/16"-20 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
| 0.065" | 5/16"-24 | 1 3/8" | Partially Threaded | 7/8" | 000000000 | 0000 |
| 0.065" | 3/8"-24 | 1 3/8" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.065" | 7/16"-20 | 1 3/8" | Partially Threaded | 1 1/8" | 000000000 | 0000 |
For 7/8" Tube OD | ||||||
| 0.058" | 3/8"-24 | 1 3/8" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.058" | 7/16"-20 | 1 3/8" | Partially Threaded | 1 1/8" | 000000000 | 0000 |
| 0.058" | 1/2"-20 | 1 3/8" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.065" | 3/8"-24 | 1 3/8" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.065" | 7/16"-20 | 1 3/8" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.065" | 1/2"-20 | 1 3/8" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.083" | 3/8"-24 | 1 1/2" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.083" | 7/16"-20 | 1 1/2" | Partially Threaded | 1 1/8" | 000000000 | 0000 |
| 0.083" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
For 1" Tube OD | ||||||
| 0.058" | 3/8"-24 | 1 1/2" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.058" | 7/16"-20 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.058" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.058" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.065" | 3/8"-24 | 1 1/2" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.065" | 7/16"-20 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.065" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.065" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.083" | 3/8"-24 | 1 1/2" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.083" | 7/16"-20 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.083" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.083" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.095" | 3/8"-24 | 1 1/2" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.095" | 7/16"-20 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.095" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.095" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
For 1 1/8" Tube OD | ||||||
| 0.058" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.058" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.065" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.065" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.083" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.083" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.083" | 3/4"-16 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.095" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.095" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.095" | 3/4"-16 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
For 1 1/4" Tube OD | ||||||
| 0.095" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 00000 |
| 0.095" | 3/4"-16 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 00000 |
| 0.12" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 9/16" | 000000000 | 00000 |
| 0.12" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
For 1 3/8" Tube OD | ||||||
| 0.095" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 9/16" | 000000000 | 00000 |
| 0.095" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
| 0.12" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 9/16" | 000000000 | 00000 |
| 0.12" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
For 1 1/2" Tube OD | ||||||
| 0.095" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 9/16" | 000000000 | 00000 |
| 0.095" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
| 0.12" | 3/4"-16 | 2" | Partially Threaded | 1 7/8" | 000000000 | 00000 |
| 0.12" | 7/8"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.25" | 3/4"-16 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.25" | 7/8"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
For 1 3/4" Tube OD | ||||||
| 0.12" | 3/4"-16 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.12" | 1"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.12" | 7/8"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.12" | 1 1/4"-12 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.25" | 3/4"-16 | 2" | Partially Threaded | 1 7/8" | 000000000 | 00000 |
| 0.25" | 1"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.25" | 7/8"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
For 2" Tube OD | ||||||
| 0.25" | 1 1/4"-12 | 3 1/4" | Fully Threaded | 3 1/4" | 000000000 | 00000 |
Left-Hand Threaded Tube-End Weld Nuts
Use these tube-end nuts with left-hand threaded fasteners. You can weld them to round uncoated metal tubes to attach threaded parts, such as rod ends. Also known as tube adapters and weldable threaded tube ends.
For technical drawings and 3-D models, click on a part number.
| For Tube Wall Thick. | Thread Size | Ht. | Threading | Thread Lg. | Each | |
4130 Alloy Steel | ||||||
|---|---|---|---|---|---|---|
For 3/8" Tube OD | ||||||
| 0.058" | 10-32 | 1" | Fully Threaded | 1" | 000000000 | 00000 |
For 1/2" Tube OD | ||||||
| 0.058" | 1/4"-28 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
| 0.058" | 5/16"-24 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
For 5/8" Tube OD | ||||||
| 0.058" | 5/16"-24 | 1" | Partially Threaded | 3/4" | 000000000 | 0000 |
| 0.058" | 3/8"-24 | 1" | Partially Threaded | 3/4" | 000000000 | 0000 |
| 0.058" | 7/16"-20 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
For 3/4" Tube OD | ||||||
| 0.058" | 5/16"-24 | 1" | Partially Threaded | 3/4" | 000000000 | 0000 |
| 0.058" | 3/8"-24 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
| 0.058" | 7/16"-20 | 1" | Fully Threaded | 1" | 000000000 | 0000 |
| 0.065" | 5/16"-24 | 1 3/8" | Partially Threaded | 7/8" | 000000000 | 0000 |
| 0.065" | 3/8"-24 | 1 3/8" | Partially Threaded | 15/16" | 000000000 | 0000 |
| 0.065" | 7/16"-20 | 1 3/8" | Partially Threaded | 1 1/8" | 000000000 | 0000 |
For 7/8" Tube OD | ||||||
| 0.058" | 3/8"-24 | 1 3/8" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.058" | 7/16"-20 | 1 3/8" | Partially Threaded | 1 1/8" | 000000000 | 0000 |
| 0.058" | 1/2"-20 | 1 3/8" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.065" | 3/8"-24 | 1 3/8" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.065" | 7/16"-20 | 1 3/8" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.065" | 1/2"-20 | 1 3/8" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.083" | 3/8"-24 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.083" | 7/16"-20 | 1 1/2" | Partially Threaded | 1 1/8" | 000000000 | 0000 |
| 0.083" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
For 1" Tube OD | ||||||
| 0.058" | 3/8"-24 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.058" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.058" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.065" | 3/8"-24 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.065" | 7/16"-20 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.065" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.065" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.083" | 3/8"-24 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.083" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.083" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.095" | 3/8"-24 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.095" | 7/16"-20 | 1 1/2" | Partially Threaded | 1" | 000000000 | 0000 |
| 0.095" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.095" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
For 1 1/8" Tube OD | ||||||
| 0.058" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.058" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.065" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.065" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.083" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.083" | 3/4"-16 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.095" | 1/2"-20 | 1 1/2" | Partially Threaded | 1 1/4" | 000000000 | 0000 |
| 0.095" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
| 0.095" | 3/4"-16 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 0000 |
For 1 1/4" Tube OD | ||||||
| 0.095" | 5/8"-18 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 00000 |
| 0.095" | 3/4"-16 | 1 1/2" | Fully Threaded | 1 1/2" | 000000000 | 00000 |
| 0.12" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 9/16" | 000000000 | 00000 |
| 0.12" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
For 1 3/8" Tube OD | ||||||
| 0.095" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 9/16" | 000000000 | 00000 |
| 0.095" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
| 0.12" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 9/16" | 000000000 | 00000 |
| 0.12" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
For 1 1/2" Tube OD | ||||||
| 0.095" | 5/8"-18 | 1 7/8" | Partially Threaded | 1 5/8" | 000000000 | 00000 |
| 0.095" | 3/4"-16 | 1 7/8" | Fully Threaded | 1 7/8" | 000000000 | 00000 |
| 0.12" | 3/4"-16 | 2" | Partially Threaded | 1 7/8" | 000000000 | 00000 |
| 0.25" | 3/4"-16 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.25" | 7/8"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
For 1 3/4" Tube OD | ||||||
| 0.12" | 3/4"-16 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.12" | 1"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.12" | 1 1/4"-12 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.25" | 3/4"-16 | 2" | Partially Threaded | 1 7/8" | 000000000 | 00000 |
| 0.25" | 7/8"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
| 0.25" | 1"-14 | 2" | Fully Threaded | 2" | 000000000 | 00000 |
For 2" Tube OD | ||||||
| 0.25" | 1 1/4"-12 | 3 1/4" | Fully Threaded | 3 1/4" | 000000000 | 00000 |
