Solid Rivets with Washer for Soft Material
Installed
The washer creates a large holding surface on the back of the material. Also known as belt rivets, use for fastening conveyor belts or leather. Install in a countersunk hole and the angled head sits flush with the material's surface. These rivets are made of copper, which is electrically conductive, nonmagnetic, and has good corrosion resistance.
Installation requires access to both sides of the material as well as a tool and a hammer.
For technical drawings and 3-D models, click on a part number.
| For Max. Material Thick. | Lg. | Overall Lg. | For Hole Size | For Drill Bit Size | Head Dia. | Head Ht. | Countersink Angle  | Washer Thick. | Material | Pkg. Qty. | Pkg. | |
No. 6—0.2" Dia. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.546" | 0.66" | 0.75" | 0.234" | A | 0.688" | 0.09" | 144° | 0.062" | 110 Copper | 10 | 000000000 | 000000 |
No. 6—0.228" Dia. | ||||||||||||
| 0.796" | 0.91" | 1" | 0.234" | A | 0.688" | 0.09" | 144° | 0.062" | 110 Copper | 5 | 000000000 | 0000 |
| 1.296" | 1.41" | 1.5" | 0.234" | A | 0.688" | 0.09" | 144° | 0.062" | 110 Copper | 5 | 000000000 | 0000 |
No. 7—0.191" Dia. | ||||||||||||
| 0.335" | 0.43" | 0.5" | 0.194" | No. 10 | 0.563" | 0.07" | 144° | 0.056" | 110 Copper | 10 | 000000000 | 0000 |
| 0.46" | 0.555" | 0.625" | 0.194" | No. 10 | 0.563" | 0.07" | 144° | 0.056" | 110 Copper | 10 | 000000000 | 0000 |
| 0.585" | 0.68" | 0.75" | 0.194" | No. 10 | 0.563" | 0.07" | 144° | 0.056" | 110 Copper | 10 | 000000000 | 0000 |
| 0.835" | 0.93" | 1" | 0.194" | No. 10 | 0.563" | 0.07" | 144° | 0.056" | 110 Copper | 10 | 000000000 | 00000 |
| 1.085" | 1.18" | 1.25" | 0.194" | No. 10 | 0.563" | 0.07" | 144° | 0.056" | 110 Copper | 10 | 000000000 | 00000 |
| 1.335" | 1.43" | 1.5" | 0.194" | No. 10 | 0.563" | 0.07" | 144° | 0.056" | 110 Copper | 10 | 000000000 | 00000 |
No. 8—0.181" Dia. | ||||||||||||
| 0.222" | 0.312" | 0.375" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 25 | 000000000 | 00000 |
| 0.347" | 0.437" | 0.5" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 25 | 000000000 | 00000 |
| 0.472" | 0.562" | 0.625" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 25 | 000000000 | 00000 |
| 0.597" | 0.687" | 0.75" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 25 | 000000000 | 00000 |
| 0.722" | 0.812" | 0.875" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 10 | 000000000 | 0000 |
| 0.847" | 0.937" | 1" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 10 | 000000000 | 00000 |
| 1.097" | 1.187" | 1.25" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 10 | 000000000 | 00000 |
| 1.347" | 1.437" | 1.5" | 0.182" | No. 14 | 0.5" | 0.063" | 144° | 0.05" | 110 Copper | 10 | 000000000 | 0000 |
No. 9—0.161" Dia. | ||||||||||||
| 0.237" | 0.317" | 0.375" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 50 | 000000000 | 00000 |
| 0.362" | 0.442" | 0.5" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 50 | 000000000 | 00000 |
| 0.487" | 0.567" | 0.625" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 25 | 000000000 | 00000 |
| 0.612" | 0.692" | 0.75" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 25 | 000000000 | 00000 |
| 0.737" | 0.817" | 0.875" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 25 | 000000000 | 00000 |
| 0.862" | 0.942" | 1" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 25 | 000000000 | 00000 |
| 1.112" | 1.192" | 1.25" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 25 | 000000000 | 00000 |
| 1.362" | 1.442" | 1.5" | 0.166" | No. 19 | 0.469" | 0.058" | 144° | 0.045" | 110 Copper | 25 | 000000000 | 00000 |
No. 10—0.151" Dia. | ||||||||||||
| 0.245" | 0.32" | 0.375" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 25 | 000000000 | 00000 |
| 0.37" | 0.445" | 0.5" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 25 | 000000000 | 00000 |
| 0.495" | 0.57" | 0.625" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 25 | 000000000 | 00000 |
| 0.62" | 0.695" | 0.75" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 25 | 000000000 | 00000 |
| 0.745" | 0.82" | 0.875" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 10 | 000000000 | 0000 |
| 0.87" | 0.945" | 1" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 10 | 000000000 | 0000 |
| 1.12" | 1.195" | 1.25" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 10 | 000000000 | 0000 |
| 1.37" | 1.445" | 1.5" | 0.152" | No. 24 | 0.438" | 0.055" | 144° | 0.041" | 110 Copper | 10 | 000000000 | 0000 |
No. 12—0.137" Dia. | ||||||||||||
| 0.262" | 0.33" | 0.375" | 0.138" | 3.5 mm | 0.375" | 0.045" | 144° | 0.033" | 110 Copper | 50 | 000000000 | 00000 |
| 0.387" | 0.455" | 0.5" | 0.138" | 3.5 mm | 0.375" | 0.045" | 144° | 0.033" | 110 Copper | 25 | 000000000 | 0000 |
| 0.512" | 0.58" | 0.625" | 0.138" | 3.5 mm | 0.375" | 0.045" | 144° | 0.033" | 110 Copper | 25 | 000000000 | 0000 |
| 0.637" | 0.705" | 0.75" | 0.138" | 3.5 mm | 0.375" | 0.045" | 144° | 0.033" | 110 Copper | 25 | 000000000 | 00000 |
| 0.887" | 0.955" | 1" | 0.138" | 3.5 mm | 0.375" | 0.045" | 144° | 0.033" | 110 Copper | 25 | 000000000 | 00000 |
| 1.137" | 1.205" | 1.25" | 0.138" | 3.5 mm | 0.375" | 0.045" | 144° | 0.033" | 110 Copper | 25 | 000000000 | 00000 |
| 1.387" | 1.455" | 1.5" | 0.138" | 3.5 mm | 0.375" | 0.045" | 144° | 0.033" | 110 Copper | 10 | 000000000 | 0000 |
Tools for Solid Rivets with Washer

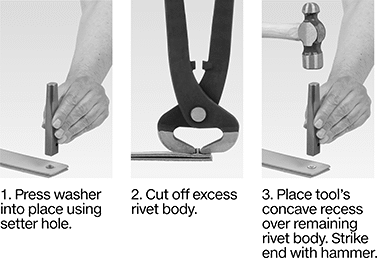

Set solid copper rivets with washer (also known as belt rivets) using one of these tools and a hammer. Press the washer into place, then strike the end of the tool to clinch the back of the rivet tight with the washer.
| For Rivet Size | For Rivet Dia. | For Rivet Material | Setter Hole Dia. | Lg. | Material | Each | |
| No. 3 | 0.28"-0.307" | Copper | 0.312" | 4 1/2" | Steel | 0000000 | 000000 |
| No. 4, No. 5 | 0.233"-0.275" | Copper | 0.281" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 6 | 0.212"-0.229" | Copper | 0.234" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 7 | 0.19"-0.209" | Copper | 0.213" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 8 | 0.165"-0.187" | Copper | 0.191" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 9, No. 10 | 0.148"-0.163" | Copper | 0.166" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 11 | 0.14"-0.146" | Copper | 0.149" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 12 | 0.124"-0.138" | Copper | 0.14" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 13 | 0.108"-0.123" | Copper | 0.125" | 4 1/2" | Steel | 0000000 | 00000 |
| No. 14 | 0.098"-0.107" | Copper | 0.109" | 4 1/2" | Steel | 0000000 | 00000 |
