Portable Workbenches
Fold the legs and use the handle to carry these workbenches with one hand. Push a button on the legs to lower the height 12" for use as a work platform. With the legs folded, the workbench rolls on casters to function as a dolly or creeper.
The reversible top is plastic on one side and composite wood on the other side. It has an outlet strip with three outlets.
Top | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Ctr.-to-Ctr. Adjustments | O'all Cap., lbs. | Material | Color | Thick. | Cap., lbs. | Frame Material | Wheel Configuration | Assembled or Unassembled | Each | |
| 37 1/2" | 18" | 4 3/4"-30 3/4" | 12" | 500 | Composite Wood, Plastic | Orange | 1/2" | 500 | Aluminum | Two Swivel and Two Rigid Casters | Assembled | 0000000 | 0000000 |
Adjustable-Height Workbenches

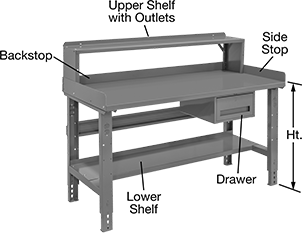

 Shown with Optional Accessories |  Composite Wood Top |
 Composite Wood-Over-Steel Top |
Choose a workbench and then add any of the optional accessories. Keyhole slots in the legs allow you to adjust the height of these workbenches in 1 1/2" increments. All workbenches come with a support brace and have legs with knockouts in the front and back to accept duplex electrical outlets.
Composite wood tops are nonconductive as well as impact and chemical resistant. They can be sanded and refinished.
Composite wood-over-steel tops are splinter, warp, and moisture resistant.
Optional backstop and side stops keep items from sliding off.
Optional drawers mount under the work surface. They have a keyed lock installed and come with two keys. Add a mounting kit to mount drawers to workbenches with plain steel tops.
Optional lower shelves provide additional storage space.
Optional upper shelves have a 1 1/2" backstop. Shelves with eight outlets include a power switch and circuit breaker.
Adjustments | Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | Ctr.-to-Ctr. | Type | O'all Cap., lbs. | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Composite Wood | 29 3/4"-37 1/4" | 1 1/2" | Keyhole Slots | 1,250 | 1 3/4" | 1,250 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
| Composite Wood Over Steel | 29 1/2"-37" | 1 1/2" | Keyhole Slots | 2,500 | 1 11/16" | 2,500 | Powder-Coated Steel | 4 | No | Unassembled | 0000000 | 000000 |
Adjustments | Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | Ctr.-to-Ctr. | Type | O'all Cap., lbs. | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Composite Wood | 29 3/4"-37 1/4" | 1 1/2" | Keyhole Slots | 1,500 | 1 3/4" | 1,500 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
| Composite Wood Over Steel | 29 1/2"-37" | 1 1/2" | Keyhole Slots | 1,800 | 1 11/16" | 1,800 | Powder-Coated Steel | 4 | No | Unassembled | 0000000 | 000000 |
Adjustments | Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | Ctr.-to-Ctr. | Type | O'all Cap., lbs. | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Composite Wood | 29 3/4"-37 1/4" | 1 1/2" | Keyhole Slots | 1,800 | 1 3/4" | 1,800 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
| Composite Wood Over Steel | 29 1/2"-37" | 1 1/2" | Keyhole Slots | 1,800 | 1 11/16" | 1,800 | Powder-Coated Steel | 4 | No | Unassembled | 0000000 | 000000 |
O'all | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Top Wd. | Wd. | Dp. | Ht. | Material | Color | Gauge | Cap., lbs. | Mounting Fasteners Included | Assembled or Unassembled | Each | |
Shelves | |||||||||||
| 60" | 60" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 0000000 |
| 72" | 72" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
Shelves with Eight Outlets | |||||||||||
| 60" | 60" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
| 72" | 72" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
Workbenches
Choose a workbench and then add any of the optional accessories. All workbenches come with a support brace and have legs with knockouts in the front and back to accept duplex electrical outlets.
Composite wood-over-steel tops are splinter, warp, and moisture resistant.
Optional backstop and side stops keep items from sliding off.
Optional drawers mount under the work surface. They have a keyed lock installed and come with two keys.
Optional lower shelves provide additional storage space.
Optional upper shelves have a 1 1/2" backstop. Shelves with eight outlets include a power switch and circuit breaker.
For technical drawings and 3-D models, click on a part number.
Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | O'all Cap., lbs. | Color | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Composite Wood Over Steel | 33 3/4" | 2,500 | Brown | 1 11/16" | 2,500 | Powder-Coated Steel | 4 | No | Unassembled | 0000000 | 0000000 |
Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | O'all Cap., lbs. | Color | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Composite Wood Over Steel | 33 3/4" | 1,800 | Brown | 1 11/16" | 1,800 | Powder-Coated Steel | 4 | No | Unassembled | 0000000 | 0000000 |
Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | O'all Cap., lbs. | Color | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Composite Wood Over Steel | 33 3/4" | 1,800 | Brown | 1 11/16" | 1,800 | Powder-Coated Steel | 4 | No | Unassembled | 0000000 | 0000000 |
O'all | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Top Wd. | Wd. | Dp. | Ht. | Material | Color | Gauge | Cap., lbs. | Mounting Fasteners Included | Assembled or Unassembled | Each | |
Shelves | |||||||||||
| 60" | 60" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 0000000 |
| 72" | 72" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
Shelves with Eight Outlets | |||||||||||
| 60" | 60" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
| 72" | 72" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
Cabinet Workbenches
These workbenches range in size from 32"-42" wide. All doors and drawers can be locked.
Composite wood tops are nonconductive as well as chemical and impact resistant.
Workbenches | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Shelves | Drawers | Replacement Keyed Handles | |||||||||||||||
| Style | Wd. | Dp. | Ht. | Backstop Ht. | O'all Cap., lbs. | Top Cap., lbs. | No. of | Type | Cap., lbs. | No. of | Wd. | Dp. | Ht. | Each | Each | ||
Mobile—Assembled | |||||||||||||||||
Brown Composite Wood Top with Gray Powder-Coated Steel Frame | |||||||||||||||||
| E | 42" | 24" | 34" | 3" | 800 | 800 | 2 | Adjustable | 150 | __ | __ | __ | __ | 0000000 | 0000000 | 0000000 | 000000 |
| F | 42" | 24" | 34" | 3" | 800 | 800 | 2 | Adjustable | 150 | 1 | 18" | 23" | 4 1/2" | 0000000 | 000000 | 0000000 | 00000 |
| H | 42" | 24" | 34" | 3" | 800 | 800 | 1 | Adjustable | 150 | 5 | 18" | 23" | 4 1/2" | 0000000 | 00000000 | 0000000 | 00000 |
Heavy Duty Tables
Welded for strength and stability, these tables support 3,000 to 5,500 lbs. Use them as a work surface for machines and equipment.
30" high tables are standard table height. 34" and 36" high tables are the same height as most workbenches, making them a comfortable height for most standing tasks.
Composite wood tables are nonconductive as well as impact and chemical resistant. They can be sanded and refinished. Composite wood-over-steel tables resist impact, moisture, splintering, and warping.
Capacity, lbs. | Top | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Top | Overall | Top Material | Color | Thick. | Mounting Fasteners Included | No. of | Dia. | Each | |
| 30" | 18" | 24" | 4,000 | 4,000 | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 0000000 | 0000000 |
| 30" | 24" | 36" | 4,000 | 4,000 | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 0000000 | 000000 |
| 36" | 18" | 24" | 4,000 | 4,000 | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 0000000 | 000000 |
| 36" | 24" | 36" | 4,000 | 4,000 | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 0000000 | 000000 |
Capacity, lbs. | Shelves | Top | Mounting Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Top | Shelf | Drawer | Overall | Type | Dp. | Top Material | Color | Thick. | Mounting Fasteners Included | No. of | Dia. | Each | |
| 30" | 18" | 24" | 3,650 | 250 | 100 | 4,000 | Fixed | 22" | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 00000000 | 0000000 |
| 30" | 24" | 36" | 3,650 | 250 | 100 | 4,000 | Fixed | 34" | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 00000000 | 000000 |
| 36" | 18" | 24" | 3,650 | 250 | 100 | 4,000 | Fixed | 22" | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 00000000 | 000000 |
| 36" | 24" | 36" | 3,650 | 250 | 100 | 4,000 | Fixed | 34" | Vinyl Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | 00000000 | 000000 |
Capacity, lbs. | Top | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Top | Overall | Top Material | Color | Thick. | Mounting Fasteners Included | No. of | Dia. | Each | |
| 36" | 48" | 24" | 5,000 | 5,000 | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 0000000 |
| 36" | 48" | 30" | 5,000 | 5,000 | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
| 36" | 60" | 36" | 4,500 | 4,500 | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
| 36" | 72" | 36" | 4,000 | 4,000 | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
| 36" | 84" | 36" | 3,000 | 3,000 | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
Capacity, lbs. | Shelves | Top | Mounting Holes | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Top | Shelf | Overall | Type | Dp. | Top Material | Color | Thick. | Mounting Fasteners Included | No. of | Dia. | Each | |
| 36" | 48" | 24" | 5,000 | 500 | 5,500 | Fixed | 12" | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 0000000 |
| 36" | 48" | 30" | 5,000 | 500 | 5,500 | Fixed | 15" | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
| 36" | 60" | 36" | 4,500 | 500 | 5,000 | Fixed | 18" | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
| 36" | 72" | 36" | 4,000 | 500 | 4,500 | Fixed | 18" | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
| 36" | 84" | 36" | 3,000 | 500 | 3,500 | Fixed | 18" | Composite Wood Over Steel | Brown | 1/4" | No | 4 | 9/16" | 0000000 | 000000 |
Wood-Top Tables
The wood top on these tables is nonconductive, resists impact, and can be sanded and refinished. Use them as a work surface for machines and equipment.
30" and 32" high tables are standard table height. 35" and 36" high tables are the same height as most workbenches, making them a comfortable height for most standing tasks.
Composite wood tables resist stains, oil, and chemicals.
Capacity, lbs. | Top | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Ht. | Wd. | Dp. | Top | Shelf | Drawer | O'all | Material | Thick. | Foot Type | Assembled or Unassembled | Each | |
Mobile | |||||||||||||
| A | 30" | 18" | 24" | 1,000 | __ | __ | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 0000000 |
| A | 30" | 24" | 36" | 1,000 | __ | __ | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 000000 |
| A | 36" | 18" | 24" | 1,000 | __ | __ | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 000000 |
| A | 36" | 24" | 36" | 1,000 | __ | __ | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 000000 |
| B | 30" | 18" | 24" | 650 | 250 | 100 | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 000000 |
| B | 30" | 24" | 36" | 650 | 250 | 100 | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 000000 |
| B | 36" | 18" | 24" | 650 | 250 | 100 | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 000000 |
| B | 36" | 24" | 36" | 650 | 250 | 100 | 1,000 | Vinyl-Coated Composite Wood | 1 3/4" | Caster | Assembled | 00000000 | 000000 |
Low-Profile Composite-Wood-Top Tables
The wood top is nonconductive as well as impact and chemical resistant. It can be sanded and refinished. Use these tables to elevate machinery and equipment 24" from the floor.
Capacity, lbs. | Top | Mounting Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Top | Shelf | Drawer | Overall | Material | Color | Thick. | Mounting Fasteners Included | No. of | Dia. | Assembled or Unassembled | Each | |
Stationary | |||||||||||||||
| 24" | 18" | 24" | 4,000 | __ | __ | 4,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | Assembled | 0000000 | 0000000 |
| 24" | 24" | 36" | 4,000 | __ | __ | 4,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | Assembled | 0000000 | 000000 |
Stationary with Shelf and Drawer | |||||||||||||||
| 24" | 18" | 24" | 3,650 | 250 | 100 | 4,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | Assembled | 00000000 | 000000 |
| 24" | 24" | 36" | 3,650 | 250 | 100 | 4,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | No | 4 | 3/8" | Assembled | 00000000 | 000000 |
Mobile | |||||||||||||||
| 24" | 18" | 24" | 1,000 | __ | __ | 1,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | __ | __ | __ | Assembled | 00000000 | 000000 |
| 24" | 24" | 36" | 1,000 | __ | __ | 1,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | __ | __ | __ | Assembled | 00000000 | 000000 |
Mobile with Shelf and Drawer | |||||||||||||||
| 24" | 18" | 24" | 650 | 250 | 100 | 1,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | __ | __ | __ | Assembled | 00000000 | 000000 |
| 24" | 24" | 36" | 650 | 250 | 100 | 1,000 | Vinyl-Coated Composite Wood | Brown | 1 3/4" | __ | __ | __ | Assembled | 00000000 | 000000 |
