L-Handle Multipoint Latches
Use these latches alone for single-point latching. Add latch kits (sold separately) for multiple-point latching and extra holding power.
Multiple-point latch kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
For technical drawings and 3-D models, click on a part number.

Handle | Straight Cam | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thick. | For Door Ht. | For Through Hole Dia. | Latching Distance Range | Lg. | Projection | Rear Projection | Lg. | Wd. | Mount. Fasteners Included | For Use On | Each | |
Quarter-Turn Clockwise to Open | ||||||||||||
Through-Hole Mount | ||||||||||||
Zinc-Plated Steel with Chrome-Plated Steel Handle—Polished | ||||||||||||
1/8" | 20" - 118" | 13/16" | 5/8" - 3/4" | 4 7/16" | 1 9/16" | 1 1/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | 0000000 | 000000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 1/4" | 4 7/16" | 1 9/16" | 1 3/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | 0000000 | 00000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 3/4" | 4 7/16" | 1 9/16" | 2 1/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | 0000000 | 00000 |
Quarter-Turn Counterclockwise to Open | ||||||||||||
Through-Hole Mount | ||||||||||||
Zinc-Plated Steel with Chrome-Plated Steel Handle—Polished | ||||||||||||
1/8" | 20" - 118" | 13/16" | 5/8" - 3/4" | 4 7/16" | 1 9/16" | 1 1/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | 0000000 | 00000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 1/4" | 4 7/16" | 1 9/16" | 1 3/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | 0000000 | 00000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 3/4" | 4 7/16" | 1 9/16" | 2 1/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | 0000000 | 00000 |
Rod | Mounting | Mounting Holes | |||||||
---|---|---|---|---|---|---|---|---|---|
Material | Diameter | Length | Guide Material | Fasteners Included | Screw Size | Diameter | Number of | Each | |
Aluminum | 0.281" | 36" | Steel | No | M5 | 0.203" | 4 | 00000000 | 000000 |
L-Handle Keyed Multipoint Locks
Choose these L-handle locks if you need several that open with the same key. Use them for single-point latching, or add latch kits (sold separately) for multiple-point latching to create additional holding power.
Multiple-point latch kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
For technical drawings and 3-D models, click on a part number.

Handle | Straight Cam | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thick. | For Door Ht. | For Through Hole Dia. | Latching Distance Range | Lg. | Projection | Rear Projection | Lg. | Wd. | Mount. Fasteners Included | Key Number | For Use On | Each | |
Quarter-Turn Clockwise to Open | |||||||||||||
Through-Hole Mount | |||||||||||||
Zinc-Plated Steel with Chrome-Plated Steel Handle—Polished | |||||||||||||
1/8" | 20" - 118" | 13/16" | 5/8" - 3/4" | 4 7/16" | 1 9/16" | 1 1/4" | 1 1/2" | 1/2" | Yes | CH751 | Metal, Plastic, Wood | 0000000 | 000000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 1/4" | 4 7/16" | 1 9/16" | 1 3/4" | 1 1/2" | 1/2" | Yes | CH751 | Metal, Plastic, Wood | 0000000 | 00000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 3/4" | 4 7/16" | 1 9/16" | 2 1/4" | 1 1/2" | 1/2" | Yes | CH751 | Metal, Plastic, Wood | 0000000 | 00000 |
Quarter-Turn Counterclockwise to Open | |||||||||||||
Through-Hole Mount | |||||||||||||
Zinc-Plated Steel with Chrome-Plated Steel Handle—Polished | |||||||||||||
1/8" | 20" - 118" | 13/16" | 5/8" - 3/4" | 4 7/16" | 1 9/16" | 1 1/4" | 1 1/2" | 1/2" | Yes | CH751 | Metal, Plastic, Wood | 0000000 | 00000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 1/4" | 4 7/16" | 1 9/16" | 1 3/4" | 1 1/2" | 1/2" | Yes | CH751 | Metal, Plastic, Wood | 0000000 | 00000 |
1/8" | 20" - 118" | 13/16" | 5/8" - 1 3/4" | 4 7/16" | 1 9/16" | 2 1/4" | 1 1/2" | 1/2" | Yes | CH751 | Metal, Plastic, Wood | 0000000 | 00000 |
Rod | Mounting | Mounting Holes | |||||||
---|---|---|---|---|---|---|---|---|---|
Material | Diameter | Length | Guide Material | Fasteners Included | Screw Size | Diameter | Number of | Each | |
Aluminum | 0.281" | 36" | Steel | No | M5 | 0.203" | 4 | 00000000 | 000000 |
Key Number | Each | |
CH751 | 0000000 | 00000 |
L-Handle Padlockable Multipoint Latches

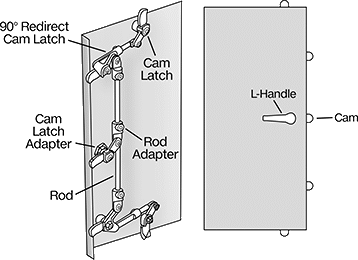

Design a latching system that fastens doors at multiple points—for extra security, these L-handle latches have a spot for a padlock. The L-handle latch acts as your base. Then add the included cam latch adapter to connect to additional latch points. For each new latch point, you need an inline or 90° cam latch, a rod, and two rod adapters. Weld cam latches to the inside of your enclosure door. These L-handle latches come with multiple cams, so you can change their fixed latching distance.
Inline cam latches come with multiple cams to accommodate different latching distances.
Inline roller cam latches rotate more smoothly than standard inline cam latches, making them easier to open and close. The cam won’t scratch or flake enclosure surfaces to protect electronics inside from paint or metal chips. Good for jobs when precise distances are unknown, they have an adjustable latching distance. Adjust the position of the cam before installing.
90° redirect cam latches mount to corners, so you can add latch points to the top or bottom of your door. To accommodate different latching distances, they come with multiple cams.
Rods connect latches to each other. Cut them to the length you need.
Rod adapters connect rods to latches. You need one for each rod end.
For technical drawings and 3-D models, click on a part number.

Handle | Straight Cam | Offset Cam | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thick. | Latching Distance | For Through Hole Dia. | Lg. | Wd. | Projection | For Max. Padlock Shackle Dia. | Lg. | Wd. | Lg. | Wd. | Mounting Fasteners Included | Retaining Ring Included | Each | |
Black Powder-Coated Zinc | ||||||||||||||
Quarter-Turn Clockwise to Open or Quarter-Turn Counterclockwise to Open | ||||||||||||||
5/16" | 5/16", 11/16", 1 1/8" | 7/8" | 4 1/8" | 1 5/16" | 1 1/2" | 3/8" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | Yes | Yes | 0000000 | 000000 |
Chrome-Plated Zinc—Polished | ||||||||||||||
Quarter-Turn Clockwise to Open or Quarter-Turn Counterclockwise to Open | ||||||||||||||
5/16" | 5/16", 11/16", 1 1/8" | 7/8" | 4 1/8" | 1 5/16" | 1 1/2" | 3/8" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | Yes | Yes | 0000000 | 00000 |
316 Stainless Steel—Polished | ||||||||||||||
Quarter-Turn Clockwise to Open or Quarter-Turn Counterclockwise to Open | ||||||||||||||
5/16" | 5/16", 11/16", 1 1/8" | 7/8" | 4 1/8" | 1 5/16" | 1 1/2" | 3/8" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | Yes | Yes | 0000000 | 00000 |

Through Hole Dia. | For Min. Rear Projection | Retaining Ring Included | Each | |
Zinc | ||||
---|---|---|---|---|
Quarter-Turn Clockwise to Open or Quarter-Turn Counterclockwise to Open | ||||
5/16" | 5/8" | Yes | 0000000 | 00000 |

Straight Cam | Offset Cam | Mounting | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Latching Distance | For Through Hole Dia. | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |
Zinc—Polished | ||||||||||
Quarter-Turn Clockwise to Open or Quarter-Turn Counterclockwise to Open | ||||||||||
1/4", 5/8", 1" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 0000000 | 000000 |

Roller Cam | Mounting | |||||||
---|---|---|---|---|---|---|---|---|
Latching Distance | For Through Hole Dia. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |
Zinc—Polished | ||||||||
Quarter-Turn Clockwise to Open or Quarter-Turn Counterclockwise to Open | ||||||||
13/16"-1" | 5/16" | 2 7/16" | 11/16" | No | M6 | Yes | 0000000 | 000000 |


Side, Top Left
Side Door Mount
Straight Cam | Offset Cam | Mounting | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | Latching Distance | For Through Hole Dia. | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |
Zinc—Polished | |||||||||||
Quarter-Turn Clockwise to Open or Quarter-Turn Counterclockwise to Open | |||||||||||
Bottom Left Side, Top Right Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 0000000 | 000000 |
Bottom Right Side, Top Left Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 0000000 | 00000 |

Set Screw | ||||||
---|---|---|---|---|---|---|
For Rod Dia. | Drive Style | Included | Drive Size | Retaining Ring Included | Each | |
Zinc | ||||||
5/16" | Hex | Yes | 3 mm | No | 0000000 | 00000 |
L-Handle Padlockable Multipoint Latches for Heavy Doors

Side, top, and bottom latching points secure large, heavy doors that are subject to strenuous use, such as those on trucks and large access doors. This padlockable latch has two handles; an outside handle with a spindle that mounts through the door and an inside safety-release handle that opens the latch even if the outside handle is locked. It has a straight cam for side latching. For top and bottom latching, rods connect the top and bottom slide bolts. Use a hacksaw to cut rods and spindle to size. Select the turn direction of the latch when mounting the cam.
Handle | Mounting Hole Ctr.-to-Ctr. | Mounting | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thick. | For Door Ht. | Latching Distance | For Through Hole Dia. | Lg. | Proj. | Inside Lg. | Rear Proj. | For Max. Padlock Shackle Dia. | Straight Cam Lg. | Handle Plate | Latch Plate | Fasteners Included | Screw Size | For Use On | Each | |
Through-Hole Mount | ||||||||||||||||
Zinc-Plated Steel—Dull | ||||||||||||||||
5" | 27"-90" | 1 1/2" | 7/8" | 7 1/2" | 2 1/4" | 9 1/4" | 2 3/8" | 7/16" | 3 1/16" | 7 3/8", 1 1/4" | 3 1/8", 2 3/4" | No | 1/4" | Metal | 0000000 | 0000000 |
L-Handle Keyed Multipoint Locks for Heavy Doors

Choose this keyed alike lock if you need several that open with the same key. Side, top, and bottom latching points secure large, heavy doors that are subject to strenuous use, such as those on trucks and large access doors. The lock has two handles; an outside handle with a spindle that mounts through the door and an inside safety-release handle that opens the latch even if the outside handle is locked. It has a straight cam for side latching. For top and bottom latching, rods connect the top and bottom slide bolts. Use a hacksaw to cut rods and spindle to size. Select the turn direction of the lock when mounting the cam.
Handle | Mounting Hole Ctr.-to-Ctr. | Mounting | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thick. | For Door Ht. | Latching Distance | For Through Hole Dia. | Lg. | Proj. | Inside Lg. | Rear Proj. | Straight Cam Lg. | Handle Plate | Latch Plate | Fasteners Included | Screw Size | Key Number | No. of Keys Included | For Use On | Each | |
Through-Hole Mount | |||||||||||||||||
Zinc-Plated Steel—Dull | |||||||||||||||||
5" | 27"-90" | 1 1/2" | 7/8" | 7 1/2" | 2 1/4" | 9 1/4" | 2 3/8" | 3 1/16" | 7 3/8", 1 1/4" | 3 1/8", 2 3/4" | No | 1/4" | 1250 | 2 | Metal | 0000000 | 0000000 |
