Benchtop Microscopes with Digital Imaging

Don’t strain your eyes and neck bending over your microscope—these microscopes display a magnified image on a computer screen and take high-resolution photos. Just connect the microscope to your PC with a USB cable (not included). Because you can view on a screen, multiple people can see what’s under the microscope at the same time. They include the traditional 10X magnifying eyepiece and a 6-megapixel camera that zooms in to a variety of magnifications.
With hands-free viewing, you’re able to inspect details, record observations, and modify the object you’re observing. Use the included software to measure lines, circles, and angles of the item you’re viewing—the software stores your measurements too. A built-in LED ring light creates ultra-bright, shadow-free light, so you don't need an external light source. The light can also be adjusted to reduce glare on reflective objects.
Base | Light | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Viewable Dia. | Viewing Angle | Focus Type | Image Direction | Working Distance | Arm Type | Lg. | Wd. | Ht. | Eyepiece Dia. | Housing Material | Voltage | Plug Type | Cord Lg., ft. | Each | |
6.7X to 50X | 1.35" @ 6.7 X 0.14" @ 50 X | 45° | Adjustable | Standard | 4 1/2" | Fixed | 11 1/8" | 8 3/4" | 11 5/32" | 1 5/32" | Aluminum | 120V AC | Two Prong | 5 | 00000000 | 000000000 |
Benchtop Microscopes with Measuring Scale

Precisely measure while magnifying, these adjustable-focus microscopes have an internal scale. There is a penlight mounted on the base to enhance your view.
Scale | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Viewable Diameter | Focus Type | Measuring Range | Graduations | Image Direction | Base Dia. | Ht. | Eyepiece Dia. | Housing Material | Batteries Included | Each | |
50X | 0.141" @ 50 X | Adjustable | 0.1mm-10mm | 0.1mm | Standard | 2 1/2" | 8 9/32" | 23/32" | Aluminum | Yes | 0000000 | 0000000 |
100X | 0.07" @ 100 X | Adjustable | 0.1mm-10mm | 0.1mm | Standard | 2 1/2" | 8 9/32" | 23/32" | Aluminum | Yes | 0000000 | 000000 |
Adjustable-Arm Benchtop Microscopes

Reposition these microscopes without moving the base. The head rotates 360°. They’re safe to use where electrostatic discharge (ESD) is a concern.
Use with both objective lenses and eyepieces to increase magnification up to 225X.
Microscope illuminators add 360° of shadow-free light.
Magnification | Viewable Diameter | Viewing Angle | Focus Type | Image Direction | Lg. | Wd. | Ht. | Eyepiece Dia. | Housing Material | Includes | Each | |
7X to 45X | 1.236" @ 7 X 0.193" @ 45 X | 45° | Adjustable | Standard | 31" | 10" | 22" | 0.87" | Metal | 0.5X Auxilliary Objective Lens, 10X Eyepiece (Pair) | 00000000 | 000000000 |
Benchtop Microscopes

Illuminate your sample from above, below, or both—these microscopes have an upper and lower light that you can turn on together or separately. They’re safe to use where electrostatic discharge (ESD) is a concern.
Use with both objective lenses and eyepieces to increase magnification up to 225X.
Microscope illuminators give 360° of additional shadow-free light.
Microscopes | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Light | Replacement Lower Bulbs | Replacement Upper Bulbs | ||||||||||||||||||
Magnification | Viewable Diameter | Viewing Angle | Head Rotation Angle | Focus Type | Image Direction | Arm Type | Lg. | Wd. | Ht. | Eyepiece Dia. | Housing Material | Voltage | Plug Type | Cord Lg., ft. | Each | Each | Each | |||
7X to 45X | 1.236" @ 7 X 0.193" @ 45 X | 45° | 360° | Adjustable | Standard | Fixed | 11" | 7" | 18" | 0.87" | Metal | 120V AC | Three Prong | 5 | 00000000 | 000000000 | 00000000 | 000000 | 00000000 | 000000 |
Portable Benchtop Video Microscopes with Built-In Monitor

View images and video of extra-small details right from your manufacturing floor without needing an outlet nearby. Great for collaboration, the monitor on these microscopes is big enough for multiple people to see. For larger groups, connect an additional monitor with an HDMI cord (not included) to show what’s under the lens on two screens at once. To save what you’re seeing for later, you can store high-resolution photos and video on the microSD card or transfer it directly to a computer with a USB cord (not included). Use the included computer software to measure lines, circles, and angles of the item you’re viewing—the software stores your measurements too.
A built-in LED ring light creates ultra-bright, shadow-free light, so you don't need an external light source. The light can also be adjusted to reduce glare on reflective objects.
Switch out the stand these microscopes come with to change how they move or mount. Gooseneck stands bend any which way, making them easier to position than adjustable stands. Adjustable stands work well if you need to pivot your microscope side to side.
Diffusers (sold separately) make the light from the LED ring softer and more even.
Stages (sold separately) move up and down, left to right, and spin 360° to help scan and inspect parts of an object under your microscope. Use the knob to move the stage in smooth, precise movements. The stage is compact, so it’s easy to add to your existing set up and remove it when not in use.
Base | Display | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Field of View | Viewing Angle | Focus Type | Image Direction | Working Distance | Arm Type | Lg. | Wd. | Ht. | Screen Resolution | Type | Size | Batteries Included | Battery Charger Included | Each | |
LED | ||||||||||||||||
8X to 25X | 0.641" @ 8 X 0.207" @ 25 X | 45° | Adjustable | Standard | 1 3/4"-3 3/4" | Adjustable | 8" | 7 1/2" | 9" | 1920 × 1080 | LCD | 5" | Yes | Yes | 0000000 | 0000000 |

Each | ||
0000000 | 0000000 |

Features | Maximum X-Axis Travel | Maximum Y-Axis Travel | Each | |
360° Rotation, Gliding Stage | 2 3/4" | 1 3/16" | 0000000 | 0000000 |
Benchtop Video Microscopes with Built-In Monitor

View a live feed of extreme details—from pores in raw materials to connection points on finished parts—right on the screen of these microscopes. These microscopes have an LCD monitor that’s big enough for multiple people to see, making them great for collaboration. For larger groups, connect an additional monitor with an HDMI cord (not included) to show what’s under the lens on two screens at once. With the built-in camera, snap high-resolution photos and record video. These microscopes come with software you can use to measure lines, diameters, and angles of the item you’re viewing on the monitor. Use the included USB flash drive to save photos, videos, and measurements for later or transfer everything to a computer.
A built-in LED ring light creates ultra-bright, shadow-free light, so you don't need an external light source. The light can also be adjusted to reduce glare on reflective objects.
Angle view attachments have a 35° mirror that lets you view items at an angle instead of only from directly above. This is especially useful for circuit boards and other parts with layers. They mount to the microscope lens and can be rotated 360° to change the viewing angle.
Objective lenses increase or reduce the range of magnification. 0.5X lenses decrease the magnification by half to 8.5X to 55X. 2X lenses double the magnification to 34X to 220X.
Switch out the stand for one that lets you glide the microscope across the object you’re inspecting. These optional stands require a mount (sold separately).
Base | Display | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Field of View | Viewing Angle | Focus Type | Image Direction | Working Distance | Arm Type | Lg. | Wd. | Ht. | Screen Resolution | Type | Size | Includes | Each | |
LED | |||||||||||||||
17X to 110X | 21.278" @ 17 X 3.176" @ 110 X | 35° | Adjustable | Standard | 3 7/8" | Adjustable | 12 3/4" | 10 1/4" | 13" | 1920 × 1080 | LCD | 11.6" | Remote Control | 0000000 | 000000000 |

Rotation Range of Motion | Each | |
360° | 0000000 | 0000000 |

Base | |||||
---|---|---|---|---|---|
Arm Type | Lg. | Wd. | Ht. | Each | |
Adjustable | 15" | 10 1/2" | 13 1/2" | 0000000 | 0000000 |

Mount Type | Each | |
Slide On | 0000000 | 0000000 |
Microscope Illuminators

Shine 360° of shadow-free light on objects under microscopes to make defects more visible during inspections. The even lighting these illuminators produce reduces glare and creates strong visual contrast between small components, such as parts on circuit boards.
LED illuminators use less energy, produce less heat, and last longer than fluorescent illuminators. Ultraviolet LED illuminators expose defects such as cracks and holes in parts when used with fluorescent dye or powder. They’re often used for leak detection and quality control testing.
ESD-safe illuminators have a coating that dissipates static electricity, preventing damage if they make contact with sensitive components during inspections.
Illuminators and replacement bulbs that cannot be sold to the listed areas are restricted by local regulatory limits on mercury content.
Illuminators | Replacement Bulbs | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bulb Life, hrs. | Light Setting | Light Intensity Adjustment Range | Light Appearance | Lg. | ID | OD | Voltage | Frame Color | Plug Type | Cord Lg., ft. | Features | Cannot Be Sold To | Each | Each | ||
Fluorescent | ||||||||||||||||
7,500 | Not Dimmable | __ | Daylight (6,500K) | 5 1/2" | 2.35" | 3 1/2" | 120V AC | White | Three Prong | 8 | __ | Canada, CA, CO, OR, RI | 00000000 | 0000000 | 00000000 | 0000000 |
LED | ||||||||||||||||
40,000 | Dimmable | 5%-100% | Daylight (6,500K) | 5 1/4" | 2.35" | 4" | 120V AC | Black | Two Prong | 6 | __ | __ | 000000000 | 000000 | 000000 | 00 |
50,000 | Dimmable | 5%-100% | Cool (5,000K) | 5 1/2" | 2.35" | 3 1/2" | 120V AC | White | Three Prong | 12 | ESD (Electrostatic Discharge) Safe | __ | 00000000 | 000000 | 000000 | 00 |
Ultraviolet LED | ||||||||||||||||
50,000 | Dimmable | 5%-100% | __ | 5 1/2" | 2.35" | 4" | 120V AC | Black | Three Prong | 11 1/2 | __ | __ | 000000000 | 000000 | 000000 | 00 |
Microscope Slides

Ht., mm | Wd., mm | Thick., mm | Material | Pkg. Qty. | Pkg. | |
25 | 75 | 1 | Glass | 72 | 0000000 | 000000 |
Eyepiece Cameras for Microscopes

Retrofit your traditional microscope to view a live feed of extra-fine details. These cameras replace one of the eyepieces on your microscope. Connect them to a computer so multiple people can see crisp, clear images of what’s under your microscope. Colors appear true to life thanks to a high-resolution sensor. Use the included software to take photos and videos. The software also includes tools for measuring the item you’re viewing.
For Eyepiece Dia. | Magnification | Image Resolution | USB Standard | USB Connection Type | Computer Compatibility | Includes | Features | Each | |
29/32" | 20X | 2590 × 1940 | 2.0 | A, C | Mac, PC | 1 3/16" Diameter Eyepiece Adapter, 1 7/32" Diameter Eyepiece Adapter, USB A Cable, USB C Cable | Measurement Function | 0000000 | 0000000 |
Compact Illuminated Video Microscopes


Inspect the finest of details with the smallest of microscopes. While slim and less than six inches long, these microscopes have maximum magnification levels of 200X and above. Connect them to a computer with a USB cord to watch live footage and record photos and videos with the included software. All have a built-in light for clear, shadow-free inspections.
Microscopes that are both handheld and benchtop capable are versatile. When hand-held, you can move them around freely and point them at objects too fragile or heavy to move. When used on a benchtop with the included stand, you can capture clear images at high magnifications.
900X magnification microscopes reveal details as minuscule as those on hairs, fibers, and crystals. They should only be used on the included stand.
Microscopes with a dimmer adjust the brightness of the light and reduce the glare on reflective surfaces.
Microscopes with a measurement function determine the size of lines, circles, and angles and store the data on your computer.
Base | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Focus Distance | Focus Type | Image Direction | Arm Type | Lg. | Dia. | Dia. | Lg. | Wd. | Camera Megapixels | Connection Type | Computer Compatibility | Features | Each | |
Handheld, Bench Top | |||||||||||||||
LED | |||||||||||||||
10X to 200X | 4.4" @ 10 X | Adjustable | Standard | __ | 4 3/8" | 1 5/16" | __ | 6 1/2" | 4 3/4" | 5 | USB | PC Mac | Built-In Light, Dimmer, Measurement Function | 0000000 | 0000000 |
86X to 457X | 1.97" @ 86 X | Adjustable | Standard | __ | 5" | 2 5/16" | 3 1/8" | __ | __ | 2 | USB | PC Mac | Built-In Light | 0000000 | 00000 |
Bench Top | |||||||||||||||
LED | |||||||||||||||
700X to 900X | 0.25" @ 700 X | Adjustable | Standard | Adjustable | 4 3/4" | 1 5/16" | __ | 8 5/8" | 5 7/8" | 5 | USB | PC Mac | Built-In Light, Dimmer, Measurement Function | 00000000 | 00000000 |
Compact UV and White Light Video Microscopes

Catch defects you’d otherwise miss by switching between UV light and white light. The UV LEDs on these microscopes illuminate fluorescent dyes, particles, and chemicals, making leaks and cracks easy to spot. The white LEDs mimic natural daylight for clear, shadow-free inspections of fine details. If you’re working with reflective surfaces, adjust the brightness of the white light to reduce glare. An alternative to borescopes, they're often squeezed into dark, tight spaces. While slim and roughly 4” long, these microscopes can make objects appear up to 220 times larger.
Connect them to a computer to watch a live feed of your inspection and record photos and videos with the included software. The software also lets you measure the object you’re viewing.
Magnification | Focus Distance | Focus Type | Image Direction | Lg. | Dia. | Camera Megapixels | Connection Type | Computer Compatibility | Features | Each | |
LED, Ultraviolet LED | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
20X to 220X | 2.34" @ 20 X | Adjustable | Standard | 4 1/8" | 1 5/16" | 1.3 | USB | Mac, PC | Built-In Light Dimmer Measurement Function | 0000000 | 000000000 |
Compact Illuminated Microscopes



Take the powerful magnification of a standard microscope on the go—these microscopes fit in your pocket. To help you see fine details, they come with a bright LED light that illuminates the surface you’re inspecting.
Microscopes with an adjustable focus let you change their magnification, so you can use one tool for different jobs. The lower the magnification, the larger your field of view; the higher the magnification, the smaller the details you’ll be able to see.
Microscopes with a fixed focus have an internal scale on the eyepiece to precisely measure items up to 4 mm long.
Scale | Batteries | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Viewable Diameter | Image Direction | Measuring Range, mm | Graduations, mm | Ht. | Eyepiece Dia. | Housing Material | Features | Included | Size | No. Required | Each | |
Adjustable Focus | |||||||||||||
60X to 120X | 0.01" @ 100 X, 0.01" @ 60 X | Standard | __ | __ | 3 5/8" | 1/2" | Plastic | Built-In Light | No | AA | 1 | 000000 | 000000 |
Fixed Focus | |||||||||||||
25X | 0.13" @ 25 X | Inverted | 0-3 | 0.05 | 5" | 1/4" | Plastic | Built-In Light, Internal Scale | Yes | LR927 | 3 | 0000000 | 00000 |
40X | 0.15" @ 40 X | Inverted | 0-4 | 0.1 | 5 1/4" | 1/2" | Plastic | Built-In Light, Internal Scale | No | AA | 2 | 0000000 | 00000 |
50X | 0.08" @ 50 X | Inverted | 0-2 | 0.05 | 5" | 1/4" | Plastic | Built-In Light, Internal Scale | Yes | LR927 | 3 | 0000000 | 00000 |
Digital Magnifiers

Magnify items and capture images for quality control and material inspection. View live on the built-in display. Use the included USB cord, HDMI cable, or TV Out cable to connect to a computer or television. Magnifier has adjustable LED lights to brighten the magnified area.
Resolution | Display | Overall | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Working Distance | Image | Screen | Type | Size | Lg. | Wd. | Ht. | Batteries Included | Includes | Each | |
4X, 8X, 16X, 20X | 2 1/4" | HD 1280 × 720 | 1280 × 720 | LCD | 4.3" | 9 1/4" | 7/8" | 3 1/2" | Yes | Lanyard 5-ft. lg. TV Out Cable 2-ft. lg. USB Cord 3-ft. lg. Mini HDMI-HDMI Cable Built-In Software 4 GB Memory Card | 000000 | 000000000 |
Vertical Benchtop Optical Comparators
By projecting a magnified shadow or image of your part onto a screen, these optical comparators give you an easy way to measure and inspect its precise features. They work similarly to overhead projectors, but with fixed magnification to preserve proportions. Because of how easy they are to set up and use, they’re a staple in most machine shops. They shine light from above, so they’re best for inspecting flat parts, such as gaskets and O-rings. Unlike traditional optical comparators, these comparators are compact to fit easily on a benchtop.
To use these comparators, choose profile or surface lighting. Profile lighting creates a shadow of your part, which you can use to plot points for precise measurements. To plot each point, move the stage the part rests on until the point lines up with the crosshair on the projector screen. For precision, the stage moves in increments thinner than a sheet of paper. Surface lighting makes these comparators work like an illuminated magnifier, blanketing the part with even light to reveal scratches, dents, and other surface flaws.
Save the measurements you’ve gathered for later by exporting the data as a text file using an RS-232 cord (not included).
Optical comparators with edge detection increase accuracy and efficiency by reducing human error. No need to identify each edge yourself with the crosshair—these comparators register whether they are passing over your object's shadow or a gap, such as a hole or cutout. The graphic display screen shows a visual representation of the part you’re measuring, making it easy to identify and measure specific features. To make sure each part is inspected the same way, create a program that guides anyone using the comparator on what steps to follow.
Holders, swivel center supports, and V-blocks securely hold your part as you measure. V-blocks hold round parts.
If you need to inspect your part from different angles, use either a swivel center support or a rotary table. Swivel center supports turn around a horizontal axis, moving your part in a circle like a Ferris wheel. Rotary tables spin around a vertical axis, rotating your part just like a carousel.
Scales and charts are clear, so you can lay them on top of your comparator’s projector screen. Scales give you a way to check your comparator’s magnification and length measurements. Charts are for checking angle measurements.
Filters are blue to increase contrast and reduce glare on your comparator’s projector screen.


Stage | Stage Travel Distance | Overall | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Load Capacity, lbs. | Lg. | Wd. | X Axis | Y Axis | Stage Travel Resolution | Projector Screen Dia. | Display Screen Type | Wd. | Ht. | Dp. | Plug Type | Cord Lg., ft. | Each | |
10X | 8 | 7 3/4" | 3 3/4" | 6" | 2" | 0.00002" | 12" | Numeric | 22" | 44" | 31" | Three Prong | 5 | 0000000 | 0000000000 |


Stage | Stage Travel Distance | Overall | USB Connection | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Load Capacity, lbs. | Lg. | Wd. | X Axis | Y Axis | Stage Travel Resolution | Projector Screen Dia. | Display Screen Type | Wd. | Ht. | Dp. | Type | Standard | Plug Type | Cord Lg., ft. | Each | |
10X | 8 | 7 3/4" | 3 3/4" | 6" | 2" | 0.00002" | 12" | Graphic | 22" | 44" | 31" | B | 2.0 | Three Prong | 5 | 0000000 | 0000000000 |








Component | Color | Features | Each | |
Lens (20X Magnification) | __ | __ | 0000000 | 000000000 |
Lens (50X Magnification) | __ | __ | 0000000 | 00000000 |
Lens (100X Magnification) | __ | __ | 0000000 | 00000000 |
Holder (1 3/8" Max. Opening Wd.) | __ | Clamp | 0000000 | 000000 |
Swivel Center Support (3 1/2" Max. Opening Wd.) | __ | __ | 0000000 | 00000000 |
V-Block (15/16" Max. Opening Wd.) | __ | Clamp | 0000000 | 000000 |
Glass Rotary Table (3 15/16" Plate Dia.) | __ | __ | 0000000 | 000000 |
Chart | __ | Graduations | 0000000 | 000000 |
Scale (50 mm Lg.) | __ | Accuracy Scale, Calibration Scale | 0000000 | 000000 |
Scale (300 mm Lg.) | __ | Accuracy Scale, Calibration Scale | 0000000 | 00000000 |
Filter | Blue | __ | 0000000 | 000000 |
Horizontal Benchtop Optical Comparators
Measure and inspect precise features by projecting a magnified shadow or image of your part onto a screen. These optical comparators work similarly to overhead projectors, but with fixed magnification to preserve proportions. Because of how easy they are to set up and use, they’re a staple in most machine shops. From o-rings to castings, they work to inspect parts with simple or complex geometries. They shine light from the side, so unlike vertical comparators, your part can be held from underneath for stability. Unlike traditional optical comparators, these comparators are compact to fit easily on a benchtop.
To use these comparators, choose profile or surface lighting. Profile lighting creates a shadow of your part, which you can use to plot points for precise measurements. To plot each point, move the stage the parts rests on until the point lines up with the crosshair on the projector screen. For precision, the stage moves in increments thinner than a sheet of paper. Surface lighting makes these comparators work like an illuminated magnifier, blanketing the part with even light to reveal scratches, dents, and other surface flaws.
These comparators come with a variety of features to streamline your inspection process. For a quick way to compare manufactured parts to designs, set desired dimension and tolerance limits. You can also create a program that guides anyone using the comparator on what steps to follow, so each part is inspected the same way. To save everything for later, print the data or export it as a spreadsheet or text file to a computer with a USB or RS-232 connection.
Changing the magnification is as easy as twisting the current lens until it pops out and twisting in a new lens (sold separately).
Optical comparators with edge detection increase accuracy and efficiency by reducing human error. No need to identify each edge yourself with the crosshair—these comparators register whether they are passing over your object's shadow or a gap, such as a hole or cutout.
Rotary vises (sold separately) give you a secure way to hold up and rotate objects.
Cabinets (sold separately) can serve as a stand for your comparator and as storage for lenses and other accessories.


Stage | Stage Travel Distance | Overall | USB Connection | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Load Capacity, lbs. | Lg. | Wd. | X Axis | Y Axis | Stage Travel Resolution | Projector Screen Dia. | Display Screen Type | Ht. | Wd. | Dp. | Type | Standard | Plug Type | Cord Lg., ft. | Each | |
10X | 55 | 18 3/4" | 4 3/4" | 10" | 4" | 1 microns | 16" | Graphic | 37" | 22" | 46" | A | 2.0 | Two Prong | 6 | 0000000 | 0000000000 |


Stage | Stage Travel Distance | Overall | USB Connection | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Magnification | Load Capacity, lbs. | Lg. | Wd. | X Axis | Y Axis | Stage Travel Resolution | Projector Screen Dia. | Display Screen Type | Ht. | Wd. | Dp. | Type | Standard | Plug Type | Cord Lg., ft. | Each | |
10X | 55 | 18 3/4" | 4 3/4" | 10" | 4" | 1 microns | 16" | Graphic | 37" | 22" | 46" | A | 2.0 | Two Prong | 6 | 0000000 | 0000000000 |
Miniature LED Adjustable-Arm Lights

Though not as bright as our miniature fiber-optic lights, these lights have built-in LEDs that last longer, are more efficient, and are more affordable. Use them to illuminate small and microscopic parts. They have a daylight appearance that highlights white/blue tones, which is good for inspecting.
Base | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Arm Reach | Head Dia. | Lg. | Wd. | Brightness, lumens | Light Appearance | Wattage | Arm Material | Color | Light Setting | Voltage | Electrical Connection Type | Each | |
Built-In LED Bulbs—Weighted Base | |||||||||||||
23 1/4" | 7/8" | 5 1/2" | 4 1/4" | 240 | Daylight (6,500K) | 6W | Steel | Black | Adjustable | 120V AC, 240V AC | Two-Prong Plug | 0000000 | 0000000 |

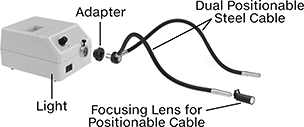

Miniature Fiber-Optic Adjustable-Arm Lights

Create a high-intensity lighting system for inspecting small and microscopic parts. To create a complete lighting system, you need a fiber-optic light, fiber-optic cable, and an adapter to connect the cable to the light. They cast a neutral white light often found in workspaces.
Add a probe to 1/8" dia. fiber-optic cables to illuminate small areas that have recessed or deep orifices.
Pair a focusing lens with a positionable cable to create a concentrated beam of light on your work.

Tip Dia. | Dia. | Lg. | Each | |
Single Flexible Vinyl-Coated Steel Cable | ||||
---|---|---|---|---|
0.187" | 1/16" | 48" | 000000 | 0000000 |
0.187" | 1/8" | 48" | 000000 | 000000 |
0.187" | 1/8" | 72" | 0000000 | 000000 |
0.312" | 1/4" | 48" | 000000 | 000000 |
0.312" | 1/4" | 72" | 0000000 | 000000 |
0.562" | 1/2" | 36" | 0000000 | 000000 |
Single Flexible Stainless Steel Cable | ||||
0.187" | 1/8" | 48" | 0000000 | 000000 |
0.187" | 1/8" | 72" | 0000000 | 000000 |
0.312" | 3/16" | 48" | 0000000 | 000000 |
0.312" | 1/4" | 48" | 0000000 | 000000 |
0.312" | 1/4" | 72" | 0000000 | 000000 |
0.562" | 1/2" | 36" | 0000000 | 000000 |
Dual Flexible Vinyl-Coated Steel Cable | ||||
0.312" | 11/64"; 1/4" | 36" | 0000000 | 000000 |
Single Positionable Steel Cable | ||||
1/2" | 1/4" | 20" | 0000000 | 000000 |
Dual Positionable Steel Cable | ||||
1/2" | 9/32" | 23" | 0000000 | 000000 |

Dia. | Lg. | Each | |
7/8" | 2 1/2" | 0000000 | 000000 |
Microscope Slide Holders

Hold up to 90 1” × 3” slides at an angle or transport them around the lab.
For Max. No. of Slides | Lg. | Wd. | Ht. | Material | Color | Max. Temp., °F | Autoclavable | Each | |
90 | 12" | 7" | 2" | HDPE Plastic | White | 245° | No | 0000000 | 0000000 |
Digital Scopes for Brinell Hardness Testers


Finding your Brinell hardness doesn’t have to be so hard—these scopes scan and measure indents, then calculate the hardness for you. Accurate and efficient, these scopes replace the need for bulky microscopes and manually measuring and calculating hardness. Connect these scopes to your computer and use the included software to see a live image of the indent on your screen. You can zoom in 4X and adjust the focus to capture a wide range of indent diameters. To fine tune the automatic measurement, simply drag your cursor. Use the software to set test parameters, convert the value to other hardness scales, and validate the test results. The software also marks any measurements that fall out of your set specifications. When you’re finished, you can generate a customizable Microsoft Word or Excel report for your records.
For Ball Indenter Dia., mm | Hardness Measuring Range | Focus Type | Camera Megapixels | Resolution | Number of Lenses | Ht. | Dia. | Housing Material | Computer Compatibility | Includes | Each | |
For Use On Aluminum, Brass, Bronze, Cast Iron, Iron, Alloy Steel, Stainless Steel, Steel | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
0.8-6 | 8-650 | Adjustable | 1.3 | 0.0001 | 2 | 4 3/4" | 1 1/2" | Aluminum | PC | Carrying Case, One Calibrated Test Block, Software, USB Cable | 0000000 | 000000000 |
