Made-to-Order Drill Bushings

Filter by

0.0135" to 2.2656"

0.3450 mm to 57.0000 mm

Made-to-Order

0.1562" to 2.7500"

4.0000 mm to 69.0000 mm

Length

Installation Permanence

ID Increment

Length Increment

Drill Bushing Texture

OD Increment

Drill Bushing Type

DFARS Specialty Metals

Exempt

Export Control Classification Number (ECCN)

REACH

RoHS

4 Products

Made-to-Order Press-Fit Drill Bushings

Mount flush with jig plates for precise drilling. These bushings can also be used as spacers, shims, and machinery bushings.

To Order: Specify ID, OD, and length from the ranges listed. The difference between the ID and OD must be at least 0.07".

For technical drawings and 3-D models, click on a part number.

								Each
Choose an ID	Choose an OD	Choose a Length	Length Tolerance	Drill Bushing Type	Material	Hardness		1-5	6-11	12-Up
0.0135" to 2.2656" in 0.0001" increments	0.1562" to 2.7500" in 0.0001" increments	0.125" to 3"	-0.015" to 0.015"	P	Steel	Rockwell C61	00000000	000000	000000	000000

Made-to-Order Metric Press-Fit Drill Bushings

Mount flush with jig plates for precise drilling. These bushings can also be used as spacers, shims, and machinery bushings.

To Order: Specify ID, OD, and length from the ranges listed. The difference between the ID and OD must be at least 1.778 mm.

For technical drawings and 3-D models, click on a part number.

Choose an ID	Choose an OD	Choose a Length	Length Tolerance, mm	Drill Bushing Type	Material	Hardness		Each
0.3450 to 57.0000 mm in 0.0025 mm increments	4.0000 to 69.0000 mm in 0.0025 mm increments	4 to 76 mm in 1 mm increments	-0.4 to 0.4	PM	Steel	Rockwell C61	00000000	000000

Made-to-Order Removable Drill Bushings

Reusable and easy to change out, these bushings are held in place by the included slotted head lock screw. They can also be used as spacers, shims, and machinery bushings. Also known as slip-fixed or renewable bushings.

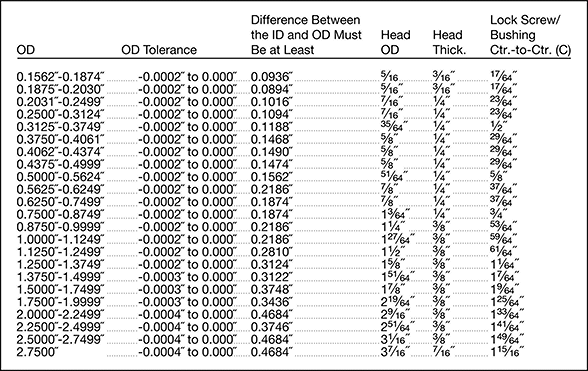

To Order: Specify ID, OD, and length from the ranges listed. Refer to the chart above for minimum difference required between ID and OD.

For technical drawings and 3-D models, click on a part number.

								Each
Choose an ID	Choose an OD	Choose a Length	Length Tolerance	Drill Bushing Type	Material	Hardness		1-5	6-11	12-Up
0.0135" to 2.2656" in 0.0001" increments	0.1562" to 2.7500" in 0.0001" increments	0.125" to 3" in 0.0625" increments	-0.015" to 0.015"	SF	Steel	Rockwell C61	00000000	000000	000000	000000

Made-to-Order Press-Fit Drill Bushings with Head

The head prevents these bushings from being pushed through the jig when drilling pressure is extreme. The head sits above the jig plate or can be mounted flush by installing in a counterbored hole. Drill bushings can also be used as spacers, shims, and machinery bushings.

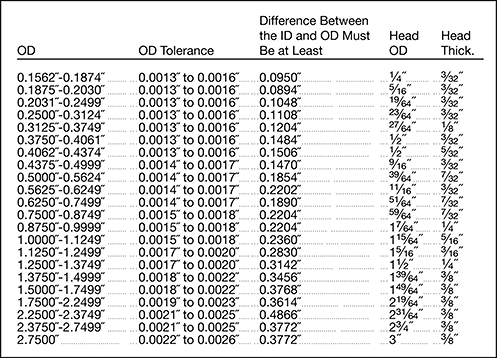

To Order: Specify ID, OD, and length from the ranges listed.

For technical drawings and 3-D models, click on a part number.

								Each
Choose an ID	Choose an OD	Choose a Length	Length Tolerance	Drill Bushing Type	Material	Hardness		1-5	6-11	12-Up
0.0135" to 2.2656" in 0.0001" increments	0.1562" to 2.7500" in 0.0001" increments	0.125" to 3"	-0.015" to 0.015"	H	Steel	Rockwell C61	00000000	000000	000000	000000
