Flat Bellows
Guard flat moving surfaces on machinery. Pleated seams protect from light debris and heavy dust. All of these bellows meet UL 94 HB for flame retardance.
For technical drawings and 3-D models, click on a part number.

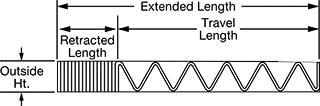

Length | ||||||||
|---|---|---|---|---|---|---|---|---|
| Extended | Retracted | Travel | Material | Material Thick. | Temp. Range, °F | Mounting Fasteners Included | Each | |
Protects Against Abrasive Grit, Coolant, Oil | ||||||||
0.59" Outside Ht. × 12" Outside Wd. | ||||||||
| 1 ft. | 5/8" | 11 3/4" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
| 2 ft. | 1 3/16" | 22 13/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 3 ft. | 1 13/16" | 34 9/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 4 ft. | 2 5/16" | 45 5/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
| 6 ft. | 3 9/16" | 69 1/4" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
0.59" Outside Ht. × 24" Outside Wd. | ||||||||
| 1 ft. | 5/8" | 11 3/4" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 2 ft. | 1 3/16" | 22 13/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 3 ft. | 1 13/16" | 34 9/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 4 ft. | 2 5/16" | 45 5/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
| 6 ft. | 3 9/16" | 69 1/4" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
0.79" Outside Ht. × 12" Outside Wd. | ||||||||
| 1 ft. | 1/2" | 11 11/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 2 ft. | 7/8" | 23 5/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 3 ft. | 1 5/16" | 35 1/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 4 ft. | 1 13/16" | 46 9/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
| 6 ft. | 2 11/16" | 70 1/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
0.79" Outside Ht. × 24" Outside Wd. | ||||||||
| 1 ft. | 1/2" | 11 11/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 2 ft. | 7/8" | 23 5/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 3 ft. | 1 5/16" | 35 1/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 4 ft. | 1 13/16" | 46 9/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
| 6 ft. | 2 11/16" | 70 1/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
0.98" Outside Ht. × 12" Outside Wd. | ||||||||
| 1 ft. | 3/8" | 12" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 2 ft. | 13/16" | 24" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 3 ft. | 1 1/16" | 36 1/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 4 ft. | 1 5/16" | 46 7/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
| 6 ft. | 2 3/16" | 70 5/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
0.98" Outside Ht. × 24" Outside Wd. | ||||||||
| 1 ft. | 3/8" | 12" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 2 ft. | 13/16" | 24" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 3 ft. | 1 1/16" | 36 1/16" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 00000 |
| 4 ft. | 1 5/16" | 46 7/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
| 6 ft. | 2 3/16" | 70 5/8" | Melamine-Coated Polyester Fabric | 0.008" | -10° to 200° | No | 00000000 | 000000 |
High-Temperature Flat Bellows
These bellows withstand temperatures up to 500° F—more than twice as much as standard flat bellows. Use them to guard flat moving surfaces on machinery. Sewn seams let these bellows breathe, so they retract quickly in fast-cycling applications. The seams will allow small amounts of moisture and dust to pass through.
For technical drawings and 3-D models, click on a part number.
Length | ||||||||
|---|---|---|---|---|---|---|---|---|
| Extended | Retracted | Travel | Material | Material Thick. | Max. Temp., °F | Mounting Fasteners Included | Each | |
Protects Against Abrasive Grit, Acid, Coolant, Cutting Fluid, Dust, Hydraulic Fluid, Metal Chips, Solvents, Sparks, Synthetic Oil, Welding Spatter, Wood Chips | ||||||||
9/16" Outside Ht. × 12" Outside Wd. | ||||||||
| 1 ft. | 1" | 11 3/8" | PTFE-Coated Fiberglass Fabric | 0.01" | 500° | No | 0000000 | 0000000 |
| 2 ft. | 1 15/16" | 22 1/16" | PTFE-Coated Fiberglass Fabric | 0.01" | 500° | No | 0000000 | 000000 |
Three-Sided Flat Bellows
Slide these bellows over flat moving surfaces on machinery, such as guideways. They have a notched opening with four perforated tabs on each side that can be removed to widen the opening. The edges of the folds are reinforced with PVC. These bellows have sealed seams to keep contaminants out. Air venting may be necessary in fast-cycling applications. Add a mounting flange (sold separately) for stability.
Bellows | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inside | Outside | Tab | Mounting Flanges | |||||||||||||
| Wd. | Ht. | Wd. | Ht. | Notch Wd. | Wd. | Ht. | Material | Material Thick. | Temp. Range, °F | Mounting Fasteners Included | Retracted Lg. per ft. | Choose an Extended Lg., ft. | Per Ft. | Each | ||
Protects Against Coolant, Cutting Fluid, Dust, Metal Chips, Salt Water, Solvents, Synthetic Oil, Water | ||||||||||||||||
| 8 1/8" | 2" | 10 1/2" | 4" | 4 1/8" | 1/2" | 5/8" | Neoprene-Coated Nylon Fabric | 0.02" | -40° to 220° | No | 1 5/8" | 0000000 | 000000 | 0000000 | 000000 | |
| 12 1/8" | 2" | 14 1/2" | 4" | 8 1/8" | 1/2" | 5/8" | Neoprene-Coated Nylon Fabric | 0.02" | -40° to 220° | No | 1 5/8" | 0000000 | 000000 | 0000000 | 00000 | |
| 16 1/8" | 2" | 18 1/2" | 4" | 12 1/8" | 1/2" | 5/8" | Neoprene-Coated Nylon Fabric | 0.02" | -40° to 220° | No | 1 5/8" | 0000000 | 000000 | 0000000 | 00000 | |
| 20 1/8" | 2" | 22 1/2" | 4" | 16 1/8" | 1/2" | 5/8" | Neoprene-Coated Nylon Fabric | 0.02" | -40° to 220° | No | 1 5/8" | 0000000 | 000000 | 0000000 | 00000 | |
| 24 1/8" | 2" | 26 1/2" | 4" | 20 1/8" | 1/2" | 5/8" | Neoprene-Coated Nylon Fabric | 0.02" | -40° to 220° | No | 1 5/8" | 0000000 | 000000 | 0000000 | 00000 | |
| 28 1/8" | 2" | 30 1/2" | 4" | 24 1/8" | 1/2" | 5/8" | Neoprene-Coated Nylon Fabric | 0.02" | -40° to 220° | No | 1 5/8" | 0000000 | 000000 | 0000000 | 00000 | |
Roll-Up Covers
Similar to a window shade, these covers roll up and down to protect moving surfaces on equipment in tight spaces. Vertical mounting is recommended.
Length | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Outside Wd. | Extended | Retracted | Travel | Material | Material Thick. | Temp. Range, °F | Features | Includes | Mounting Fasteners Included | Each | |
Protects Against Abrasive Grit, Coolant, Cutting Fluid, Dust, Metal Chips, Oil, Salt Water, Synthetic Oil, Water, Wood Chips | |||||||||||
| 12" | 4 ft. | 5" | 43" | Neoprene-Coated Nylon Fabric | 0.018" | -40° to 220° | Self-Retracting Roller | Two Mounting Brackets with Four 9/32" Holes | No | 0000000 | 0000000 |
Guide Rail Bellows
Also known as linear way covers, these bellows install on guide rails to protect the rails as carriages move across them. They have sealed seams to keep contaminants out. Air venting may be necessary in fast-cycling applications.
Mounting kits include hook-and-loop fasteners, mounting clips, mounting flanges, screws, and tape with adhesive on both sides to support different mounting options.
For technical drawings and 3-D models, click on a part number.
Bellows | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Length | Mounting Kits | ||||||||
| Extended | Retracted | Travel | Material | Material Thick. | Temp. Range, °F | Each | Each | ||
Protects Against Abrasive Grit, Coolant, Cutting Fluid, Dust, Metal Chips, Salt Water, Synthetic Oil, Water, Wood Chips | |||||||||
For 15 mm Rail Wd. (30 mm Outside Ht. × 56 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 000000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
For 20 mm Rail Wd. (36 mm Outside Ht. × 61 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
For 23 mm Rail Wd. (36 mm Outside Ht. × 67 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
For 28 mm Rail Wd. (43 mm Outside Ht. × 72 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
For 33 mm Rail Wd. (27 mm Outside Ht. × 73 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
For 34 mm Rail Wd. (42 mm Outside Ht. × 76 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
For 37 mm Rail Wd. (32 mm Outside Ht. × 80 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
For 42 mm Rail Wd. (34 mm Outside Ht. × 84 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000000 | 00000000 | 00000 |
For 45 mm Rail Wd. (50 mm Outside Ht. × 88 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000000 | 00000000 | 00000 |
For 53 mm Rail Wd. (58 mm Outside Ht. × 108 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000000 | 00000000 | 00000 |
For 69 mm Rail Wd. (34 mm Outside Ht. × 108 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000000 | 00000000 | 00000 |
For 90 mm Rail Wd. (40 mm Outside Ht. × 132 mm Outside Wd.) | |||||||||
| 1 ft. | 15/16" | 11 1/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 2 ft. | 1 7/8" | 22 1/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 3 ft. | 2 13/16" | 33 3/16" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 4 ft. | 3 3/4" | 44 1/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 6 ft. | 5 5/8" | 66 3/8" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 000000 | 00000000 | 00000 |
| 8 ft. | 7 1/2" | 88 1/2" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000000 | 00000000 | 00000 |
| 12 ft. | 11 1/4" | 132 3/4" | PVC-Coated Polyester Fabric | 0.01" | -40° to 160° | 000000000 | 00000000 | 00000000 | 00000 |
Bridgeport Machine Bellows
Guard 9" and 12" travel Bridgeport milling machines by covering their rear knee/upper column and front knee. Do not use with Series II Bridgeport machines. Sewn seams let these bellows breathe, so they retract quickly in fast-cycling applications. The seams will allow small amounts of moisture and dust to pass through. Mount these bellows to surfaces with screws.
| For Max. Table Travel | Material | Material Thick. | Temp. Range, °F | Mounting Fasteners Included | Includes | Each | |
Protects Against Abrasive Grit, Coolant, Cutting Fluid, Debris, Dust, Metal Chips, Oil, Salt Water, Synthetic Oil, Water, Wood Chips | |||||||
|---|---|---|---|---|---|---|---|
| 9", 12" | Rubber-Coated Fabric | 0.02" | -30° to 260° | Yes | Front Knee Cover, Rear Knee/Upper Column Cover | 0000000 | 000000000 |
