Stainless Steel Cabinet Workbenches





Often used in laboratories and food-processing plants, these workbenches resist corrosion. All meet NSF/ANSI 2 standards for sanitary design.
Styles B-E have leveling feet to compensate for uneven floors. Style E also have removable doors for cleaning.
Shelf | Drawers | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Wd. | Dp. | Ht. | Backstop Ht. | O'all Cap., lbs. | Top Cap., lbs. | Type | Cap., lbs. | No. of | Wd. | Dp. | Ht. | Specifications Met | Assembled or Unassembled | Each | |
Mobile | ||||||||||||||||
Stainless Steel | ||||||||||||||||
A | 36" | 24" | 35" | 4" | 500 | 400 | Fixed | 120 | __ | __ | __ | __ | NSF/ANSI 2 | Assembled | 0000000 | 000000000 |
Stationary | ||||||||||||||||
Stainless Steel | ||||||||||||||||
B | 36" | 24" | 35" | 4" | 500 | 400 | Fixed | 120 | __ | __ | __ | __ | NSF/ANSI 2 | Assembled | 00000000 | 00000000 |
C | 36" | 24" | 35" | 4" | 650 | 400 | Fixed | 120 | 2 | 12" | 20" | 5" | NSF/ANSI 2 | Assembled | 00000000 | 00000000 |
D | 48" | 24" | 35" | 4" | 850 | 500 | Fixed | 155 | 3 | 20" | 20" | 5" | NSF/ANSI 2 | Assembled | 00000000 | 00000000 |
E | 60" | 30" | 34" | 6" | 1,000 | 500 | __ | __ | __ | __ | __ | __ | NSF/ANSI 2 | Assembled | 0000000 | 00000000 |
E | 72" | 30" | 34" | 6" | 1,000 | 500 | __ | __ | __ | __ | __ | __ | NSF/ANSI 2 | Assembled | 0000000 | 00000000 |

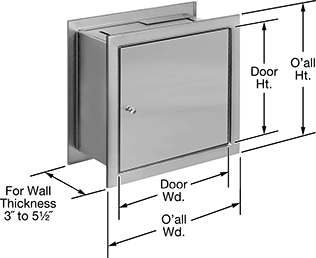

Pass-Through Cabinets


Mount these cabinets in a wall to pass samples, supplies, and other materials between rooms while maintaining privacy and minimizing person-to-person contact. They’re common in sanitary environments such as labs. The two doors are interlocked, which means only one can be open at a time, and they close by themselves to prevent contamination and privacy breaches.
Made of stainless steel, these cabinets withstand frequent cleanings without rusting. They also come with a removable tray to place samples on, so you don’t have to clean the entire cabinet after each use.
Adjust them to fit in walls between 3" and 5 1/2" thick.
For technical drawings and 3-D models, click on a part number.
For Opening | Door | Overall | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
For Wall Thickness | Height | Width | Height | Width | Height | Width | For Use Outdoors | Mounting Fasteners Included | Includes | Each | |
Stainless Steel | |||||||||||
3"-5 1/2" | 10 3/4" | 11 1/2" | 10 5/8" | 11 3/8" | 12 5/8" | 13 3/8" | No | Yes | Tray | 0000000 | 0000000 |
