About Fire-Fighting Hose Threads
More
How to Identify and Measure Fittings
Pipe size is an industry designation, not the actual size. View information about how to measure threaded and unthreaded pipe and pipe fittings.
More
About Hose
More
Weather-Resistant Garden Hose
- Material: EPDM Rubber, except hose with anodized aluminum fittings is TPR Rubber
- Color: Black
- For Use Outdoors: Yes
Offering excellent UV and ozone resistance, this rubber hose is a good fit for outdoor applications.
50-ft. Lengths | |||||
|---|---|---|---|---|---|
| Hose Size | ID | OD | Max. Temp., ° F | Each | |
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||
150 psi @ 72° F Max. Pressure | |||||
| 1 × 1 | 1" | 1 5/16" | 190° | 00000000 | 0000000 |
Weather-Resistant Suction Water Hose with Threaded Fittings
- Temperature Range: -25° to 200° F
- Maximum Vacuum: 29" of Hg @ 72° F
- Material: EPDM Rubber
- Color: Black with Blue Stripe
- Female Fitting Swivels Until Tightened
Offering excellent UV and ozone resistance, this EPDM rubber hose is a good fit for outdoor applications, such as emptying tanks and trucks and cleaning up standing water and spills. Fittings that swivel until tightened are easy to install.
For technical drawings and 3-D models, click on a part number.
High-Pressure Easy-Store Discharge Water Hose with Threaded Fittings
- Temperature Range: -5° to 200° F
- Material: Buna-N Rubber
- Color: Yellow
- Female Fitting Swivels Until Tightened
Move water from one place to another. Hose lays flat and folds up for carrying and storage. Fittings that swivel until tightened are easy to install.
| Pipe Size | ID | Wd. | Wall Thick. | Max. Pressure | 5 ft. | 10 ft. | 15 ft. | 20 ft. | 25 ft. | 30 ft. | 50 ft. | |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 × 1 1/2 | 1 1/2" | 2 3/4" | 0.11" | 270 psi @ 72° F | 00000000 | |||||||
| 2 × 2 | 2" | 3 1/2" | 0.12" | 270 psi @ 72° F | 00000000 | |||||||
| 2 1/2 × 2 1/2 | 2 1/2" | 4 1/4" | 0.13" | 270 psi @ 72° F | 00000000 | |||||||
| 3 × 3 | 3" | 5" | 0.14" | 270 psi @ 72° F | 00000000 | |||||||
| 4 × 4 | 4" | 6 1/2" | 0.14" | 207 psi @ 72° F | 00000000 | |||||||
Low-Pressure Petroleum Hose with Male and Female Threaded Fittings
- Temperature Range: -20° to 175° F
- Material: Buna-N Rubber with Neoprene Rubber Cover
- Color: Black
- Female Fitting Swivels Until Tightened
Made of tough Buna-N rubber, this hose has the durability to stand up to gasoline, fuel oil, and other petroleum-based products. It is reinforced with a steel wire that provides an escape route for electrostatic buildup when used in a grounded system. It is not for use on a reel. Fittings that swivel until tightened are easy to install.
For technical drawings and 3-D models, click on a part number.

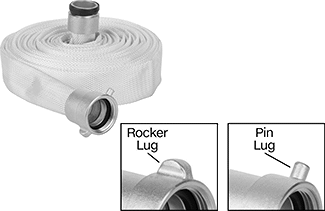

Lightweight Fire-Fighting Hose
- Temperature Range: -40° to 180° F
- Material: Polyurethane with Polyester Cover
- Color: White
- Female Fitting Swivels Until Tightened
Also known as pin-rack hose, this hose can be folded to fit in a rack. The lugs provide a quick connection to hydrants and washdown equipment. Use a hook-style spanner wrench to tighten them. Fittings that swivel until tightened are easy to install.
Brass fittings are more durable than aluminum fittings. Aluminum fittings are lighter than brass fittings.
Hoses meet NFPA 1961. They are also FM Approved to meet American safety standards.
| ID | OD | Hose Size | Max. Pressure | Specifications Met | Each | ||
50-ft. Lengths | |||||||
|---|---|---|---|---|---|---|---|
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 0000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
75-ft. Lengths | |||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
100-ft. Lengths | |||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Choose-a-Color Abrasion-Resistant Fire-Fighting Hose
- Temperature Range: -40° to150° F
- Material: EPDM Rubber with Polyester Cover
- Color: Red, White, or Yellow
- Female Fitting Swivels Until Tightened
Differentiate your hose by color. The abrasion-resistant polyester cover on this hose comes in red, white, or yellow. The lugs provide a quick connection to hydrants and washdown equipment. Use a hook-style spanner wrench to tighten them. Fittings that swivel until tightened are easy to install.
Brass fittings are more durable than aluminum fittings. Aluminum fittings are lighter than brass fittings.
Hoses meet NFPA 1961. They are also UL Listed and FM Approved to meet American safety standards.
| Lug Style | ID | OD | Hose Size | Max. Pressure | Specifications Met | Choose a Color | Each | |
50-ft. Lengths | ||||||||
|---|---|---|---|---|---|---|---|---|
Brass Threaded NPSH Male × Brass Threaded NPSH Female | ||||||||
| Pin × Pin | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 0000000 | |
| Rocker × Rocker | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | ||||||||
| Rocker × Rocker | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
75-ft. Lengths | ||||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | ||||||||
| Pin × Pin | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
| Rocker × Rocker | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | ||||||||
| Rocker × Rocker | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
100-ft. Lengths | ||||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | ||||||||
| Pin × Pin | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
| Rocker × Rocker | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | ||||||||
| Rocker × Rocker | 1 1/2" | 1 3/4" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 00000000 | 000000 | |
Abrasion-Resistant Fire-Fighting Hose
- Temperature Range: -40° to 150° F
- Material: Polyurethane Rubber with Polyester Cover
- Color: White
- Female Fitting Swivels Until Tightened
Lightweight yet tough, this hose has an abrasion-resistant polyester cover. The lugs provide a quick connection to hydrants and washdown equipment. Use a hook-style spanner wrench to tighten them. Fittings that swivel until tightened are easy to install.
Brass fittings are more durable than aluminum fittings. Aluminum fittings are lighter than brass fittings.
Hoses meet NFPA 1961.
UL Listed and FM Approved hoses meet American safety standards.
| Lug Style | ID | OD | Hose Size | Max. Pressure | Specifications Met | Each | |
50-ft. Lengths | |||||||
|---|---|---|---|---|---|---|---|
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin × Pin | 2 1/2" | 2 13/16" | 2 1/2 × 2 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 0000000 | 0000000 |
| Rocker × Rocker | 2 1/2" | 2 13/16" | 2 1/2 × 2 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 0000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1" | 1 3/16" | 1 × 1 | 300 psi @ 72° F | __ | 00000000 | 000000 |
75-ft. Lengths | |||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin × Pin | 2 1/2" | 2 13/16" | 2 1/2 × 2 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 0000000 | 000000 |
| Rocker × Rocker | 2 1/2" | 2 13/16" | 2 1/2 × 2 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 0000000 | 000000 |
100-ft. Lengths | |||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin × Pin | 2 1/2" | 2 13/16" | 2 1/2 × 2 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 0000000 | 000000 |
| Rocker × Rocker | 2 1/2" | 2 13/16" | 2 1/2 × 2 1/2 | 225 psi @ 72° F | UL Listed, FM Approved | 0000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1" | 1 3/16" | 1 × 1 | 300 psi @ 72° F | __ | 00000000 | 000000 |
Extra-Tough Fire-Fighting Hose
- Temperature Range: -40° to 150° F
- Material: EPDM Rubber with Polyester Cover
- Color: White
- Female Fitting Swivels Until Tightened
Two heavy duty polyester covers protect this hose. The lugs provide a quick connection to hydrants and washdown equipment. Use a hook-style spanner wrench to tighten them.Fittings that swivel until tightened are easy to install.
Aluminum fittings are lighter than brass fittings.
Hoses meet NFPA 1961.
Spray and Stream Nozzles for Fire-Fighting Hose
Twist the barrel to adjust water flow. Nozzles have a textured barrel for grip and a rubber bumper for impact resistance.
Polycarbonate nozzles are durable and lightweight.
Brass nozzles are more durable than aluminum nozzles.
Aluminum nozzles are lighter than brass nozzles.
Nozzles | Replacement Gaskets | ||||||
|---|---|---|---|---|---|---|---|
| Pipe Size | Flow Rate | Dia. | Lg. | Each | Each | ||
NPSH Female | |||||||
Polycarbonate | |||||||
| 3/4 | 8 gpm @ 100 psi | 2 3/4" | 4 3/4" | 00000000 | 000000 | 00000000 | 00000 |
| 1 | 22 gpm @ 100 psi | 2 3/4" | 4 3/4" | 00000000 | 00000 | 00000000 | 000 |
| 1 1/2 | 75 gpm @ 100 psi | 2 3/4" | 4 5/8" | 00000000 | 00000 | 00000000 | 0000 |
| 2 | 140 gpm @ 100 psi | 3 1/4" | 5 3/8" | 0000000 | 00000 | 00000000 | 0000 |
Brass | |||||||
| 1 | 36 gpm @ 100 psi | 2" | 3 1/4" | 0000000 | 00000 | 000000 | 00 |
| 1 1/2 | 95 gpm @ 100 psi | 2 1/2" | 3 1/2" | 0000000 | 00000 | 0000000 | 0000 |
| 2 | 108 gpm @ 100 psi | 3" | 5" | 0000000 | 000000 | 000000 | 00 |
UL Listed Brass | |||||||
| 1 1/2 | 95 gpm @ 100 psi | 2 11/16" | 5 13/16" | 0000000 | 000000 | 000000 | 00 |
Aluminum | |||||||
| 1 | 24 gpm @ 100 psi | 2 3/4" | 4" | 0000000 | 000000 | 000000 | 00 |
| 1 1/2 | 60 gpm @ 100 psi | 2 3/4" | 4 1/2" | 0000000 | 000000 | 000000 | 00 |
Lever-Activated Stream Nozzles for Fire-Fighting Hose
Use the lever to turn water flow on and off. A rubber bumper provides impact resistance.
For technical drawings and 3-D models, click on a part number.
| Pipe Size | Flow Rate | Dia. | Lg. | Spray End Dia. | Each | |
NPSH Female | ||||||
|---|---|---|---|---|---|---|
Brass | ||||||
| 1 1/2 | 75 gpm @ 100 psi | 3 1/4" | 9 1/2" | 1/2" | 000000 | 0000000 |
Quick-Flow Stream Nozzles for Fire-Fighting Hose
There’s no shut-off valve on these nozzles, so they provide instant water flow.
For technical drawings and 3-D models, click on a part number.
Metal Barbed Hose Fittings for Air and Water
Slide the barbed end into rubber hose and secure with the appropriate clamp or crimp-on hose ferrule.
Brass fittings are softer than other metal fittings, so they’re easier to thread together. Plain brass fittings have good corrosion resistance. Fittings that swivel until tightened rotate 360° for easy installation. Fittings with a threaded end are also known as hose nipples.
NPSH (National Pipe Straight Hose) female threads are compatible with male NPT, NPTF, and NPSM threads.
For technical drawings and 3-D models, click on a part number.
- Maximum Pressure: 150 psi @ 72° F
- Temperature Range: -40° to 160° F
- Attachment Type: Use Band-and-Buckle Clamps
- Specifications Met: SAE J476
| For Hose ID | Pipe Size | Pkg. Qty. | Pkg. | |
Brass | ||||
|---|---|---|---|---|
| 1" | 1 | 1 | 0000000 | 00000 |
UN/UNF (SAE Straight)
Male Threads with Gasket
- Maximum Pressure: 150 psi @ 72° F
- Temperature Range: -40° to 160° F
- Attachment Type: Use Band-and-Buckle Clamps
- Specifications Met: SAE J476
| For Hose ID | Pipe Size | Gasket Material | Pkg. Qty. | Pkg. | |
Brass | |||||
|---|---|---|---|---|---|
| 1" | 1 | SBR Rubber | 1 | 0000000 | 00000 |
Metal Garden Hose Fittings for Drinking Water
These fittings meet NSF/ANSI Standard 61 for drinking water. Connect them to rubber or plastic garden hose for a variety of water supply applications. Fittings are brass for good corrosion resistance.
Fittings that swivel until tightened rotate 360° for easy installation.
Fittings with a barbed end are also known as hose menders and splicers. Use them to connect lengths of hose or to repair damaged hose. To connect, slide the barbed end into rubber or plastic hose and secure with a clamp.
For technical drawings and 3-D models, click on a part number.
- Maximum Pressure: 150 psi @ 72° F
- Attachment Type: Use Worm-Drive Clamps
- Specifications Met: NSF/ANSI 61
| For Hose ID | Pipe Size | Each | |
Brass | |||
|---|---|---|---|
| 1" | 1 | 0000000 | 000000 |
- Maximum Pressure: 150 psi @ 72° F
- Attachment Type: Use Worm-Drive Clamps
- Specifications Met: NSF/ANSI 61
| For Hose ID | Pipe Size | Washer Material | Each | |
Brass | ||||
|---|---|---|---|---|
| 1" | 1 | EPDM Rubber | 0000000 | 000000 |
Fire-Fighting Hose Fittings
Connect these fittings to fire hydrants and washdown equipment. Made of brass, they have good corrosion resistance. Some have a hex in the middle so you can tighten them with a wrench.
NH/NST (National Hose/National Standard) threads are only compatible with other NH/NST threads. Male NPSH (National Pipe Straight Hose) threads are compatible with female NPSH threads. Female NPSH threads are compatible with male NPSH, NPT, NPTF, and NPSM threads.
For technical drawings and 3-D models, click on a part number.
| Fire Hose Trade Size | Pipe Size | Material | Each | |
| 1 1/2 | 1 1/2 | Brass | 0000000 | 000000 |
| Fire Hose Trade Size | Pipe Size | Material | Each | |
| 1 1/2 | 1 1/2 | Brass | 0000000 | 000000 |
| Pipe Size | Fire Hose Trade Size | Material | Each | |
| 1 1/2 | 1 1/2 | Brass | 0000000 | 000000 |
| Pipe Size | Material | Each | |
| 1 1/2 | Brass | 0000000 | 000000 |
Pipe Size | ||||
|---|---|---|---|---|
| (A) | (B) | Material | Each | |
| 1 1/2 | 3/4 | Brass | 0000000 | 000000 |
Rocker-Lug Fire-Fighting Hose Fittings
The rocker lugs on these fittings allow for easy gripping, so you can quickly connect to fire hydrants and washdown equipment. Tighten with a hook-style spanner wrench (sold separately).
Fittings that swivel until tightened rotate to help prevent kinking during installation.
NH/NST (National Hose/National Standard) threads are only compatible with other NH/NST threads. Male NPSH (National Pipe Straight Hose) threads are compatible with female NPSH threads. Female NPSH threads are compatible with male NPSH, NPT, NPTF, and NPSM threads.
Aluminum fittings are more lightweight than brass fittings. They have good abrasion and corrosion resistance. Brass fittings are softer than aluminum fittings, so they’re easier to thread together. They have good corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Fire Hose Trade Size | Pipe Size | Each | |
Brass | |||
|---|---|---|---|
| 1 1/2 | 1 1/2 | 0000000 | 000000 |
| Pipe Size | Each | |
Aluminum | ||
|---|---|---|
| 1 1/2 | 0000000 | 000000 |
| Pipe Size | Each | |
Aluminum | ||
|---|---|---|
| 2 | 0000000 | 000000 |
| Pipe Size | Each | |
Aluminum | ||
|---|---|---|
| 1 1/2 | 0000000 | 000000 |
| Pipe Size | Each | |
Aluminum | ||
|---|---|---|
| 1 1/2 | 0000000 | 0000000 |
| Fire Hose Trade Size (A) | Pipe Size (B) | Each | |
Brass | |||
|---|---|---|---|
| 1 1/2 | 2 1/2 | 0000000 | 000000 |
| Pipe Size (A) | Fire Hose Trade Size (B) | Each | |
Brass | |||
|---|---|---|---|
| 1 1/2 | 2 1/2 | 0000000 | 000000 |
Pin-Lug Fire-Fighting Hose Fittings
The pin lugs on these fittings allow for easy gripping, so you can quickly connect to fire hydrants and washdown equipment. Tighten with a hook-style spanner wrench (sold separately). All are brass for good corrosion resistance.
NH/NST (National Hose/National Standard) threads are only compatible with other NH/NST threads.
For technical drawings and 3-D models, click on a part number.
