Lock-Open/Lock-Closed Drawer Slides
A lever locks the drawer in the open as well as closed position; push the lever to release the lock. These slides fully extend for convenient access to the back of drawers. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
Without drawer release items lock on the right slide only.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/660/6603a43-1569339932-p9@halfx_637049193029713561.png?ver=imagenotfound)
Mounting | |||||||||
---|---|---|---|---|---|---|---|---|---|
Closed Length | Travel Length | Width | Height | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
Steel | |||||||||
Without Drawer Release | |||||||||
10" | 10" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 0000000 |
12" | 12" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
14" | 14" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
16" | 16" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
18" | 18" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
20" | 20" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
22" | 22" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
24" | 24" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
26" | 26" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
28" | 28" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
30" | 30" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
32" | 32" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
36" | 36" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
40" | 40" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
48" | 48" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
54" | 54" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
60" | 60" | 3/4" | 3" | 360 | Ball Bearing | No | 1/4" | 0000000 | 000000 |
Drawer Slides
![](/prerenderstable/mvPRE/contents/gfx/imagecache/127/1277a78c1-h02d-digital-master1564407873-p9@halfx_636999866965520565.png?ver=imagenotfound)
These slides fully extend for convenient access to the back of drawers. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
For technical drawings and 3-D models, click on a part number.
Mounting | |||||||||
---|---|---|---|---|---|---|---|---|---|
Closed Lg. | Travel Lg. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
Steel | |||||||||
Without Drawer Release | |||||||||
12" | 12" | 3/4" | 2 1/16" | 270 | Ball Bearing | Yes | No. 10 | 0000000 | 000000 |
14" | 14" | 3/4" | 2 1/16" | 265 | Ball Bearing | Yes | No. 10 | 0000000 | 00000 |
16" | 16" | 3/4" | 2 1/16" | 260 | Ball Bearing | Yes | No. 10 | 0000000 | 00000 |
18" | 18" | 3/4" | 2 1/16" | 250 | Ball Bearing | Yes | No. 10 | 0000000 | 00000 |
304 Stainless Steel | |||||||||
Without Drawer Release | |||||||||
12" | 12 9/16" | 15/16" | 2 13/16" | 595 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
14" | 14 9/16" | 15/16" | 2 13/16" | 590 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
16" | 16 9/16" | 15/16" | 2 13/16" | 570 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
18" | 18 9/16" | 15/16" | 2 13/16" | 550 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
20" | 20 9/16" | 15/16" | 2 13/16" | 530 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
22" | 22 9/16" | 15/16" | 2 13/16" | 500 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
24" | 24 9/16" | 15/16" | 2 13/16" | 475 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
26" | 26 9/16" | 15/16" | 2 13/16" | 440 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
28" | 28 9/16" | 15/16" | 2 13/16" | 400 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
Partial-Extension Drawer Slides
![](/prerenderstable/mvPRE/contents/gfx/imagecache/128/12805a28c1-h02d-digital-master1564062828-p9@halfx_636996416401648586.png?ver=imagenotfound)
Slides only extend 3/4 of the closed length to reduce the chance that a heavy load will tip your cabinet. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
Stainless steel slides won’t rust in wet or frequently cleaned environments.
Slides without a drawer release prevent drawers from being removed. Because they don’t come apart, these slides provide the most support for drawers containing heavy items.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Closed Lg. | Travel Lg. | For Max. Drawer Wd. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
304 Stainless Steel | ||||||||||
Without Drawer Release | ||||||||||
12" | 8 3/4" | 24" | 1/2" | 2 13/16" | 250 | Ball Bearing | No | No. 8 | 00000000 | 0000000 |
Pass-Through Drawer Slides
![](/prerenderstable/mvPRE/contents/gfx/imagecache/335/3354n11p1-h02b-digitall@halfx_636951428157618523.png?ver=imagenotfound)
Open drawers from either side of a cart or cabinet—these slides let drawers pass through for two-way access to contents. Slides have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawers.
For technical drawings and 3-D models, click on a part number.
Mounting | |||||||||
---|---|---|---|---|---|---|---|---|---|
Closed Lg. | Travel Lg. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
Steel | |||||||||
19 11/16" | 19 13/16" | 11/16" | 2 3/16" | 250 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 0000000 |
23 5/8" | 23 7/8" | 11/16" | 2 3/16" | 260 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 000000 |
27 9/16" | 28" | 11/16" | 2 3/16" | 285 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 000000 |
31 1/2" | 32 1/16" | 11/16" | 2 3/16" | 300 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 000000 |
Soft-Closing Heavy Duty Base- and Under-Mount Drawer Slides
![](/prerenderstable/mvPRE/contents/gfx/imagecache/755/7550n111-1601052360-p9@halfx_637366311717493875.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/755/7550n111l1-1601052362-p9@halfx_637366311727511108.png?ver=imagenotfound)
To prevent drawers from slamming shut and support them even if they’re tall and full of heavy equipment, these steel slides have soft-closing bumpers and mount to the top and bottom of drawers. They’re commonly used in washdown areas such as kitchens because they have a powder coating to prevent rust and their ball bearings are encased to keep liquid out. Since they’re encased, the ball bearings spread weight more evenly than standard ball bearings, which makes them quieter and support more weight. To make sure the bearings don’t wobble or fall off track because of heavy loads, these slides have rail guides. Slides maintain a consistent amount of support as you fully extend them, so reaching deep inside drawers isn’t an issue. All are LGA tested according to DIN 4554 for safety, performance, and quality.

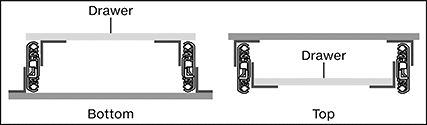

Bottom Slide | Top Slide | Mounting | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Closed Length | Travel Length | Mounting Location | Width | Height | Mounting Location | Width | Height | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Color | Pair | |
Powder-Coated Steel | ||||||||||||||
22 5/8" | 22" | Base | 4 5/16" | 3 1/8" | Under Mount | 1 9/16" | 2 5/16" | 275 | Ball Bearing | No | 1/4", No. 10, No. 6 | White | 00000000 | 0000000 |
Heavy Duty Base- and Under-Mount Drawer Slides
![](/prerenderstable/mvPRE/contents/gfx/imagecache/782/7820n11c1-1602608446-p9@halfx_637381872510960867.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/782/7820n11l1-1602608446-p9@halfx_637381872511043679.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/782/7820n15-@halfx_637381869453226659.png?ver=imagenotfound)
Mounting to the tops and bottoms of drawers, these steel slides support drawers even if they’re tall and hold heavy equipment. They’re often used in kitchens and other washdown areas because they’re powder-coated to resist rusting and their ball bearings are encased to keep out liquid. The encased ball bearings also distribute weight more evenly than standard ball bearings, which means they’re quieter and support more weight. To keep the bearings from wobbling or falling off track due to heavy loads, these slides have rail guides. Slides maintain a constant amount of support as you fully extend them, so accessing deep inside drawers isn’t a problem. All are LGA tested according to DIN 4554 for safety, performance, and quality.
Add slow-closing attachments to keep drawers from slamming.
For technical drawings and 3-D models, click on a part number.
Slides | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bottom Slide | Top Slide | Mounting | Optional Slow-Closing Attachments | |||||||||||||
Closed Length | Travel Length | Mounting Location | Width | Height | Mounting Location | Width | Height | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Color | Pair | Pair | ||
17 11/16" | 17.063" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 0000000 | 0000000 | 0000000 |
19 11/16" | 19.063" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 000000 | 0000000 | 000000 |
21 5/8" | 21" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 000000 | 0000000 | 000000 |
23 5/8" | 23" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 000000 | 0000000 | 000000 |
T-Slotted Framing Slides, Tracks, and Rollers
Slide drawers, panels, and doors with these tracks and rollers.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/553/5537t293c1-i02f-digital@halfx_637057295826954032.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/553/5537t434p4-h03-digital@halfx_637062242138344004.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/553/5537t429p3-h03-digital@halfx_637062245210613749.png?ver=imagenotfound)
Heavy duty rail slides have a zinc body and plastic liners for durability while sliding one rail along another. They attach with the included fasteners.
Rail slides with locking handle make it easy to position and keep the slide in place. You’ll need to drill a hole in the rail to install the handle. Cam handles engage when you push down on them. Clamp handles rotate freely when the handle is lifted and engage when it's released.
For Rail Ht. | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Single | Double, Quad | Triple | Lg. | Wd. | Capacity | Color | Carriage Material | Liner Material | Required Installation Hole Dia. | Mounting Fasteners Included | Each | |
Rail Slides | ||||||||||||
1 1/2", 40mm | 3", 80mm | 4 1/2", 120mm | 3 1/8" | 1 1/4" | Not Rated | Gray | Zinc | Plastic | __ | Yes | 00000000 | 000000 |
Rail Slides with Locking/Cam Handle | ||||||||||||
1 1/2", 40mm | 3", 80mm | 4 1/2", 120mm | 3 1/8" | 1 1/4" | Not Rated | Gray | Zinc | Plastic | 6mm | Yes | 00000000 | 00000 |
Rail Slides with Locking/Clamp Handle | ||||||||||||
1 1/2", 40mm | 3", 80mm | 4 1/2", 120mm | 3 1/8" | 1 1/4" | Not Rated | Gray | Zinc | Plastic | 6mm | Yes | 00000000 | 00000 |
Telescoping Slides
Good for use in pick-and-place applications, machine tool doors, and telescopic industrial press arms, these rugged slides are designed to carry heavy loads.
Note: Capacities listed are for side mounting. If mounted horizontally or upside down, load capacities are 70% of those listed.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/837/8379k6p1-d03c-digitall@halfx_636963697578509707.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/837/8379k6l1-d03c-digital-master1494610688-p9@halfx_636592873521880000.png?ver=imagenotfound)
Carriage Mounting | Rail Mounting | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Rail Lg., mm | Travel Lg., mm | Dynamic Load Cap., lbs. | O'all Ht., mm | Max. Temp., °F | No. of Holes | Hole Thread Size | No. of Holes | For Fastener Thread Size | Mounting Fasteners Included | Each | |
Zinc-Plated Steel Carriage and Steel Rail | |||||||||||
22 mm Rail Wd. | |||||||||||
210 | 111 | 160 | 11 | 335° | 3 | M4 | 3 | M4 | No | 000000 | 0000000 |
370 | 196 | 287 | 11 | 335° | 5 | M4 | 5 | M4 | No | 000000 | 000000 |
28 mm Rail Wd. | |||||||||||
290 | 148 | 434 | 13 | 335° | 4 | M5 | 4 | M5 | No | 000000 | 000000 |
450 | 232 | 664 | 13 | 335° | 6 | M5 | 6 | M5 | No | 000000 | 000000 |
610 | 315 | 893 | 13 | 335° | 8 | M5 | 8 | M5 | No | 000000 | 000000 |
770 | 399 | 1,123 | 13 | 335° | 10 | M5 | 10 | M5 | No | 000000 | 000000 |
930 | 475 | 1,424 | 13 | 335° | 12 | M5 | 12 | M5 | No | 000000 | 000000 |
1,010 | 517 | 1,539 | 13 | 335° | 13 | M5 | 13 | M5 | No | 0000000 | 000000 |
43 mm Rail Wd. | |||||||||||
610 | 313 | 1,666 | 22 | 335° | 8 | M8 | 8 | M8 | No | 0000000 | 000000 |
930 | 483 | 2,485 | 22 | 335° | 12 | M8 | 12 | M8 | No | 0000000 | 000000 |
1,010 | 518 | 2,795 | 22 | 335° | 13 | M8 | 13 | M8 | No | 0000000 | 000000 |
1,330 | 688 | 3,613 | 22 | 335° | 17 | M8 | 17 | M8 | No | 0000000 | 000000 |
1,490 | 758 | 4,236 | 22 | 335° | 19 | M8 | 19 | M8 | No | 0000000 | 000000 |
Chrome-Plated Steel Carriage and Chrome-Plated Steel Rail | |||||||||||
35 mm Rail Wd. | |||||||||||
210 | 129 | 578 | 17 | 212° | 3 | M6 | 3 | M6 | No | 0000000 | 000000 |
290 | 158 | 898 | 17 | 212° | 4 | M6 | 4 | M6 | No | 0000000 | 000000 |
370 | 200 | 967 | 17 | 212° | 5 | M6 | 5 | M6 | No | 0000000 | 000000 |
450 | 254 | 895 | 17 | 212° | 6 | M6 | 6 | M6 | No | 0000000 | 000000 |
530 | 284 | 1,047 | 17 | 212° | 7 | M6 | 7 | M6 | No | 0000000 | 000000 |
610 | 326 | 1,072 | 17 | 212° | 8 | M6 | 8 | M6 | No | 0000000 | 000000 |
690 | 367 | 1,094 | 17 | 212° | 9 | M6 | 9 | M6 | No | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/455/4556n11polished-steelpositive_front_positive_right_standard15_1643293384_872@halfx_637788686990895441.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/455/4556n11l1-1618578529-p9@halfx_637541573582096928.png?ver=imagenotfound)
Carriage Mounting | |||||||||
---|---|---|---|---|---|---|---|---|---|
Rail Lg., mm | Travel Lg., mm | Dynamic Load Cap., lbs. | O'all Ht., mm | Max. Temp., °F | No. of Holes | Hole Thread Size | Mounting Fasteners Included | Each | |
Zinc-Plated Steel Carriage and Zinc-Plated Steel Rail | |||||||||
28 mm Rail Wd. | |||||||||
290 | 296 | 172 | 26 | 335° | 4 | M5 | No | 0000000 | 0000000 |
450 | 464 | 262 | 26 | 335° | 6 | M5 | No | 0000000 | 000000 |
530 | 548 | 248 | 26 | 335° | 7 | M5 | No | 0000000 | 000000 |
610 | 633 | 214 | 26 | 335° | 8 | M5 | No | 0000000 | 000000 |
43 mm Rail Wd. | |||||||||
370 | 416 | 292 | 44 | 335° | 5 | M8 | No | 0000000 | 000000 |
450 | 486 | 410 | 44 | 335° | 6 | M8 | No | 0000000 | 000000 |
530 | 556 | 533 | 44 | 335° | 7 | M8 | No | 0000000 | 000000 |
610 | 626 | 659 | 44 | 335° | 8 | M8 | No | 0000000 | 000000 |
690 | 726 | 694 | 44 | 335° | 9 | M8 | No | 0000000 | 000000 |
850 | 866 | 640 | 44 | 335° | 11 | M8 | No | 0000000 | 000000 |
1,090 | 1,106 | 503 | 44 | 335° | 14 | M8 | No | 0000000 | 00000000 |
High-Load Low-Friction Telescoping Slides
![](/prerenderstable/mvPRE/contents/gfx/imagecache/625/6257k161498149583@halfx_636891919128306339.png?ver=imagenotfound)
With a row of crossed-roller bearings on each side of the rail, these slides have over twice the load capacity of standard low-friction slides and are better for handling shock loads. Use them for short-travel, high-speed applications where low-friction performance is a must.
Travel length is the total distance the carriage travels in both directions. For example, a slide with a 6" travel length travels 3" in each direction.
Note: Capacities listed are for horizontal mounting. If side mounted, load capacities are cut in half.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/620/6203k75l1-d03c-digital-master1494850179-p9@halfx_636592873420610000.png?ver=imagenotfound)
Carriage Mounting | Rail Mounting | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rail Lg. | Rail Ht. | Travel Lg. | Dynamic Load Cap., lbs. | Carriage Wd. | O'all Ht. | Max. Temp., °F | No. of Holes | Hole Thread Size | No. of Holes | For Fastener Thread Size | Mounting Fasteners Included | Each | |
Aluminum Carriage and Rail | |||||||||||||
1/2" Rail Wd. | |||||||||||||
4.56" | 0.31" | 3" | 260 | 1.06" | 0.53" | 180° | 4 | 6-32 | 2 | 6-32 | No | 0000000 | 0000000 |
6" | 0.31" | 4" | 280 | 1.06" | 0.53" | 180° | 4 | 6-32 | 2 | 6-32 | No | 000000 | 000000 |
8" | 0.31" | 6" | 290 | 1.06" | 0.53" | 180° | 4 | 6-32 | 2 | 6-32 | No | 000000 | 000000 |
10" | 0.31" | 8" | 320 | 1.06" | 0.53" | 180° | 4 | 6-32 | 2 | 6-32 | No | 000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/620/6203k75l1-d03c-digital-master1494850179-p9@halfx_636592873420610000.png?ver=imagenotfound)
Carriage Mounting | Rail Mounting | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rail Lg., mm | Rail Ht., mm | Travel Lg., mm | Dynamic Load Cap., lbs. | Carriage Wd., mm | O'all Ht., mm | Max. Temp., °F | No. of Holes | Hole Thread Size | No. of Holes | For Fastener Thread Size | Mounting Fasteners Included | Each | |
Aluminum Carriage and Rail | |||||||||||||
12.7 mm Rail Wd. | |||||||||||||
116 | 7.9 | 75 | 260 | 26.9 | 13 | 240° | 4 | M4 | 2 | M4 | No | 0000000 | 0000000 |
Telescoping Rail Sets
![](/prerenderstable/mvPRE/contents/gfx/imagecache/650/6500k16p1-@halfx_637166743569413629.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/650/6500k17l1-d03c-digital-master14946100401496149993-p9@halfx_636592873426640000.png?ver=imagenotfound)
Create your own positioning table or telescoping slide.
Steel rails have crossed-roller bearings that handle high loads for their small size.
440 Stainless steel rails have a stabilizing gear that won’t fall out of alignment from vibration and sudden shocks, so you don’t have to stop your system to manually realign them. However, they have shorter travel length than standard telescoping rails because of their rack and pinion system.
For technical drawings and 3-D models, click on a part number.
O'all, mm | Mounting | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Rail Lg., mm | Travel Lg., mm | Dynamic Load Cap., lbs. | Wd. | Ht. | Max. Temp., °F | No. of Holes per Rail | Hole Thread Size | Fasteners Included | Features | Includes | Each | |
Steel Rails | ||||||||||||
75 | 50 | 290 | 18 | 8 | 175° | 3 | M4 | No | __ | Four Rails Two Roller Bearing Cages Eight End Stops | 0000000 | 0000000 |
100 | 70 | 380 | 18 | 8 | 175° | 4 | M4 | No | __ | Four Rails Two Roller Bearing Cages Eight End Stops | 0000000 | 000000 |
150 | 100 | 580 | 18 | 8 | 175° | 6 | M4 | No | __ | Four Rails Two Roller Bearing Cages Eight End Stops | 0000000 | 000000 |
440 Stainless Steel Rails | ||||||||||||
90 | 42 | 750 | 12 | 6 | 210° | 6 | M3 | No | Stabilizing Gear | Four Rails Two Roller Bearing Cages Eight End Stops | 0000000 | 000000 |
150 | 66 | 2,550 | 18 | 8 | 210° | 6 | M4 | No | Stabilizing Gear | Four Rails Two Roller Bearing Cages Eight End Stops | 0000000 | 000000 |
200 | 101 | 5,300 | 22 | 11 | 210° | 5 | M5 | No | Stabilizing Gear | Four Rails Two Roller Bearing Cages Eight End Stops | 0000000 | 000000 |
