How to Identify and Measure Fittings
Pipe size is an industry designation, not the actual size. View information about how to measure threaded and unthreaded pipe and pipe fittings.
More
Oil-Resistant Buna-N Gaskets for Grooved-End Pipe Fittings
Create a tight seal on grooved-end pipe fittings that are exposed to oil. These gaskets are Buna-N, so they won't break down from oil.
For technical drawings and 3-D models, click on a part number.
| For Pipe Size  | ID | OD | Thick. | Max. Pressure, psi | Temperature Range, ° F | Color | Each | |
| 2 | 2 3/8" | 3 5/16" | 1 3/32" | 750 | -20° to 180° | Black | 00000000 | 000000 |
| 2 1/2 | 2 7/8" | 3 3/4" | 1 3/32" | 750 | -20° to 180° | Black | 0000000 | 00000 |
| 3 | 3 1/2" | 4 1/2" | 1 3/32" | 750 | -20° to 180° | Black | 00000000 | 00000 |
| 4 | 4 1/2" | 5 3/4" | 1 7/32" | 750 | -20° to 180° | Black | 00000000 | 00000 |
| 6 | 6 5/8" | 8" | 1 3/16" | 700 | -20° to 180° | Black | 0000000 | 000000 |
O-Rings for Brass Compression Tube Fittings for Air and Water
- For Use With: Air, Lubricated Air, Water
- Temperature Range: -20° to 212° F
Use these O-rings with brass compression tube fittings that have BSPP male threads. They create a seal on the BSPP male threads to guard against leaks.
For technical drawings and 3-D models, click on a part number.
| For Pipe Size | For Thread Type | For Gender | O-Ring Material | Max. Pressure | Each | |
| 1/8 | BSPP | Male | Buna-N Rubber, Steel | 2100 psi @ 72 ° F | 000000000 | 00000 |
| 1/4 | BSPP | Male | Buna-N Rubber, Steel | 2100 psi @ 72 ° F | 000000000 | 0000 |
| 3/8 | BSPP | Male | Buna-N Rubber, Steel | 1900 psi @ 72 ° F | 000000000 | 0000 |
| 1/2 | BSPP | Male | Buna-N Rubber, Steel | 1400 psi @ 72 ° F | 000000000 | 0000 |
| 3/4 | BSPP | Male | Buna-N Rubber, Steel | 1000 psi @ 72 ° F | 000000000 | 0000 |
| 1 | BSPP | Male | Buna-N Rubber, Steel | 1000 psi @ 72 ° F | 000000000 | 0000 |
Rings for Claw-Clamp and Bolt-Together
High-Vacuum Fittings for Stainless Steel Tubing
- For Use With: Air
- Max. Temperature: 400° F
- Tubing: Use with 304/304L Stainless Steel or 316/316L Stainless Steel
Create airtight seals in high-vacuum systems by placing these rings between two claw-clamp (ISO-K) or bolt-together (ISO-F) fittings. They contain a Viton® fluoroelastomer O-ring—when you clamp or bolt your fittings together, the O-ring compresses to establish the seal.
For technical drawings and 3-D models, click on a part number.
Claw-Clamp Connection | Flanged Connection | Material | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | O-Ring | Inner Ring | Max. Vacuum | Each | |
| 2 1/2" | 3.74" | 63 | ISO-K | 2 1/2" | 5.12" | __ | ISO-F | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 0000000 | 000000 |
| 3" | 4.33" | 80 | ISO-K | 3" | 5.71" | 80 | ISO-F | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 000000 | 00000 |
| 4" | 5.12" | 100 | ISO-K | 4" | 6.5" | 100 | ISO-F | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 0000000 | 00000 |
| 6" | 7.09" | 160 | ISO-K | 6" | 8.86" | 160 | ISO-F | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 0000000 | 00000 |
Rings for Quick-Clamp High-Vacuum Fittings for Stainless Steel Tubing
- For Use With: Air
- Temperature Range:
Rings with Fluoroelastomer O-Ring: 0° to 300° F
Rings with Silicone O-Ring: -50° to 390°F - Tubing: Use with 304/304L stainless steel, 316/316L stainless steel, or aluminum
- Specifications Met: ISO 2861

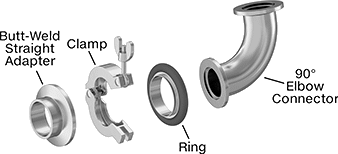

Use these rings with quick-clamp high-vacuum fittings. They consist of a stainless steel inner ring covered by an O-ring.
Silicone rubber O-rings withstand higher temperatures than fluoroelastomer ones.
Rings with a screen have a stainless steel screen to filter out large particles.
For technical drawings and 3-D models, click on a part number.
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Inner Ring Material | Max. Vacuum | Max. Pressure | Each | |
Fluoroelastomer Rubber O-Ring | ||||||||
|---|---|---|---|---|---|---|---|---|
Rings | ||||||||
| 1/2" | 1.18" | 10 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 0000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 00000 |
Rings with Stainless Steel Screen | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
Rings with Aluminum Outer Ring | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 100 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 75 psi @ 72° F | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 50 psi @ 72° F | 0000000 | 00000 |
Silicone Rubber O-Ring | ||||||||
Rings | ||||||||
| 1/2" | 1.18" | 10 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
Rings for Quick-Clamp High-Vacuum Fittings for Aluminum Tubing
- For Use With: Air
- Temperature Range: 0° to 350° F
- Tubing: Use with aluminum
- Specifications Met: ISO 2861
Create an airtight seal between quick-clamp (ISO-KF) fittings—these rings complete high-vacuum connections. A Viton® fluoroelastomer O-ring compresses between the two fittings to establish the seal.
For technical drawings and 3-D models, click on a part number.
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Inner Ring Material | O-Ring Material | Max. Vacuum | Each | |
| 1/2" | 1.18" | 10 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 00000 |
| 3/4" | 1.18" | 16 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 0000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 0000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 00000 |
