Flow Rails
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k143-@halfx_1707951079.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k141-@halfx_1707951079.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k147-@halfx_1707951059.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k149-@halfx_1707951059.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k152p1-e01d-digital@halfx_636876665492096000.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/567/5673k44p2-e01d-digital@halfx_636876562935551368.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k73p1-e01d-digital@halfx_636876604203495278.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/581/5815k61p1-e01d-digital@halfx_636876641024900468.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k145-@halfx_1707951099.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k101-@halfx_1707951079.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k103-@halfx_1707951059.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k116-@halfx_1707951099.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k122p1-e01d-digital@halfx_636876634378580647.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/523/5235t51p3-e01d-digital@halfx_636876661955121435.png?ver=imagenotfound)

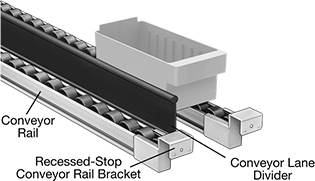

Use rails to convey packages and pallets in flow racks and confined spaces. They are easier to maneuver and take up less area than a full conveyor.
Rails with a galvanized steel frame have a thick coating for more corrosion resistance than rails with a power-coated frame. Rails with a powder-coated steel frame have mild corrosion resistance. They have a finished appearance but are prone to chipping if there’s impact.
Style D rails have a flange that extends beyond the wheel to keep material flowing along the channel.
Style P rails have a removable package stop to prevent material from falling off the rail.
Note: Capacities are based on a fully supported rail.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k143-@halfx_1707951079.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k141-@halfx_1707951079.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k147-@halfx_1707951059.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k149-@halfx_1707951059.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k152p1-e01d-digital@halfx_636876665492096000.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/567/5673k44p2-e01d-digital@halfx_636876562935551368.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k73p1-e01d-digital@halfx_636876604203495278.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/581/5815k61p1-e01d-digital@halfx_636876641024900468.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k145-@halfx_1707951099.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k101-@halfx_1707951079.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k103-@halfx_1707951059.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k116-@halfx_1707951099.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k122p1-e01d-digital@halfx_636876634378580647.png?ver=imagenotfound)
Wheel | Overall | Bearing | Mount. Slot | 10 ft. Lg. | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Dia. | Wd. | Spacing | Projection | Cap. per Wheel, lbs. | Wd. | Ht. | Type | Material | Lg. | Wd. | Mount. Hole Ctr.-to-Ctr. | Each | |
Zinc-Plated Steel Wheels with Galvanized Steel Frame | ||||||||||||||
A | 1 15/16" | 9/16" | 3" | 9/16" | 50 | 2" | 2 7/8" | Ball | Steel | __ | __ | 5" | 00000000 | 0000000 |
B | 1 15/16" | 9/16" | 3" | 3/8" | 50 | 2" | 2 7/8" | Ball | Steel | __ | __ | 5" | 00000000 | 000000 |
C | 1 15/16" | 9/16" | 3" | 9/16" | 50 | 2 13/16" | 2 7/8" | Ball | Steel | __ | __ | 5" | 00000000 | 000000 |
D | 1 15/16" | 9/16" | 3" | 9/16" | 50 | 2 23/32" | 3 1/2" | Ball | Steel | __ | __ | 5" | 00000000 | 000000 |
E | 1 7/8" | 1 1/2" | 3" | 3/8" | 150 | 3" | 2 1/2" | Ball | Steel | 2" | 3/8" | 3" | 0000000 | 000000 |
F | 1 15/16" | 5/8" | 3" | 17/32" | 20 | 3 5/16" | 2 1/2" | Ball | Steel | __ | __ | 1 3/4" | 0000000 | 000000 |
G | 1 7/8" | 13/16" | 3" | 3/8" | 100 | 2 7/8" | 3" | Ball | Steel | 1" | 3/8" | 1 1/2" | 0000000 | 000000 |
G | 2 1/4" | 13/16" | 3" | 1/2" | 300 | 3" | 3 1/8" | Ball | Steel | 1" | 3/8" | 1 1/2" | 00000000 | 000000 |
H | 1 15/16" | 9/16" | 1 1/2" | 3/8" | 100 | 3 3/4" | 3" | Ball | Steel | 1" | 3/8" | 1 1/2" | 0000000 | 000000 |
J | 1 15/16" | 9/16" | 1 1/2" | 9/16" | 50 | 3 3/4" | 2 7/8" | Ball | Steel | __ | __ | 5" | 00000000 | 000000 |
Zinc-Plated Steel Wheels with Powder-Coated Steel Frame | ||||||||||||||
A | 1 15/16" | 5/8" | 1 1/2" | 3/8" | 75 | 2 1/8" | 2 3/8" | Ball | Steel | __ | __ | 3" | 00000000 | 000000 |
A | 1 15/16" | 5/8" | 2" | 3/8" | 75 | 2 1/8" | 2 3/8" | Ball | Steel | __ | __ | 3" | 00000000 | 000000 |
B | 1 15/16" | 5/8" | 2" | 15/32" | 75 | 2" | 3" | Ball | Steel | __ | __ | 3" | 00000000 | 000000 |
C | 1 15/16" | 5/8" | 2" | 3/8" | 75 | 2 13/16" | 2 3/8" | Ball | Steel | __ | __ | 3" | 00000000 | 000000 |
F | 1 15/16" | 5/8" | 2" | 1/2" | 75 | 4" | 2 1/4" | Ball | Steel | __ | __ | 3" | 00000000 | 000000 |
K | 1 15/16" | 5/8" | 3" | 15/32" | 75 | 2 13/16" | 3" | Ball | Steel | __ | __ | 3" | 00000000 | 000000 |
L | 1 15/16" | 5/8" | 2" | 15/32" | 75 | 3 11/16" | 3" | Ball | Steel | __ | __ | 3" | 00000000 | 000000 |
Galvanized Steel Wheels with Galvanized Steel Frame | ||||||||||||||
E | 1 15/16" | 5/8" | 3" | 19/32" | 50 | 2 29/32" | 2 11/32" | Ball | Steel | __ | __ | 6" | 00000000 | 000000 |
G | 1 15/16" | 5/8" | 3" | 3/8" | 50 | 2 13/16" | 2 7/8" | Ball | Steel | __ | __ | 4" | 00000000 | 000000 |
M | 1 15/16" | 5/8" | 3" | 17/32" | 50 | 3 5/16" | 2 1/2" | Ball | Steel | __ | __ | 2 3/8" | 00000000 | 000000 |
ABS Plastic Wheels with Galvanized Steel Frame | ||||||||||||||
N | 1 5/8" | 13/16" | 3" | 1/4" | 25 | 3" | 2 3/8" | Plain | __ | 2" | 3/8" | 3" | 0000000 | 000000 |
N | 1 5/8" | 13/16" | 4 1/2" | 1/4" | 25 | 3" | 2 3/8" | Plain | __ | 2" | 3/8" | 3" | 0000000 | 00000 |
Nylon Plastic Wheels with Galvanized Steel Frame | ||||||||||||||
G | 2 7/8" | 1 5/8" | 3" | 7/8" | 330 | 3 5/8" | 3 1/2" | Ball | Steel | 1" | 3/8" | 1 1/2" | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/523/5235t51p3-e01d-digital@halfx_636876661955121435.png?ver=imagenotfound)
Roller | Overall | Mount. Slot | 10 ft. Lg. | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Style | Between Frame Wd. | Dia. | Spacing | Cap., lbs./ft. | Wd. | Ht. | Lg. | Wd. | Mount. Hole Ctr.-to-Ctr. | Each | |
Galvanized Steel Rollers with Galvanized Steel Frame | |||||||||||
P | 4 1/4" | 1.9" | 2" | 1,200 | 6 1/2" | 5 5/16" | 1" | 3/8" | 2" | 0000000 | 0000000 |
Build-Your-Own Flow Rails
![](/prerenderstable/mvPRE/contents/gfx/imagecache/589/5897k75c1-e01d-digital-master1552078055-p9@halfx_636598416846549923.png?ver=imagenotfound)
Configure wheels where you need them on these economical rails that you can cut to length.
Frames can be cut to your desired length and drilled for mounting. They have interlocking sides so you can connect rails side by side.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/589/5897k75p2-e01d-digital@halfx_636876652051994287.png?ver=imagenotfound)
Lg., ft. | Min. Wheel Spacing | Overall Wd. | Frame Material | Each | |
10 | 1 1/8" | 1 1/2" | Aluminum | 0000000 | 000000 |
Heavy Duty Flow Rails
![](/prerenderstable/mvPRE/contents/gfx/imagecache/516/5161t62-@halfx_637163421844344796.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/516/5161t101-@halfx_637163423096315019.png?ver=imagenotfound)
All-steel construction and tightly spaced wheels with double ball bearings gives these rails the strength needed to handle heavy loads in confined spaces. Drill holes to mount or weld in place.
Note: Capacities are based on a fully supported rail.
For technical drawings and 3-D models, click on a part number.
Flanged-Wheel Flow Rails
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k171p1-master1552078042-p9@halfx_636598416695368286.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/588/5880k172p1-master1552078072-p9@halfx_636598416717624156.png?ver=imagenotfound)
The flange on the wheels separates and guides packages as they flow down the rails. Rails are a lightweight solution when you don't need a complete conveyor in confined spaces such as flow racks and assembly areas. The flange location is based on facing the unloading end of the rail.
Note: Capacities are based on a fully supported rail.
For technical drawings and 3-D models, click on a part number.
Wheel | Overall | Bearing | Mount. Slot | 10 ft. Lg. | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Flange Location | Dia. | Wd. | Spacing | Projection | Cap. per Wheel, lbs. | Wd. | Ht. | Type | Material | Ball Bearing Material | Lg. | Wd. | Mount. Hole Ctr.-to-Ctr. | Each | |
ABS Plastic Wheels with Galvanized Steel Frame | |||||||||||||||
Left | 1 5/8" | 1 5/8" | 3" | 13/16" | 30 | 3" | 2 3/8" | Plain | __ | __ | 2" | 3/8" | 3" | 00000000 | 0000000 |
Right | 1 5/8" | 1 5/8" | 3" | 13/16" | 30 | 3" | 2 3/8" | Plain | __ | __ | 2" | 3/8" | 3" | 00000000 | 000000 |
Zinc-Plated Steel Wheels with Galvanized Steel Frame | |||||||||||||||
Left | 1 7/8" | 3 1/2" | 3" | 7/8" | 200 | 4 27/32" | 3" | Ball | Steel | Steel | 2" | 3/8" | 3" | 00000000 | 000000 |
Right | 1 7/8" | 3 1/2" | 3" | 7/8" | 200 | 4 27/32" | 3" | Ball | Steel | Steel | 2" | 3/8" | 3" | 00000000 | 000000 |
Multidirectional Flow Rails
Rotate materials in any direction on these flow rails. Use them to convey packages and pallets in flow racks, assembly areas, and confined spaces.
Ball transfers rotate to accommodate changes in direction.
Threaded-stud-mount ball transfers are attached to the rail with a stud and nut.
Flange-mount ball transfers are riveted in place.
Wheels have rollers around the wheel core to allow for multidirectional movement.
Note: Capacities are based on a fully supported rail.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/569/5697k71-@halfx_636936728492840168.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/569/5697k11-@halfx_636936730528764115.png?ver=imagenotfound)
Ball | O'all | 10 ft. Lg. | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Spacing | Dia. | Projection | Material | Material | Cap. per Ball, lbs. | Wd. | Ht. | Thread Size | Frame Wd. | Each | |
Threaded-Stud Mount | |||||||||||
3" | 1" | 1 1/2" | Steel | Zinc-Plated Steel | 65 | 2 1/2" | 2 1/2" | 1/4"-20 | 2 1/2" | 0000000 | 0000000 |
4" | 1" | 1 1/2" | Steel | Zinc-Plated Steel | 65 | 2 1/2" | 2 1/2" | 1/4"-20 | 2 1/2" | 0000000 | 000000 |
Flange Mount | |||||||||||
3" | 1" | 1 3/16" | Steel | Zinc-Plated Steel | 75 | 2 1/2" | 2 3/16" | __ | 2 1/2" | 0000000 | 000000 |
4" | 1" | 1 3/16" | Steel | Zinc-Plated Steel | 75 | 2 1/2" | 2 3/16" | __ | 2 1/2" | 0000000 | 000000 |
6" | 1" | 1 3/16" | Steel | Zinc-Plated Steel | 75 | 2 1/2" | 2 3/16" | __ | 2 1/2" | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/577/57705k73p2-e01d-digital@halfx_636876631328634054.png?ver=imagenotfound)
Wheel | O'all | 10 ft. Lg. | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Spacing | Dia. | Wd. | Projection | Material | Cap. per Wheel, lbs. | Wd. | Ht. | Bearing Type | Mounting Fasteners Included | Mounting Hole Dia. | Frame Wd. | Each | |
2" | 1.9" | 1 5/16" | 21/32" | Acetal Plastic | 25 | 2 3/16" | 2 1/2" | Plain | No | 1/4" | 1 1/2" | 00000000 | 000000000 |
4" | 1.9" | 1 5/16" | 21/32" | Acetal Plastic | 25 | 2 3/16" | 2 1/2" | Plain | No | 1/4" | 1 1/2" | 00000000 | 000000 |
