Floor Locks

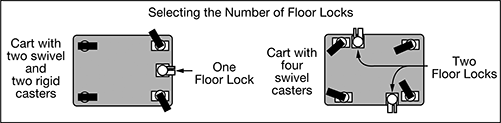

Stabilize carts, trucks, workbenches, and other mobile equipment during loading and unloading. Floor locks bolt or weld to the underside of your equipment and have a spring-loaded base with a nonskid floor pad to keep equipment stationary.
Note: Floor locks are not load rated. They are designed to brake your equipment in place, not lift it off the floor.
Pivoting base compensates for uneven floors.
For technical drawings and 3-D models, click on a part number.
Ht. | Mounting Plate | Mounting Hole Ctr.-to-Ctr. | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Caster Mount Ht. | Extended | Retracted | Clearance | Style | Lg. | Wd. | Lg. (A) | Lg. (B) | Wd. (A) | Wd. (B) | Mounting Fasteners Included | For Screw Size  | Color | Each | |
Painted Iron | |||||||||||||||
| 5 5/8"-5 7/8" | 5 5/8" | 4 9/16" | 1 5/16" | 1 | 4 13/16" | 4 1/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | Gray | 00000000 | 0000000 |
| 7 1/4"-7 1/2" | 7 1/2" | 6" | 1 3/4" | 1 | 6 1/2" | 4 3/4" | 5 1/4" | 4 15/16" | 3 3/8" | 2 7/16" | No | 1/2" | Gray | 00000000 | 000000 |
| 10 1/4"-10 5/8" | 10 1/4" | 9 1/8" | 1 3/8" | 1 | 6 1/2" | 4 3/4" | 5 1/4" | 4 15/16" | 3 3/8" | 2 7/16" | No | 1/2" | Gray | 00000000 | 000000 |
 | | |
Mounting Plate Style 1 | Mounting Plate Style 2 |
Ht. | Mounting Plate | Mounting Hole Ctr.-to-Ctr. | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Caster Mount Ht. | Extended | Retracted | Clearance | Style | Lg. | Wd. | Ln. | Wd. | Lg. (A) | Lg. (B) | Wd. (A) | Wd. (B) | Mounting Fasteners Included | For Screw Size | Each | |
Zinc-Plated Steel | ||||||||||||||||
| 5 5/8" | 5 7/8" | 4 7/8" | 1" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 000000 |
| 6 1/2" | 6 3/4" | 5 3/4" | 1" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 7 1/4" | 7 1/2" | 6 1/2" | 1" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 7 3/8" | 7 5/8" | 6 3/8" | 1 1/4" | 2 | 5 1/2" | 5" | 4 1/2" | 4 1/8" | __ | __ | __ | __ | No | 3/8" | 0000000 | 000000 |
| 7 1/2" | 7 3/4" | 6 1/2" | 1 1/4" | 1 | 6 1/4" | 4 1/2" | __ | __ | 5 1/4" | 4 15/16" | 3 3/8" | 2 7/16" | No | 1/2" | 0000000 | 000000 |
| 7 1/2" | 7 3/4" | 6 3/4" | 1" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 9 1/2" | 9 3/4" | 8 1/2" | 1 1/4" | 2 | 5 1/2" | 5" | 4 1/2" | 4 1/8" | __ | __ | __ | __ | No | 3/8" | 0000000 | 000000 |
| 9 1/2" | 9 3/4" | 8 3/4" | 1" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 10 1/8" | 10 3/8" | 9 1/8" | 1 1/4" | 1 | 6 1/4" | 4 1/2" | __ | __ | 5 1/4" | 4 15/16" | 3 3/8" | 2 7/16" | No | 1/2" | 0000000 | 000000 |
| 10 1/8" | 10 3/8" | 9 3/8" | 1" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 10 1/2" | 10 3/4" | 9 1/2" | 1 1/4" | 1 | 7 1/4" | 5" | __ | __ | 6 1/8" | 5 1/4" | 4 1/8" | 3 3/8" | No | 1/2" | 0000000 | 000000 |
304 Stainless Steel | ||||||||||||||||
| 5 5/8" | 5 5/8" | 4 1/2" | 1 1/8" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 000000 |
| 6 1/2" | 6 1/2" | 5 3/8" | 1 1/8" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 000000 |
| 7 1/2" | 7 1/2" | 6 1/2" | 1" | 1 | 4 1/2" | 4" | __ | __ | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 000000 |
Ht. | Mounting Plate | Mounting Hole Ctr.-to-Ctr. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Caster Mount Ht. | Extended | Retracted | Clearance | Style | Lg. | Wd. | Lg. (A) | Lg. (B) | Wd. (A) | Wd. (B) | Mounting Fasteners Included | For Screw Size | Each | |
Zinc-Plated Steel | ||||||||||||||
| 5 5/16"-5 1/2" | 5 5/8" | 4 7/8" | 3/4" | 1 | 4 5/8" | 3 3/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 000000 |
| 5 7/16"-5 5/8" | 5 3/4" | 5" | 3/4" | 1 | 4 5/8" | 3 3/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 6 3/16"-6 3/8" | 6 1/2" | 5 3/4" | 3/4" | 1 | 4 5/8" | 3 3/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 6 7/16"-6 5/8" | 6 3/4" | 6" | 3/4" | 1 | 4 5/8" | 3 3/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 6 15/16"-7 1/8" | 7 1/4" | 6 1/2" | 3/4" | 1 | 4 5/8" | 3 3/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 7 7/16"-7 5/8" | 7 3/4" | 7" | 3/4" | 1 | 4 5/8" | 3 3/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
| 9 7/16"-9 5/8" | 9 3/4" | 9" | 3/4" | 1 | 4 5/8" | 3 3/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | 0000000 | 00000 |
Ht. | Mounting Plate | Mounting Hole Ctr.-to-Ctr. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Caster Mount Ht. | Extended | Retracted | Clearance | Style | Lg. | Wd. | Lg. | Wd. | Mounting Fasteners Included | For Screw Size | Color | Each | |
Painted Steel | |||||||||||||
| 5"-7" | 7 1/4" | 3 3/8" | 3 7/8" | 2 | 4" | 4" | 2 5/8" | 2 3/8" | No | 3/8" | Black | 0000000 | 0000000 |
Adjustable-Height Floor Locks
Set these floor locks to the height you need to compensate for uneven and sloped floors. Use them to stabilize carts, trucks, workbenches, and other mobile equipment during loading and unloading. Floor locks bolt to the underside of your equipment and have a spring-loaded base with a nonskid floor pad to keep equipment stationary.
Note: Floor locks are not load rated. They are designed to brake your equipment in place, not lift it off the floor.
For technical drawings and 3-D models, click on a part number.
Mounting Plate | Mounting Hole Ctr.-to-Ctr. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Caster Mount Ht. | Ht. Range | Clearance | Lg. | Wd. | Lg. | Wd. | Mounting Fasteners Included | For Screw Size | Each | |
Side Retraction Pedal | ||||||||||
Aluminum | ||||||||||
| 6 1/2"-7 1/2" | 5 1/2"-8" | 2 1/2" | 4 3/4" | 3 3/4" | 3 5/8", 3" | 3", 2 5/8" | No | 3/8" | 0000000 | 0000000 |
| 8"-10 1/2" | 7"-11" | 4" | 4 3/4" | 3 3/4" | 3 5/8", 3" | 3", 2 5/8" | No | 3/8" | 0000000 | 000000 |
Side-Mount Floor Locks
These locks bolt or weld to the side of equipment that can't accommodate a floor lock underneath. They're compatible with a wide range of caster mount heights. Use them to stabilize carts, trucks, workbenches, and other mobile equipment during loading and unloading. Floor locks have a spring-loaded base with a nonskid floor pad to keep equipment stationary.
Note: Floor locks are not load rated. They are designed to brake your equipment in place, not lift it off the floor.
For technical drawings and 3-D models, click on a part number.
Ht. | Mounting Plate | Mounting Hole Ctr.-to-Ctr. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Caster Mount Ht. | Extended | Retracted | Clearance | Lg. | Wd. | Lg. | Wd. (A) | Wd. (B) | Mounting Fasteners Included | For Screw Size | Each | |
Left Side Mounting | ||||||||||||
Top Retraction Pedal | ||||||||||||
Chrome-PlatedSteel | ||||||||||||
| 11" | 11 1/8" | 8 7/8" | 2" | 4 1/2" | 6 1/2" | 2 29/32" | 4 13/32" | 3 19/32" | No | 3/8" | 00000000 | 000000 |
Right Side Mounting | ||||||||||||
Top Retraction Pedal | ||||||||||||
Chrome-PlatedSteel | ||||||||||||
| 11" | 11 1/8" | 8 7/8" | 2" | 4 1/2" | 6 1/2" | 2 29/32" | 4 13/32" | 3 19/32" | No | 3/8" | 000000000 | 00000 |
