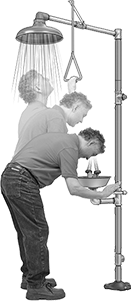

Shower Stations with Eye Wash
![](/prerenderstable/mvPRE/contents/gfx/imagecache/555/55505t2c1-i01bl1571005432@halfx_637065843306759702.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/555/5557t16p1-i01b-digital@halfx_637065851359143957.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/555/5557t1p1-i01b-digital@halfx_637065849184466163.png?ver=imagenotfound)
Connect to your facility's plumbing and use a mixing valve (sold separately) to ensure water flows at a comfortable temperature. The stations without a bowl do not have drain connections and should be used in areas with a floor drain.
Stations with eye and face coverage provide greater flow than stations with eye coverage.
PVC components withstand harsh acids and other caustic chemicals that can wear away stainless steel.
Stainless steel components have excellent chemical and corrosion resistance.
Shower Head | Inlet | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pipe Material | Valve Material | Material | Dia. | No. of Eye Wash Spray Heads | Bowl Material | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Mount. Hole Dia. | Fasteners Included | Specifications Met | Each | |
Eye Coverage | |||||||||||||||
Open Bowl | |||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 10" | 2 | ABS | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 7/16" | No | ANSI Z358.1 | 000000 | 0000000 |
PVC | 316 Stainless Steel | ABS | 10" | 2 | ABS | Pull Handle, Push Handle | Socket Weld | 2 | __ | Female | 11/16" | No | ANSI Z358.1 | 00000000 | 00000000 |
304 Stainless Steel | 316 Stainless Steel | 304 Stainless Steel | 10" | 2 | 304 Stainless Steel | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 5/8" | No | ANSI Z358.1 | 0000000 | 00000000 |
Covered Bowl | |||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 10" | 2 | 304 Stainless Steel | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 7/16" | No | ANSI Z358.1 | 0000000 | 00000000 |
304 Stainless Steel | 316 Stainless Steel | 304 Stainless Steel | 10" | 2 | 304 Stainless Steel | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 5/8" | No | ANSI Z358.1 | 00000000 | 00000000 |
Without Bowl | |||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 10" | 2 | __ | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 7/16" | No | ANSI Z358.1 | 000000 | 000000 |
Eye and Face Coverage | |||||||||||||||
Open Bowl | |||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 10" | 2 | ABS | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 7/16" | No | ANSI Z358.1 | 0000000 | 000000 |
PVC | 316 Stainless Steel | ABS | 10" | 2 | ABS | Pull Handle, Push Handle | Socket Weld | 2 | __ | Female | 11/16" | No | ANSI Z358.1 | 00000000 | 00000000 |
304 Stainless Steel | 316 Stainless Steel | 304 Stainless Steel | 10" | 4 | 304 Stainless Steel | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 5/8" | No | ANSI Z358.1 | 0000000 | 00000000 |
Covered Bowl | |||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 10" | 2 | 304 Stainless Steel | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 7/16" | No | ANSI Z358.1 | 00000000 | 00000000 |
304 Stainless Steel | 316 Stainless Steel | 304 Stainless Steel | 10" | 2 | 304 Stainless Steel | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 5/8" | No | ANSI Z358.1 | 00000000 | 00000000 |
Without Bowl | |||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 10" | 2 | __ | Pull Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | 7/16" | No | ANSI Z358.1 | 0000000 | 000000 |
Through-Wall Freeze-Resistant Shower Stations with Eye Wash
![](/prerenderstable/mvPRE/contents/gfx/imagecache/912/9120t58-@halfx_637075145545578369.png?ver=imagenotfound)
You can install the shower head and eye wash in an unheated area, but the valve must be installed indoors to keep water flowing at a comfortable temperature. Station connects to your facility's plumbing and drains automatically to prevent the pipes from freezing.
Shower Head | Inlet for Crank Handle | Inlet for Push Handle | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pipe Material | Valve Material | Material | Dia. | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Pipe Connection Type | Pipe Size | Thread Type | Gender | For Max. Wall Thick. | Specifications Met | Each | |
Eye and Face Coverage | ||||||||||||||||
Galvanized Steel | Chrome-Plated Bronze | ABS | 8" | Crank Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | Threaded | 1/2 | NPT | Female | 12 3/4" | ANSI Z358.1 | 0000000 | 000000000 |

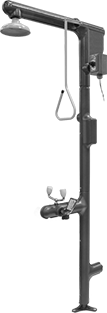

Freeze-Resistant Shower Stations with Eye Wash
![](/prerenderstable/mvPRE/contents/gfx/imagecache/978/9789t45-@halfx_637075204463820437.png?ver=imagenotfound)
These heated stations can be fully exposed to the elements without freezing in temperatures as low as -50° F. They connect to your facility's plumbing and drain automatically to prevent the pipes from freezing. Housed in a water- and dust-tight junction box with a pilot light, the thermostat keeps the water at a comfortable temperature.
Shower Head | Inlet | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pipe Material | Valve Material | Material | Dia. | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Electrical Connection Type | Voltage | No. of Wire Leads | Mount. Hole Dia. | Fasteners Included | Environmental Rating | Each | |
Eye and Face Coverage | ||||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 8" | Pull Handle, Push Handle | Threaded | 1 | NPT | Male | Hardwire | 120V AC | 3 | 1/2" | No | NEMA 4X | 0000000 | 000000000 |
Hazardous Location Freeze-Resistant Shower Stations with Eye Wash
![](/prerenderstable/mvPRE/contents/gfx/imagecache/978/9789t45-@halfx_637075204463820437.png?ver=imagenotfound)
Stations are FM approved for Class I, Division 2, Groups B, C, and D hazardous locations. They are heated and can be fully exposed to the elements without freezing in temperatures as low as -50° F. They connect to your facility's plumbing and drain automatically to prevent the pipes from freezing. Housed in a water- and dust-tight junction box with a pilot light, the thermostat keeps the water at a comfortable temperature. Junction boxes are rated NEMA 4X.
Shower Head | Inlet | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pipe Material | Valve Material | Material | Dia. | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Electrical Connection Type | Voltage | No. of Wire Leads | Mount. Hole Dia. | Fasteners Included | Specifications Met | Each | |
Eye and Face Coverage | ||||||||||||||||
Galvanized Steel | Chrome-Plated Brass | ABS | 8" | Pull Handle, Push Handle | Threaded | 1 | NPT | Male | Hardwire | 120V AC | 3 | 1/2" | No | FM Approved; ANSI Z358.1 | 0000000 | 000000000 |
Spray Heads for Eye Wash Stations
![](/prerenderstable/mvPRE/contents/gfx/imagecache/555/5557t68p1-i01b-digital@halfx_637065849639066090.png?ver=imagenotfound)
Manufacturer | Manufacturer Part No. | Pkg. Qty. | Pkg. | |
Bradley | S45-2453 | 2 | 0000000 | 0000000 |
Each | ||||
---|---|---|---|---|
Guardian | AP470-001 | __ | 0000000 | 00000 |
Guardian | AP470-001LDC | __ | 0000000 | 00000 |
Guardian | AP470-021 | __ | 0000000 | 00000 |
Guardian | AP470-021LDC | __ | 0000000 | 00000 |
Haws | SP11FC | __ | 0000000 | 000000 |
Haws | SP65 | __ | 0000000 | 000000 |
Speakman | RPG38-0379 | __ | 0000000 | 00000 |
Speakman | RPG38-0390 | __ | 0000000 | 00000 |
Bowls for Eye Wash Stations
On/Off Valves with Push Handle for Eye Wash Stations
![](/prerenderstable/mvPRE/contents/gfx/imagecache/554/5549t34p1-i01b-digital@halfx_637065848349721892.png?ver=imagenotfound)
Manufacturer | Manufacturer Part No. | Pipe Connection Type | Pipe Size | Thread Type | Gender | Each | |
Chrome-Plated Brass | |||||||
---|---|---|---|---|---|---|---|
Bradley | S45-122 | Threaded | 1/2 | NPT | Female | 0000000 | 000000 |
Guardian | AP600-101H | Threaded | 1/2 | NPT | Female | 0000000 | 000000 |
Haws | SP229 | Threaded | 1/2 | NPT | Female | 0000000 | 000000 |
Speakman | SE-910 | Threaded | 1/2 | NPT | Female | 0000000 | 00000 |
304 Stainless Steel | |||||||
Speakman | SE-910-SSBV | Threaded | 1/2 | NPT | Female | 0000000 | 000000 |
316 Stainless Steel | |||||||
Guardian | AP620-101H | Threaded | 1/2 | NPT | Female | 00000000 | 000000 |
Haws | SP232 | Threaded | 1/2 | NPT | Female | 0000000 | 000000 |
Push Handles for Eye Wash Stations
![](/prerenderstable/mvPRE/contents/gfx/imagecache/400/4006n11p2-5535t11-@halfx_637242679799608152.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/598/5984t56-@halfx_889ox_1712694611.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/400/4006n11p1-@halfx_637242679904891120.png?ver=imagenotfound)
With a large label showing where and how to activate them, these push handles help your eye wash station meet ANSI standards. Each works with a specific Bradley or Guardian station.
Spray Head Dust Covers for Eye Wash Stations
Pipe Nipples for Eye Wash Stations
![](/prerenderstable/mvPRE/contents/gfx/imagecache/555/5557t4p1-i01b-digital@halfx_637065847725916686.png?ver=imagenotfound)
Manufacturer | Manufacturer Part No. | Lg. | Pipe Connection Type | Threading | Pipe Size | Thread Type | Gender | Each | |
Chrome-Plated Brass | |||||||||
---|---|---|---|---|---|---|---|---|---|
Guardian | BI136-02-04 | 2 1/4" | Threaded | Fully Threaded | 3/8 | NPT | Male | 000000 | 000000 |
Pull Straps for Eye Wash Stations
![](/prerenderstable/mvPRE/contents/gfx/imagecache/538/5388t15p1-i01b-digital@halfx_637065848222933412.png?ver=imagenotfound)
Manufacturer | Manufacturer Part No. | For Manufacturer Model Name | Material | Each | |
Honeywell | 32-000102-0000 | Fendall Porta Stream I, Fendall Porta Stream II, Fendall Porta Stream III | Neoprene | 0000000 | 000000 |
Spray Head Aerators for Eye Wash Stations
![](/prerenderstable/mvPRE/contents/gfx/imagecache/560/5603t64p1-i01b-digital@halfx_637065848716155964.png?ver=imagenotfound)
Manufacturer | Manufacturer Part No. | Each | |
Speakman | RPG05-1177 | 0000000 | 000000 |
Spray Hose for Eye Wash Stations
![](/prerenderstable/mvPRE/contents/gfx/imagecache/556/5568t21p1-i01b-digital@halfx_637065850284730182.png?ver=imagenotfound)
Attach this hose to an eye wash station to rinse your eyes, face, or any part of your body.
Inlet | |||||||
---|---|---|---|---|---|---|---|
Valve Material | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Each | |
Chrome-Plated Brass | Squeeze Trigger | Threaded | 1/2 | NPT | Male | 0000000 | 0000000 |
