Electrical Protection Blanket Rolls
 |
Cut with scissors or a utility knife to cover irregularly shaped electrical hazards.
ASTM Voltage Class—ASTM defines voltage classes for rubber insulating blankets according to how much protection they provide. Before working with electrical equipment, make sure you have the right protection by identifying the maximum voltage you will be exposed to.
ASTM Voltage Class | For Max. Voltage, V AC | Wd., ft. | Max. Lg., ft. | Thk., mil | Wt. per Sq. yd., oz. | Clarity | Color | Specs. Met | Per Ft. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Neoprene | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0 | 1,000 | 3 | 30 | 31 | 42 | Opaque | Yellow | ASTM F2320 | 00000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical Protection Blankets
 |  |

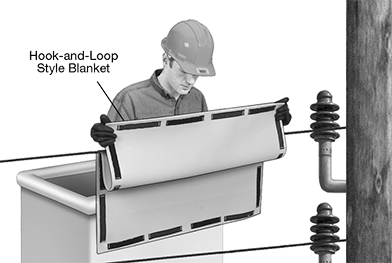

Wrap these rubber blankets around power lines and electrical equipment to protect against contact with high voltage. Use clamps to hold blanket in place.
Blankets come tested and marked with the test date. They should be tested once a year.
ASTM Voltage Class—ASTM defines voltage classes for rubber insulating blankets according to how much protection they provide. Before working with electrical equipment, make sure you have the right protection by identifying the maximum voltage you will be exposed to.
ASTM Voltage Class | For Max. Voltage, V AC | Wd., ft. | Lg., ft. | Thk., mil | Wt., lb. | Grommet Location (Ctr.-to-Ctr.) | Clarity | Color | Features | Specs. Met | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EPDM | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0 | 1,000 | 3 | 3 | 62 | 2 | — | Opaque | Yellow | Hook and Loop Fasteners | ASTM D1048 | 0000000 | 0000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 | 17,000 | 3 | 3 | 125 | 8 | Sides (18") | Opaque | Black | — | ASTM D1048 | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 36,000 | 3 | 3 | 125 | 8 | Sides (18") | Opaque | Orange | — | ASTM D1048 | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
