Extra-Strength Dock-Mount Bumpers
Vertical Mount
Vertical Mount with 3/8" Thick Steel Face Plate
Multiple layers of shock-absorbing rubber make these bumpers more chip and abrasion resistant than standard dock bumpers. They prevent damage to docks and vehicles. Layers are strung on rods and bolted together at both ends with angle brackets.
Bumpers with steel face plate are stronger than bumpers without a face plate.
For technical drawings and 3-D models, click on a part number.
Overall | Ctr.-to-Ctr. Mount. Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Bumper Wd. | Material | Hardness Rating | Wd. | Ht. | Mount. Fasteners Included | No. of Mount. Holes | Mount. Hole Dia. | Each | |

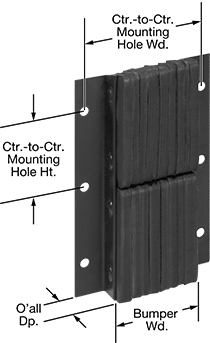

Vertical Mount | ||||||||||||
| 20" | 13" | 4 1/2" | 7" | Rubber | Hard | 11" | 7" | No | 6 | 13/16" | 0000000 | 0000000 |
| 20" | 13" | 9" | 7" | Rubber | Hard | 11" | 7" | No | 6 | 3/4" | 00000000 | 000000 |
| 20" | 13" | 10 1/2" | 7" | Rubber | Hard | 11" | 6" | No | 8 | 3/4" | 00000000 | 000000 |
| 20" | 14" | 6" | 8" | Rubber | Hard | 12" | 7" | No | 6 | 13/16" | 0000000 | 000000 |
| 24" | 13" | 4 1/2" | 7" | Rubber | Hard | 11" | 9" | No | 6 | 13/16" | 0000000 | 000000 |
| 24" | 14" | 6" | 8" | Rubber | Hard | 12" | 9" | No | 6 | 13/16" | 0000000 | 000000 |
| 36" | 13" | 4 1/2" | 7" | Rubber | Hard | 11" | 10" | No | 8 | 13/16" | 0000000 | 000000 |

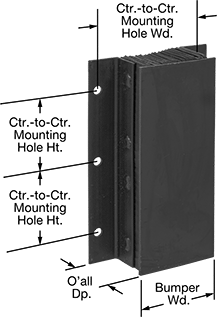

Vertical Mount with 3/8" Thick Steel Face Plate | ||||||||||||
| 20" | 13" | 5 1/4" | 8" | Rubber | Hard | 11" | 7" | No | 6 | 13/16" | 0000000 | 000000 |
| 20" | 13" | 6 3/4" | 8" | Rubber | Hard | 11" | 7" | No | 6 | 13/16" | 0000000 | 000000 |
| 24" | 13" | 5 1/4" | 8" | Rubber | Hard | 11" | 9" | No | 6 | 13/16" | 0000000 | 000000 |
| 24" | 13" | 6 3/4" | 8" | Rubber | Hard | 11" | 9" | No | 6 | 13/16" | 0000000 | 000000 |
