Extra-Strength Dock-Mount Bumpers
Horizontal Mount
Horizontal Mount with 3/8" Thick Steel Face Plate
Multiple layers of shock-absorbing rubber make these bumpers more chip and abrasion resistant than standard dock bumpers. They prevent damage to docks and vehicles. Layers are strung on rods and bolted together at both ends with angle brackets.
Bumpers with steel face plate are stronger than bumpers without a face plate.
For technical drawings and 3-D models, click on a part number.

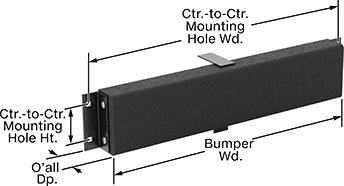

Overall | Ctr.-to-Ctr. Mount. Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Bumper Wd. | Material | Hardness Rating | Wd. | Ht. | Mount. Fasteners Included | No. of Mount. Holes | Mount. Hole Dia. | Each | |
Horizontal Mount | ||||||||||||
| 6" | 26" | 4 1/2" | 20" | Rubber | Hard | 24" | 3" | No | 4 | 3/4" | 0000000 | 000000 |
| 6" | 38" | 4 1/2" | 32" | Rubber | Hard | 36" | 3" | No | 4 | 3/4" | 0000000 | 000000 |
| 10" | 14" | 4 1/2" | 8" | Rubber | Hard | 12" | 6" | No | 4 | 3/4" | 00000000 | 00000 |
| 10" | 14" | 6" | 8" | Rubber | Hard | 12" | 6" | No | 4 | 3/4" | 00000000 | 00000 |
| 10" | 16" | 4 1/2" | 10" | Rubber | Hard | 14" | 6" | No | 4 | 3/4" | 0000000 | 00000 |
| 10" | 16" | 6" | 10" | Rubber | Hard | 14" | 6" | No | 4 | 3/4" | 0000000 | 00000 |
| 10" | 16" | 9" | 10" | Rubber | Hard | 14" | 6" | No | 4 | 3/4" | 0000000 | 000000 |
| 10" | 16" | 10 1/2" | 10" | Rubber | Hard | 14" | 6" | No | 4 | 3/4" | 00000000 | 000000 |
| 10" | 20" | 4 1/2" | 14" | Rubber | Hard | 18" | 6" | No | 4 | 3/4" | 0000000 | 00000 |
| 10" | 20" | 6" | 14" | Rubber | Hard | 18" | 6" | No | 4 | 3/4" | 0000000 | 000000 |
| 10" | 26" | 4 1/2" | 20" | Rubber | Hard | 24" | 6" | No | 4 | 3/4" | 0000000 | 000000 |
| 10" | 26" | 6" | 20" | Rubber | Hard | 24" | 6" | No | 4 | 3/4" | 0000000 | 000000 |
| 10" | 26" | 9" | 20" | Rubber | Hard | 24" | 6" | No | 4 | 3/4" | 0000000 | 000000 |
| 10" | 26" | 12" | 20" | Rubber | Hard | 24" | 6" | No | 4 | 3/4" | 00000000 | 000000 |
| 10" | 38" | 4 1/2" | 32" | Rubber | Hard | 36" | 6" | No | 4 | 3/4" | 0000000 | 000000 |
| 10" | 38" | 6" | 32" | Rubber | Hard | 36" | 6" | No | 4 | 3/4" | 0000000 | 000000 |
| 12" | 14" | 4 1/2" | 8" | Rubber | Hard | 12" | 4" | No | 6 | 3/4" | 0000000 | 00000 |
| 12" | 14" | 6" | 8" | Rubber | Hard | 12" | 4" | No | 6 | 3/4" | 0000000 | 000000 |
| 12" | 16" | 4 1/2" | 10" | Rubber | Hard | 14" | 4" | No | 6 | 3/4" | 0000000 | 00000 |
| 12" | 16" | 6" | 10" | Rubber | Hard | 14" | 4" | No | 6 | 3/4" | 0000000 | 000000 |
| 12" | 20" | 4 1/2" | 14" | Rubber | Hard | 18" | 4" | No | 6 | 3/4" | 0000000 | 000000 |
| 12" | 26" | 4 1/2" | 20" | Rubber | Hard | 24" | 4" | No | 6 | 3/4" | 0000000 | 000000 |
| 12" | 26" | 6" | 20" | Rubber | Hard | 24" | 4" | No | 6 | 3/4" | 0000000 | 000000 |
| 12" | 38" | 4 1/2" | 32" | Rubber | Hard | 36" | 4" | No | 6 | 3/4" | 0000000 | 000000 |
Horizontal Mount with 3/8" Thick Steel Face Plate | ||||||||||||
| 10" | 16" | 5 1/4" | 10" | Rubber | Hard | 14" | 6" | No | 4 | 13/16" | 0000000 | 000000 |
| 10" | 16" | 6 3/4" | 10" | Rubber | Hard | 14" | 6" | No | 4 | 13/16" | 0000000 | 000000 |
| 10" | 26" | 5 1/4" | 20" | Rubber | Hard | 24" | 6" | No | 4 | 13/16" | 0000000 | 000000 |
| 10" | 26" | 6 3/4" | 20" | Rubber | Hard | 24" | 6" | No | 4 | 13/16" | 0000000 | 000000 |
| 12" | 16" | 5 1/4" | 10" | Rubber | Hard | 14" | 4" | No | 6 | 13/16" | 0000000 | 000000 |
| 12" | 26" | 5 1/4" | 20" | Rubber | Hard | 24" | 4" | No | 6 | 13/16" | 0000000 | 000000 |
Extended-Width Extra-Strength Dock-Mount Bumpers
Wide enough to form a seal against trucks, these bumpers stop cooled or heated air from escaping your dock. They’re often used in refrigeration applications. These bumpers have multiple layers of rubber to absorb shock and resist chipping and abrasion better than standard dock bumpers.
For technical drawings and 3-D models, click on a part number.
