With a high-leverage arm, these presses provide more force with less effort than standard presses. With the pull of a lever, these presses deliver force for staking, riveting, and removing bearings and arbors. The removable rotating base-plate press accommodates shafts and arbors with different diameters. Also known as arbor presses.

Adjustable lever works like a ratchet wrench to move the lever to a convenient position.

Handwheel allows you to quickly advance the ram.

For technical drawings and 3-D models, click on a part number.

For applications requiring the greatest force, this press has a hydraulic pump that provides 30,000 lbs. of pressure. With the pull of a lever, it delivers force for staking, riveting, and removing bearings and arbors. Also known as an arbor press. The adjustable safety valve screw lets you set the pressure below the maximum. You can use the two included V-blocks or press plates (sold separately) as a base plate.

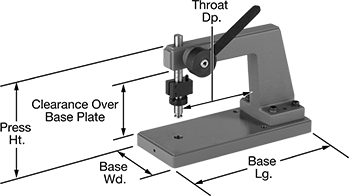

For pressing and assembling small parts, these presses provide the right amount of force in a compact size.

3 3/4" maximum stroke length press has an adjustable arm to modify leverage. The base has a slot for arbors and two holes for attaching dies and tools. To attach tools to the ram, insert the tool into the reamed hole on the bottom and thread a 10-32 set screw (not included) into the tapped hole on the side.

For technical drawings and 3-D models, click on a part number.

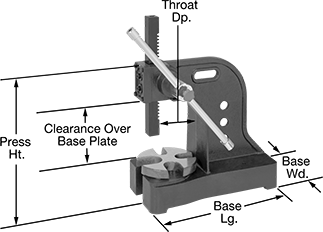

Removable rotating base-plate press accommodates shafts and arbors with different diameters. For pressing and assembling small parts, this press provides the right amount of force in a compact size. It has an adjustable-length arm to modify leverage.

For technical drawings and 3-D models, click on a part number.

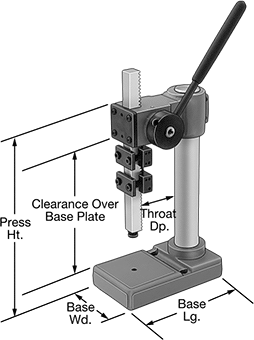

Move the head of these presses to accommodate your workpiece. For pressing and assembling small parts, these presses provide the right amount of force in a compact size.

8 7/8" maximum stroke length press has an adjustable handle for right- or left-hand operation and a T-slot in the base to hold dies.

For technical drawings and 3-D models, click on a part number.

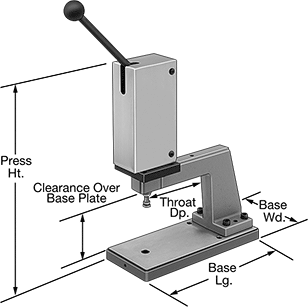

These presses reach past the edge of your material, and they accommodate long and unusual-shape workpieces. For pressing and assembling small parts, they provide the right amount of force in a compact size.

1 3/4" maximum stroke length press has a handle that provides low-effort pressing by internally increasing pressing force at the end of the stroke. The handle is positioned in the center of the press, making it usable in right- or left-hand operation.

For technical drawings and 3-D models, click on a part number.

For punching, pressing, and swaging operations, these presses provide consistent pressure and faster operation than manual presses. The air power controls the pressing and return of the ram. The two-handed safety controls meet OSHA 29 CFR 1910.217 standards for mechanical power presses. These presses can be used with die sets (sold separately).

For technical drawings and 3-D models, click on a part number.

Constructed with welded, reinforced steel channel, these presses have up to three times the force of standard hand-operated floor-mount presses. A release valve controls the ram. They have a self-locking hoist to raise and lower the table. Mobil DTE 24 Ultra or equivalent hydraulic oil is required (sold separately).

Movable ram can be positioned around large materials.

These presses have a control lever to advance and return the ram. Adjust the table height with the removable table pins. Mobil DTE 24 Ultra or equivalent hydraulic oil is required (sold separately).

These presses have a jack mounted on the top cross bar that drives down a press plate instead of a ram. The plate automatically returns after pressing. Raise or lower the table by moving the supports in the vertical uprights.

Accessory kit contains components for holding workpieces and modifying the press plate.
