Clean Room Tape | McMaster-Carr

Filter by

Tape Type

Environment

Color

System of Measurement

Width

Adhesive Location

Form

Material

Adhesive Type

Tape Construction

Overall Thickness

Material Thickness

Spool ID

Length

18 yd.

36 yd.

Spool Material

Plastic

Adhesion to Steel

Less than 50 ozf/in. wd.

50 ozf/in. wd. to 99 ozf/in. wd.

Liner Type

Tensile Strength

Roll Diameter

Maximum Temperature

Minimum Temperature

Clean Room Standard

RoHS

Export Control Classification Number (ECCN)

EAR99

DFARS Specialty Metals

REACH

45 Products

Clean Room Foam Mounting Tape

Repair ceiling tiles and pass-through windows in clean rooms with this foam tape with adhesive on both sides. The closed-cell foam restricts absorption.

Wd.	Lg., ft.	Overall Thick.	Material	Adhesive Location	Adhesive Type	Temperature Range, °F	Cell Type	Tensile Strength, psi	Adhesion to Steel, oz./in. wd.	Environmental Rating	Color		Each
1"	54	0.127"	Polyethylene Foam	Both Sides	Rubber	40° to 150°	Closed	25	95	Fed. Std. Class 1, ISO Class 3	White	0000000	000000
1 1/2"	54	0.127"	Polyethylene Foam	Both Sides	Rubber	40° to 150°	Closed	25	95	Fed. Std. Class 1, ISO Class 3	White	0000000	00000
2"	54	0.127"	Polyethylene Foam	Both Sides	Rubber	40° to 150°	Closed	25	95	Fed. Std. Class 1, ISO Class 3	White	0000000	00000

Clean Room Mounting Tape

Particle and residue free, this tape meets clean room requirements. It has adhesive on both sides.

Wd.	Lg., ft.	Overall Thick.	Material	Adhesive Location	Adhesive Type	Temperature Range, °F	Tensile Strength, lbs./in. wd.	Adhesion to Steel, oz./in. wd.	Color	Clarity	Environmental Rating		Each
1/4"	108	0.0078"	Polyester Plastic	Both Sides	Acrylic	-10 to 175°	10	90	Red	Clear	Fed. Std. Class 1, ISO Class 3	0000000	000000
1/2"	108	0.0078"	Polyester Plastic	Both Sides	Acrylic	-10 to 175°	10	90	Red	Clear	Fed. Std. Class 1, ISO Class 3	0000000	00000
3/4"	108	0.0078"	Polyester Plastic	Both Sides	Acrylic	-10 to 175°	10	90	Red	Clear	Fed. Std. Class 1, ISO Class 3	0000000	00000
1"	108	0.0078"	Polyester Plastic	Both Sides	Acrylic	-10 to 175°	10	90	Red	Clear	Fed. Std. Class 1, ISO Class 3	0000000	00000
2"	108	0.0078"	Polyester Plastic	Both Sides	Acrylic	-10 to 175°	10	90	Red	Clear	Fed. Std. Class 1, ISO Class 3	0000000	000000

Clean Room Repositionable Mounting Tape

This tape has adhesive on both sides and can be removed and repositioned without leaving residue behind. It meets clean room requirements.

Wd.	Lg., ft.	Overall Thick.	Material	Adhesive Location	Adhesive Type	Temperature Range, °F	Tensile Strength, lbs./in. wd.	Adhesion to Steel, oz./in. wd.	Color	Environmental Rating		Each
1/2"	108	0.0033"	Polyester Plastic	Both Sides	Acrylic	-10° to 140°	10	20	Clear	Fed. Std. Class 1, ISO Class 3	0000000	000000
3/4"	108	0.0033"	Polyester Plastic	Both Sides	Acrylic	-10° to 140°	10	20	Clear	Fed. Std. Class 1, ISO Class 3	0000000	00000
1"	108	0.0033"	Polyester Plastic	Both Sides	Acrylic	-10° to 140°	10	20	Clear	Fed. Std. Class 1, ISO Class 3	0000000	00000
2"	108	0.0033"	Polyester Plastic	Both Sides	Acrylic	-10° to 140°	10	20	Clear	Fed. Std. Class 1, ISO Class 3	0000000	000000

Clean Room Packaging Tape

For use in clean rooms, this tape won't leave residue behind. It comes sealed in a plastic bag.

Wd.	Lg., ft.	Overall Thick.	Material	Adhesive Type	Temp. Range, °F	Roll Dia.	Spool ID	Tensile Strength, lbs./in. wd.	Adhesion to Steel, oz./in. wd.	Environmental Rating	Choose a Color		Each
1/2"	108	0.0045"	Polyethylene Plastic	Acrylic	-10° to 175°	4 1/2"	3"	10	50	Fed. Std. Class 1, ISO Class 3	Blue, Clear, Red, White	0000000	000000
3/4"	108	0.0045"	Polyethylene Plastic	Acrylic	-10° to 175°	4 1/2"	3"	10	50	Fed. Std. Class 1, ISO Class 3	Blue, Clear, Red, White	0000000	00000
1"	108	0.0045"	Polyethylene Plastic	Acrylic	-10° to 175°	4 1/2"	3"	10	50	Fed. Std. Class 1, ISO Class 3	Blue, Clear, Red, White	0000000	00000
1 1/4"	108	0.0045"	Polyethylene Plastic	Acrylic	-10° to 175°	4 1/2"	3"	10	50	Fed. Std. Class 1, ISO Class 3	Blue, Clear, Red, White	0000000	00000
1 1/2"	108	0.0045"	Polyethylene Plastic	Acrylic	-10° to 175°	4 1/2"	3"	10	50	Fed. Std. Class 1, ISO Class 3	Blue, Clear, Red, White	0000000	00000
2"	108	0.0045"	Polyethylene Plastic	Acrylic	-10° to 175°	4 1/2"	3"	10	50	Fed. Std. Class 1, ISO Class 3	Blue, Clear, Red, White	0000000	00000
3"	108	0.0045"	Polyethylene Plastic	Acrylic	-10° to 175°	4 1/2"	3"	10	50	Fed. Std. Class 1, ISO Class 3	Blue, Clear, Red, White	0000000	00000

Clean Room Repair Tape

This tape has a high-bond adhesive that won't leave residue behind so it meets clean room requirements. Use it to mend and strengthen seams, joints, and surfaces.

Wd.	Lg., ft.	Overall Thick.	Material	Adhesive Type	Temperature Range, °F	Tensile Strength, lbs./in. wd.	Adhesion to Steel, oz./in. wd.	Environmental Rating	Choose a Color		Each
1/4"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	000000
1/2"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
3/4"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
1"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
1 1/2"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
2"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
3"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
4"	108	0.007"	Polyethylene Plastic	Rubber	-10° to 175°	15	60	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000

Clean Room Masking Tape

This vinyl tape meets clean room requirements and won't leave residue behind. Use it for sealing, masking, and hanging plastic sheeting. It comes sealed in a plastic bag.

Wd.	Lg., ft.	Overall Thick.	Material	Adhesive Type	Temperature Range, °F	Environmental Rating	Choose a Color		Each
1/4"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	000000
1/2"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
3/4"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
1"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
1 1/2"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
2"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
3"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000
4"	108	0.005"	Vinyl Plastic	Rubber	-10° to 175°	Fed. Std. Class 1, ISO Class 3	Black, Blue, Clear, Red, White	0000000	00000

Clean Room Marking Tape

Made to the highest standards for cleanliness, this tape meets clean room requirements. It releases minimal contaminants, leaves no residue behind, and comes sealed in a plastic bag. Use it to mark hazardous items or areas—it's striped with warning colors that won't fade over time.

Wd.	Lg., ft.	Overall Thick.	Material	Temperature Range, °F	Adhesive Type	Tensile Strength, lbs./in. wd.	Adhesion to Steel, oz./in. wd.	Environmental Rating	Choose a Color		Each
1/2"	54	0.009"	Vinyl Plastic	-20° to 140°	Rubber	30	20	Fed. Std. Class 1, ISO Class 3	Black with White Stripe, Black with Yellow Stripe, Red with White Stripe	0000000	000000
1"	54	0.009"	Vinyl Plastic	-20° to 140°	Rubber	30	20	Fed. Std. Class 1, ISO Class 3	Black with White Stripe, Black with Yellow Stripe, Red with White Stripe	0000000	00000
1 1/2"	54	0.009"	Vinyl Plastic	-20° to 140°	Rubber	30	20	Fed. Std. Class 1, ISO Class 3	Black with White Stripe, Black with Yellow Stripe, Red with White Stripe	0000000	00000
2"	54	0.009"	Vinyl Plastic	-20° to 140°	Rubber	30	20	Fed. Std. Class 1, ISO Class 3	Black with White Stripe, Black with Yellow Stripe, Red with White Stripe	0000000	00000
3"	54	0.009"	Vinyl Plastic	-20° to 140°	Rubber	30	20	Fed. Std. Class 1, ISO Class 3	Black with White Stripe, Black with Yellow Stripe, Red with White Stripe	0000000	00000

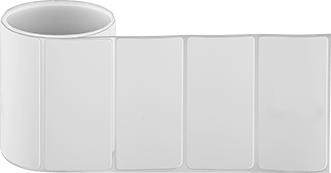

Thermal-Transfer Printer Labels for Clean Rooms

These labels are cleaned and double-bagged in a Fed. Std. Class 10 (ISO Class 4) clean room. Use them with a thermal-transfer printer for smudgeproof results, or write on them using clean room pens. Labels only work with printers that have a ribbon.

Ht.	Wd.	Thick.	Roll ID	Color	Mount Type	Material	Environmental Rating	Number of Labels		Each
2"	3"	0.004"	3"	White	Adhesive Back	Polypropylene Plastic	Fed. Std. Class 10, ISO Class 4	100	0000000	000000
2"	4"	0.004"	3"	White	Adhesive Back	Polypropylene Plastic	Fed. Std. Class 10, ISO Class 4	100	0000000	00000

Removable Thermal-Transfer Printer Labels for Clean Rooms

These labels peel off easily when they're no longer needed. They are cleaned and double-bagged in an ISO Class 4 (Fed. Std. Class 10) clean room. Use them with a thermal-transfer printer for smudgeproof results, or write on them using clean room pens. Labels only work with printers that have a ribbon.

Ht.	Wd.	Thick.	Roll ID	Color	Mount Type	Material	Environmental Rating	Number of Labels		Each
1 1/2"	1 1/2"	0.004"	3"	White	Adhesive Back	Polypropylene Plastic	Fed. Std. Class 10, ISO Class 4	100	0000000	000000

Clean Room Striped Floor Marking Tape

Designate aisles and work zones in your clean room. Individually bagged, this tape is made to the highest standards for cleanliness, releasing minimal contaminants and leaving no residue behind. The colored warning stripes resist fading over time.

Wd.	Lg, ft.	Thick.	For Use Outdoors	For Surface Texture	Material	Temp. Range, °F	Tape Type	Environmental Rating	Choose a Color		Each
2"	54	0.009"	No	Smooth	Vinyl	-20° to 140°	Clean Room, Marking	Fed. Std. Class 1, ISO Class 3	Black/Yellow, Green/White, Red/White	000000	000000
3"	54	0.009"	No	Smooth	Vinyl	-20° to 140°	Clean Room, Marking	Fed. Std. Class 1, ISO Class 3	Black/Yellow, Green/White, Red/White	000000	00000
