6" Calipers | McMaster-Carr

The most precise and versatile calipers. Their LCD display gives instant measurements down to 0.0005”—no need to count graduations. Swap between inch and metric or set the position to zero, all with the press of a button. You don’t need to reset the zero point since they retain their position when turned off, also known as absolute (ABS) positioning.

Our calipers come with a signed certificate of inspection, so you can trust your measurements are accurate every time. Their precision-ground jaws glide up and down the body for a silky-smooth feel.

Mitutoyo—The go-to for machinists and engineers. Every part of these calipers is made within Mitutoyo's automated system and tested in-house in Japan. Their jaws are laser cut to exact dimensions for the most reliable measurements.

Starrett—Starrett calipers come packaged in their iconic wood or red plastic case, so you'll be able to spot them on the busiest of bench tops.

McMaster-Carr Approved—The performance of brand-name calipers without the cost.

With SPC Data Output—Send measurements to a computer or data processor to store, analyze, and manage data. You'll need a data cable or SPC wireless transmitter and receiver.

With SPC Data Output and Bluetooth Connection—Wirelessly send measurements to your smartphone and other Bluetooth devices to store, analyze, and manage data.

Calibration Certificate—Choose these calipers when precision measurements are required for quality control or by regulation. The certificate is traceable to NIST, so you can be confident your measurements are correct and consistent.

Carbide Jaw—Our longest-lasting jaws won't dull when pressed against extra-hard or abrasive surfaces, such as grinding wheels.

	Measuring Range		Accuracy		Measuring Increments						Calipers		Calipers with Calibration Certificate
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material	Mfr. Model No.		Each		Each
Mitutoyo







				Without SPC Data Output

				0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	500-196-30	0000000	0000000	0000000	0000000


				0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Carbide	500-733-20	0000000	000000	0000000	000000




						With SPC Data Output

						0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	500-171-30	00000000	000000	00000000	000000


						Starrett







										Without SPC Data Output

										0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	EC799A-6/150	00000000	000000	00000000	000000




												With SPC Data Output

												0" to 6"	0 to 150	±0.001"	±0.02 mm	0.0005"	0.01	10"	Stainless Steel	Carbide	798BX-6/150	0000000	000000	0000000	000000


												McMaster-Carr Approved







																Without SPC Data Output

																0" to 6"	0 to 150	±0.001"	±0.02 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Steel	—	0000000	00000	———	0




																		With SPC Data Output and Bluetooth Connection

																		0" to 6"	0 to 150	±0.001"	±0.02 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	—	0000000	00000	———	0

Accessories and Replacements for Calipers

SPC Data Cables


Mitutoyo Data Out Switch C × 10-Pin Mitutoyo Connector	Mitutoyo Data Out Switch C × USB-A

Straight Starrett Connector × USB-A

USB-A Connection—Plug calipers with SPC data output directly into your computer.

10-Pin Mitutoyo Connector—Connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

	Lg.		Each
Mitutoyo



	Mitutoyo Data Out Switch C × 10-Pin Mitutoyo Connector	40"	0000000	000000


	Mitutoyo Data Out Switch C × 10-Pin Mitutoyo Connector	80"	00000000	00000
	Mitutoyo Data Out Switch C × USB-A	80"	000000	000000


	Starrett



			Straight Starrett Connector × USB-A	6 ft.	0000000	000000

SPC Wireless Transmitters

Mitutoyo Data Out Switch C Connection

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a receiver.

Electrical Connection	Mfr. Series		Each
Mitutoyo Data Out Switch C	U-WAVE-T	000000	0000000

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a transmitter.

	For Mfr. Series		Each
Mitutoyo



	USB-A	U-WAVE-T	000000	0000000

Depth Base Attachments


Mitutoyo	Starrett

Clamp onto the end of your caliper to steady it while measuring depth.

		Each
Mitutoyo



	0" to 4", 0" to 6", 0" to 8", 0 mm to 100 mm, 0 mm to 150 mm, 0 mm to 200 mm	0000000	000000


	Starrett



			0" to 6", 0" to 8", 0" to 9", 0 mm to 150 mm, 0 mm to 200 mm, 0 mm to 225 mm	00000000	000000

Display Freeze Adapters

Save your measurement on the display even after repositioning the caliper.

		Each
Mitutoyo



	500-170-30, 500-171-30, 500-172-30, 500-173, 500-505-10, 500-506-10, 500-507-10, 572-210-30, 572-211-20, 572-213-10	00000000	000000

Replacement Battery Covers


Mitutoyo	Starrett

		Each
Mitutoyo



	500-170-30, 500-171-30, 500-172-30, 500-173-30, 500-193-30, 500-195-30, 500-196-30, 500-197-32, 573-291-30	0000000	00000


	500-733-20, 500-734-20	00000000	0000


	Starrett



			EC799A-6/150, EC799A-8/200	0000000	00000

Replacement Cases


Mitutoyo	Starrett

	Material		Each
Mitutoyo



	500-170-30, 500-171-30, 500-195-30, 500-196-30, 500-474, 500-733-20, 500-752-20, 500-762-20, 500-784, 505-730, 505-738, 505-740, 505-741, 505-742, 573-721-20	Plastic	0000000	000000


	Starrett



			120A-6, 120AM-150, 120X-6, 798A-6/150, 798B-6/150, B120A-6, EC799A-6/150, R120A-6	Plastic	0000000	00000

			1-9	10-49	50-Up
Replacement SR44 Silver Oxide Battery	00000000	Each	00000	00000	00000
Replacement CR2032 Lithium Battery	0000000	Pkg. of 1	0000	0000	0000

Dial Calipers

Watch the needle move as the jaws do for trustworthy measurements. To calculate your final measurement, simply add the decimal value on the dial to the number on the main scale. These calipers are battery-free, so they're always ready to use. However, the glass dial and internal components can break if accidentally dropped.

Starrett—Precision made and tested in the U.S. These Starrett calipers come packaged in their iconic wood or red plastic case, so you'll be able to spot them on the busiest of bench tops.

McMaster-Carr Approved—The performance of brand-name calipers without the cost.

Carbide Jaw—Our longest-lasting jaws won't dull when pressed against extra-hard or abrasive surfaces, such as grinding wheels.

Built-In Backlash Control—The needle stays steady even if the dial is bumped or vibrated for reliably accurate measurements.

											Calipers		Calipers with Calibration Certificate
	Measuring Range	Accuracy	Measuring Increments	Measurement per Dial Rev.	Overall Lg.	Body Material	Jaw Material	Mfr. Series	Features	Choose a Dial Face Color		Each		Each
Mitutoyo



		0" to 6"	±0.001"	0.001"	0.1"	9"	Stainless Steel	Stainless Steel	505-742	Built-In Backlash Control	Black, Green, Orange, Purple, Red, White	0000000	0000000	———	0


		0" to 6"	±0.001"	0.001"	0.1"	9"	Stainless Steel	Stainless Steel	505-742	Built-In Backlash Control	Black, Blue, Green, Orange, Purple, Red, White	———	0	00000000	0000000
		0" to 6"	±0.001"	0.001"	0.1"	9"	Stainless Steel	Carbide	505-738	Built-In Backlash Control	White	0000000	000000	0000000	000000
		0" to 6"	±0.001"	0.001"	0.2"	9"	Stainless Steel	Stainless Steel	505-740	Built-In Backlash Control	White	0000000	000000	0000000	000000


		Starrett



				0" to 6"	±0.001"	0.001"	0.1"	9"	Stainless Steel	Stainless Steel	120	Built-In Backlash Control	Black, Red, White	0000000	000000	00000000	000000


				McMaster-Carr Approved



						0" to 6"	±0.001"	0.001"	0.1"	9 1/2"	Stainless Steel	Steel	—	Built-In Backlash Control	Black	0000000	00000	———	0


						0" to 6"	±0.001"	0.001"	0.1"	9 1/2"	Stainless Steel	Steel	—	Built-In Backlash Control	White	0000000	00000	———	0
						0" to 6"	±0.001"	0.001"	0.1"	9 1/2"	Stainless Steel	Carbide	—	Built-In Backlash Control	White	0000000	00000	———	0
						0" to 6" 0 mm to 150 mm	±0.001" ±0.03 mm	0.001" 0.02 mm	0.1"	9 1/2"	Stainless Steel	Steel	—	Built-In Backlash Control	White	0000000	00000	———	0

Accessories and Replacements for Calipers

Depth Base Attachments


Mitutoyo	Starrett

Clamp onto the end of your caliper to steady it while measuring depth.

		Each
Mitutoyo



	0" to 4", 0" to 6", 0" to 8", 0 mm to 100 mm, 0 mm to 150 mm, 0 mm to 200 mm	0000000	000000


	Starrett



			0" to 6", 0" to 8", 0" to 9", 0 mm to 150 mm, 0 mm to 200 mm, 0 mm to 225 mm	00000000	000000

Replacement Cases


Mitutoyo	Starrett

	Material		Each
Mitutoyo



	500-170-30, 500-171-30, 500-195-30, 500-196-30, 500-474, 500-733-20, 500-752-20, 500-762-20, 500-784, 505-730, 505-738, 505-740, 505-741, 505-742, 573-721-20	Plastic	0000000	000000


	Starrett



			120A-6, 120AM-150, 120X-6, 798A-6/150, 798B-6/150, B120A-6, EC799A-6/150, R120A-6	Plastic	0000000	00000

Digital Calipers with Fractional Display

Convert measurements to fractions with the push of a button. These calipers measure in both decimals and fractions of an inch, so you don't need to memorize conversions. They're especially handy for carpentry and similar jobs that involve measurements down to _1/64".

With an LCD display, these calipers give instant measurements—no need to count graduations. Swap between inch and metric or set the position to zero, all with the press of a button.

Plastic Jaw—Best for measuring delicate surfaces, these jaws won't scratch. They also won't conduct electricity when working with wires and electrical parts. However, they'll wear down faster than metal jaws.

Zero-Position Memory (ABS)—Retain the caliper's position when turned off, so you don't need to reset the zero point each time. Also called absolute (ABS) positioning.

	Measuring Range		Accuracy		Measuring Increments
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Fractional Increments	Overall Lg.	Body Material	Jaw Material	Measuring Functions		Each
Without SPC Data Output



		0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	1/64"	9 1/2"	Stainless Steel	Stainless Steel	—	0000000	000000


		0" to 6"	0 to 150	±0.008"	±0.20 mm	0.0005"	0.01	1/64"	9 1/4"	Plastic	Plastic	Zero-Position Memory (ABS)	0000000	00000

Replacement Batteries

			1-9	10-49	50-Up
Replacement SR44 Silver Oxide Battery	00000000	Each	00000	00000	00000
Replacement CR2032 Lithium Battery	0000000	Pkg. of 1	0000	0000	0000

Coolant-Resistant Digital Calipers

Measure parts inside CNC machines and other places coated with coolant and cutting oil. The display and battery cover are tightly sealed, so spraying and dripping fluids won't seep in.

With an LCD display, these calipers give instant measurements—no need to count graduations. Swap between inch and metric or set the position to zero, all with the press of a button. You don't need to reset the zero point since they retain their position when turned off, also known as absolute (ABS) positioning.

Starrett—Starrett calipers come packaged in their iconic wood or red plastic case, so you'll be able to spot them on the busiest of bench tops.

McMaster-Carr Approved—The performance of brand-name calipers without the cost.

With SPC Data Output—Send measurements to a computer or data processor to store, analyze, and manage data. You'll need a data cable or SPC wireless transmitter and receiver.

With SPC Data Output and Bluetooth Connection—Wirelessly send measurements to your smartphone and other Bluetooth devices to store, analyze, and manage data.

	Measuring Range		Accuracy		Measuring Increments							Calipers		Calipers with Calibration Certificate
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material	Enclosure Rating	Mfr. Model No.		Each		Each
Mitutoyo







				Without SPC Data Output

				0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	IP67	500-752-20	0000000	0000000	0000000	0000000




						With SPC Data Output

						0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	IP67	500-762-20	0000000	000000	0000000	000000


						Starrett







										Without SPC Data Output

										0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	IP67	798A-6/150	0000000	000000	0000000	000000




												With SPC Data Output

												0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	IP67	798B-6/150	0000000	000000	0000000	000000


												McMaster-Carr Approved







																With SPC Data Output and Bluetooth Connection

																0" to 6"	0 to 150	±0.001"	±0.02 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	IP67	—	———	0	0000000	000000

Accessories and Replacements for Calipers

SPC Data Cables


Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	Mitutoyo Data Out Switch A × USB-A

Straight Starrett Connector × USB-A

USB-A Connection—Plug calipers with SPC data output directly into your computer.

10-Pin Mitutoyo Connector—Connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

	Lg.		Each
Mitutoyo



	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	40"	00000000	0000000


	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	80"	00000000	000000
	Mitutoyo Data Out Switch A × USB-A	80"	000000	000000


	Starrett



			Straight Starrett Connector × USB-A	6 ft.	0000000	000000

SPC Wireless Transmitters

Mitutoyo Data Out Switch A Connection

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a receiver.

Electrical Connection	Mfr. Series		Each
Mitutoyo Data Out Switch A	U-WAVE-T	000000	0000000

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a transmitter.

	For Mfr. Series		Each
Mitutoyo



	USB-A	U-WAVE-T	000000	0000000

Depth Base Attachments


Mitutoyo	Starrett

Clamp onto the end of your caliper to steady it while measuring depth.

		Each
Mitutoyo



	0" to 4", 0" to 6", 0" to 8", 0 mm to 100 mm, 0 mm to 150 mm, 0 mm to 200 mm	0000000	000000


	Starrett



			0" to 6", 0" to 8", 0" to 9", 0 mm to 150 mm, 0 mm to 200 mm, 0 mm to 225 mm	00000000	000000

	For Mfr. Model No.
Mitutoyo


500-752-20, 500-753-20, 500-754-20, 500-762-20, 500-763-20, 500-764-20, 573-701-20, 573-705-20, 573-721-20, 573-761-20	0000000	00000

Replacement Cases


Mitutoyo	Starrett

	Material		Each
Mitutoyo



	500-170-30, 500-171-30, 500-195-30, 500-196-30, 500-474, 500-733-20, 500-752-20, 500-762-20, 500-784, 505-730, 505-738, 505-740, 505-741, 505-742, 573-721-20	Plastic	0000000	000000


	Starrett



			120A-6, 120AM-150, 120X-6, 798A-6/150, 798B-6/150, B120A-6, EC799A-6/150, R120A-6	Plastic	0000000	00000

			1-9	10-49	50-Up
Replacement SR44 Silver Oxide Battery	00000000	Each	00000	00000	00000
Replacement CR2032 Lithium Battery	0000000	Pkg. of 1	0000	0000	0000

Calipers for Pipe and Tubing

The rounded jaw hugs the inside of pipe and tubing, so you can accurately measure their wall thickness.

With SPC Data Output—Send measurements to a computer or data processor to store, analyze, and manage data. You'll need a data cable or SPC wireless transmitter and receiver.

	Measuring Range		Accuracy		Measuring Increments							Calipers with Calibration Certificate
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material	Enclosure Rating	Mfr. Model No.		Each
Mitutoyo







				With SPC Data Output

				0" to 6"	0 to 150	±0.002"	±0.0508 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	IP67	573-761-20	0000000	0000000

Accessories and Replacements for Calipers

SPC Data Cables


Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	Mitutoyo Data Out Switch A × USB-A

USB-A Connection—Plug calipers with SPC data output directly into your computer.

10-Pin Mitutoyo Connector—Connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

	Lg.		Each
Mitutoyo



	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	40"	00000000	0000000


	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	80"	00000000	000000
	Mitutoyo Data Out Switch A × USB-A	80"	000000	000000

SPC Wireless Transmitters

Mitutoyo Data Out Switch A Connection

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a receiver.

Electrical Connection	Mfr. Series		Each
Mitutoyo Data Out Switch A	U-WAVE-T	000000	0000000

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a transmitter.

	For Mfr. Series		Each
Mitutoyo



	USB-A	U-WAVE-T	000000	0000000

Replacement Cases

Mitutoyo

	Material		Each
Mitutoyo



	500-172-30, 500-197-32, 500-475, 500-734-20, 500-753-20, 500-763-20, 500-785, 505-731, 505-737, 505-741, 505-743, 573-701-20, 573-705-20, 573-761-20	Plastic	0000000	000000

Dial Calipers with Fractional Display

No need to memorize conversions. The dial on these calipers lists measurements in both decimals and fractions of an inch. They're especially handy for carpentry and similar jobs that involve measurements down to _1/64".

To calculate your final measurement, simply add the value on the dial to the number on the main scale. These calipers are battery-free, so they’re always ready to use. However, the glass dial and internal components can break if accidentally dropped.

Built-In Backlash Control—The needle stays steady even if the dial is bumped or vibrated for reliably accurate measurements.

										Calipers
Measuring Range	Accuracy	Measuring Increments	Measurement per Dial Rev.	Fractional Increments	Overall Lg.	Body Material	Jaw Material	Dial Face Color	Features		Each



	0" to 6"	±0.001"	0.01"	1"	1/64"	8.75"	Plastic	Plastic	Green/White	—	0000000	000000


	0" to 6"	±0.001"	0.01"	1"	1/64"	9.25"	Stainless Steel	Stainless Steel	White	Built-In Backlash Control	0000000	00000

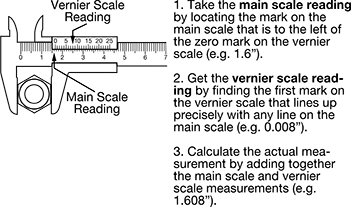

Vernier Calipers

Your traditional calipers, combining precision and durability. This classic design uses a sliding vernier scale. Just add the measurement from the main scale to the measurement on the vernier scale to get accurate readings as small as 0.001". Made completely out of metal, these calipers won't break when dropped or short-circuit when wet. They're battery-free, so they're always ready to use.

	Measuring Range		Accuracy		Measuring Increments						Calipers
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material	Mfr. Model No.		Each
Mitutoyo



		0" to 6"	—	±0.0015"	—	0.001"	—	9"	Stainless Steel	Stainless Steel	530-105	0000000	0000000


		0" to 6"	0 to 150	±0.0012"	±0.03 mm	0.001"	0.02	9"	Stainless Steel	Stainless Steel	530-312	0000000	000000

Depth Base Attachments

Mitutoyo

Clamp onto the end of your caliper to steady it while measuring depth.

		Each
Mitutoyo



	0" to 4", 0" to 6", 0" to 8", 0 mm to 100 mm, 0 mm to 150 mm, 0 mm to 200 mm	0000000	000000

Calipers for Offset Surfaces

Extend or shorten one jaw to measure parts with uneven surfaces, such as flanged bearings.

With SPC Data Output—Send measurements to a computer or data processor to store, analyze, and manage data. You'll need a data cable or SPC wireless transmitter and receiver.

	Measuring Range		Accuracy		Measuring Increments							Calipers with Calibration Certificate
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material	Enclosure Rating	Mfr. Model No.		Each
Mitutoyo







				With SPC Data Output

				0" to 6"	0 to 150	±0.001"	±0.0254 mm	0.0005"	0.01	9"	Stainless Steel	Stainless Steel	IP67	573-701-20	0000000	0000000

Accessories and Replacements for Calipers

SPC Data Cables


Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	Mitutoyo Data Out Switch A × USB-A

USB-A Connection—Plug calipers with SPC data output directly into your computer.

10-Pin Mitutoyo Connector—Connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

	Lg.		Each
Mitutoyo



	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	40"	00000000	0000000


	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	80"	00000000	000000
	Mitutoyo Data Out Switch A × USB-A	80"	000000	000000

SPC Wireless Transmitters

Mitutoyo Data Out Switch A Connection

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a receiver.

Electrical Connection	Mfr. Series		Each
Mitutoyo Data Out Switch A	U-WAVE-T	000000	0000000

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a transmitter.

	For Mfr. Series		Each
Mitutoyo



	USB-A	U-WAVE-T	000000	0000000

Depth Base Attachments

Mitutoyo

Clamp onto the end of your caliper to steady it while measuring depth.

		Each
Mitutoyo



	0" to 4", 0" to 6", 0" to 8", 0 mm to 100 mm, 0 mm to 150 mm, 0 mm to 200 mm	0000000	000000

Replacement Cases

Mitutoyo

	Material		Each
Mitutoyo



	500-172-30, 500-197-32, 500-475, 500-734-20, 500-753-20, 500-763-20, 500-785, 505-731, 505-737, 505-741, 505-743, 573-701-20, 573-705-20, 573-761-20	Plastic	0000000	000000

Left-Handed Digital Calipers

The display, markings, and thumb wheel face to the right, so you can comfortably work these calipers with your left hand.

With SPC Data Output—Send measurements to a computer to store, analyze, and manage data. You'll need a data cable.

Measuring Range		Accuracy		Measuring Increments					Calipers with Calibration Certificate
Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material		Each







			With SPC Data Output

			0" to 6"	0 to 150	±0.0012"	±0.03 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Stainless Steel	0000000	0000000

Replacement Batteries

Self-Locking Vernier Calipers

Prevent the jaws from creeping forward or backward as you measure. They move only when you press a button, then lock in place when you let go. The button falls naturally under your thumb, so you can operate these calipers comfortably with one hand.

These classic calipers use a sliding vernier scale. Just add the measurement from the main scale to the measurement on the vernier scale to get accurate readings as small as 0.001". Made completely out of metal, they won't break when dropped or short-circuit when wet. They're battery-free, so they're always ready to use.

McMaster-Carr Approved—The performance of brand-name calipers without the cost.

	Measuring Range		Accuracy		Measuring Increments					Calipers
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material		Each
McMaster-Carr Approved



		0" to 6"	0 to 150	±0.0015"	±0.04 mm	0.001"	0.02	9"	Stainless Steel	Stainless Steel	0000000	000000

Mitutoyo Digital Precision Measuring Tool Sets


Friction Thimble	Ratchet-Stop Thimble

Each set includes a caliper, a micrometer, and a case. Zero-position memory, also known as absolute (ABS) positioning, retains the measuring position when the caliper or micrometer is turned off. A zero-set button allows you to start measuring at any point.

The micrometer thimbles have a constant-force mechanism, so that once the spindle contacts the surface of the measured object, it will stop tightening. This ensures repeatable measurements and prevents over-tightening.

Friction Thimble—Friction thimbles continue to turn with resistance when the micrometer’s spindle stops tightening.

Ratchet-Stop Thimble—Ratchet-stop thimbles have a speeder knob to reduce the time it takes to open and close the micrometer. When the spindle stops tightening, the thimble stops turning, but the speeder knob will continue turning with a clicking sound.

Replacement Precision Measuring Tool Set Cases—Replacement cases cannot be sold to Canada due to import regulations.

Precision Measuring Tool Sets							Replacement Precision Measuring Tool Set Cases
Distance Measured Range	Thimble Type	Batteries Included	Includes	Mfr. Model No.		Each		Each
0" to 6", 0 mm to 150 mm	Friction	Yes	One Caliper (0"-6"/0 mm-150 mm Measuring Range, 0.0005"/0.01 mm Measuring Increments, ±0.001"/±0.025 mm Accuracy) One Micrometer (0"-1"/0 mm-25 mm Measuring Range, 0.00005"/0.001 mm Measuring Increments, ±0.00005"/±0.001 mm Accuracy)	64PKA077B	000000000	0000000	0000000	000000
0" to 6", 0 mm to 150 mm	Ratchet Stop	Yes	One Caliper (0"-6"/0 mm-150 mm Measuring Range, 0.0005"/0.01 mm Measuring Increments, ±0.001"/±0.025 mm Accuracy) One Micrometer (0"-1"/0 mm-25 mm Measuring Range, 0.00005"/0.001 mm Measuring Increments, ±0.00005"/±0.001 mm Accuracy)	64PKA076B	000000000	000000	0000000	00000

Replacement Batteries

Calipers for Small Holes and Grooves

Thin as a pencil point, the jaws slip into narrow spaces where standard ones won't fit. These calipers are often used to measure the outer dimensions of grooves in O-rings, pistons, and other small parts.

With SPC Data Output—Send measurements to a computer or data processor to store, analyze, and manage data. You'll need a data cable or SPC wireless transmitter and receiver.

	Measuring Range		Accuracy		Measuring Increments							Calipers		Calipers with Calibration Certificate
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material	Enclosure Rating	Mfr. Model No.		Each		Each
Mitutoyo







				With SPC Data Output

				0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	9 1/4"	Stainless Steel	Steel	IP67	573-721-20	000000	0000000	000000	0000000

Accessories and Replacements for Calipers

SPC Data Cables


Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	Mitutoyo Data Out Switch A × USB-A

USB-A Connection—Plug calipers with SPC data output directly into your computer.

10-Pin Mitutoyo Connector—Connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

	Lg.		Each
Mitutoyo



	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	40"	00000000	0000000


	Mitutoyo Data Out Switch A × 10-Pin Mitutoyo Connector	80"	00000000	000000
	Mitutoyo Data Out Switch A × USB-A	80"	000000	000000

SPC Wireless Transmitters

Mitutoyo Data Out Switch A Connection

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a receiver.

Electrical Connection	Mfr. Series		Each
Mitutoyo Data Out Switch A	U-WAVE-T	000000	0000000

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a transmitter.

	For Mfr. Series		Each
Mitutoyo



	USB-A	U-WAVE-T	000000	0000000

Depth Base Attachments

Mitutoyo

Clamp onto the end of your caliper to steady it while measuring depth.

		Each
Mitutoyo



	0" to 4", 0" to 6", 0" to 8", 0 mm to 100 mm, 0 mm to 150 mm, 0 mm to 200 mm	0000000	000000

Replacement Cases

Mitutoyo

	Material		Each
Mitutoyo



	500-170-30, 500-171-30, 500-195-30, 500-196-30, 500-474, 500-733-20, 500-752-20, 500-762-20, 500-784, 505-730, 505-738, 505-740, 505-741, 505-742, 573-721-20	Plastic	0000000	000000

Precision-Adjust Vernier Calipers

Move the jaws exactly where you need them. The fine-adjustment wheel opens and closes the jaws in small, precise increments for extra control while measuring.

McMaster-Carr Approved—The performance of brand-name calipers without the cost.

	Measuring Range		Accuracy		Measuring Increments					Calipers
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material		Each
McMaster-Carr Approved



		0" to 6"	0 to 150	±0.001"	±0.025 mm	0.001"	0.02	7"	Stainless Steel	Stainless Steel	0000000	000000

Calipers for Scribing

Precisely mark lines and measure workpieces with the same tool. The carbide jaws are hard enough to press into wood, metal, and other surfaces without dulling over time. One jaw extends further than the other, so you can hold it against the side of your workpiece to keep it steady as you scribe.

With an LCD display, these calipers give instant measurements—no need to count graduations. Swap between inch and metric or set the position to zero, all with the press of a button.

With SPC Data Output—Send measurements to a computer to store, analyze, and manage data. You'll need a USB data cable or SPC wireless transmitter and receiver.

With SPC Data Output and Zigbee Connection—Wirelessly send measurements to an SPC receiver (sold separately) to store, analyze, and manage data on your computer.

Measuring Range		Accuracy		Measuring Increments					Calipers
Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material		Each







			With SPC Data Output

			0" to 6"	0 to 150	±0.0015"	±0.0381 mm	0.0005"	0.01	9 3/8"	Stainless Steel	Carbide	0000000	0000000




					With SPC Data Output and Zigbee Connection

					0" to 6"	0 to 150	±0.0015"	±0.0381 mm	0.0005"	0.01	9 3/8"	Stainless Steel	Carbide	0000000	000000

Accessories and Replacements for Calipers

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. If the caliper doesn't have a Zigbee connection, you'll also need a transmitter.

	Each



USB-A	0000000	0000000

Calipers for Tolerance Checking

Quickly check that parts are within tolerance without adjusting the jaws each time. The jaws have a spring-loaded lock, so they stay at your set measurement. Pull the thumb wheel to open them just enough to slide a part in or out. Release and they snap back to their set position.

With SPC Data Output—Send measurements to a computer or data processor to store, analyze, and manage data. You'll need a data cable or SPC wireless transmitter and receiver.

	Measuring Range		Accuracy		Measuring Increments						Calipers
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material	Mfr. Model No.		Each
Mitutoyo







				With SPC Data Output

				0" to 6"	0 to 150	±0.001"	±0.025 mm	0.0005"	0.01	11 1/2"	Stainless Steel	Stainless Steel	573-282-30	0000000	0000000

Accessories and Replacements for Calipers

SPC Data Cables


Mitutoyo Data Out Switch C × 10-Pin Mitutoyo Connector	Mitutoyo Data Out Switch C × USB-A

USB-A Connection—Plug calipers with SPC data output directly into your computer.

10-Pin Mitutoyo Connector—Connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

	Lg.		Each
Mitutoyo



	Mitutoyo Data Out Switch C × 10-Pin Mitutoyo Connector	40"	0000000	000000


	Mitutoyo Data Out Switch C × 10-Pin Mitutoyo Connector	80"	00000000	00000
	Mitutoyo Data Out Switch C × USB-A	80"	000000	000000

SPC Wireless Transmitters

Mitutoyo Data Out Switch C Connection

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a receiver.

Electrical Connection	Mfr. Series		Each
Mitutoyo Data Out Switch C	U-WAVE-T	000000	0000000

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. You’ll also need a transmitter.

	For Mfr. Series		Each
Mitutoyo



	USB-A	U-WAVE-T	000000	0000000

Depth Base Attachments

Mitutoyo

Clamp onto the end of your caliper to steady it while measuring depth.

		Each
Mitutoyo



	0" to 4", 0" to 6", 0" to 8", 0 mm to 100 mm, 0 mm to 150 mm, 0 mm to 200 mm	0000000	000000

Display Freeze Adapters

Save your measurement on the display even after repositioning the caliper.

		Each
Mitutoyo



	500-170-30, 500-171-30, 500-172-30, 500-173, 500-505-10, 500-506-10, 500-507-10, 572-210-30, 572-211-20, 572-213-10	00000000	000000

Mitutoyo Digital Precision Measuring Tool Sets with Calibration Certificate


Friction Thimble	Ratchet-Stop Thimble

These sets come with calibration certificates traceable to NIST that state the tools have passed a test for accuracy. Each set includes a caliper, a micrometer, and a case. Zero-position memory, also known as absolute (ABS) positioning, retains the measuring position when the caliper or micrometer is turned off. A zero-set button allows you to start measuring at any point.

Friction Thimble—Friction thimbles continue to turn with resistance when the micrometer’s spindle stops tightening.

Replacement Precision Measuring Tool Set Cases—Replacement cases cannot be sold to Canada due to import regulations.

Precision Measuring Tool Sets							Replacement Precision Measuring Tool Set Cases
Distance Measured Range	Thimble Type	Batteries Included	Includes	Mfr. Model No.		Each		Each
0" to 6", 0 mm to 150 mm	Friction	Yes	One Caliper (0"-6"/0 mm-150 mm Measuring Range, 0.0005"/0.01 mm Measuring Increments, ±0.001"/±0.025 mm Accuracy) One Micrometer (0"-1"/0 mm-25 mm Measuring Range, 0.00005"/0.001 mm Measuring Increments, ±0.00005"/±0.001 mm Accuracy)	64PKA077B	00000000	0000000	0000000	000000
0" to 6", 0 mm to 150 mm	Ratchet Stop	Yes	One Caliper (0"-6"/0 mm-150 mm Measuring Range, 0.0005"/0.01 mm Measuring Increments, ±0.001"/±0.025 mm Accuracy) One Micrometer (0"-1"/0 mm-25 mm Measuring Range, 0.00005"/0.001 mm Measuring Increments, ±0.00005"/±0.001 mm Accuracy)	64PKA076B	00000000	000000	0000000	00000

Replacement Batteries

Calipers for Brakes

Style B

Check the wear on disc brakes and pads to see if you need to replace them. The jaws are deep and point inward, so they reach around the raised edges on brakes to accurately measure their thickness.

With an LCD display, these calipers give instant measurements—no need to count graduations. Swap between inch and metric or set the position to zero, all with the press of a button.

With SPC Data Output—Send measurements to a computer to store, analyze, and manage data. You'll need a USB data cable or SPC wireless transmitter and receiver.

With SPC Data Output and Zigbee Connection—Wirelessly send measurements to an SPC receiver (sold separately) to store, analyze, and manage data on your computer.

Style B—These calipers have an extra set of jaws to take inside measurements.

	Measuring Range		Accuracy		Measuring Increments					Calipers
Style	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Overall Lg.	Body Material	Jaw Material		Each







			With SPC Data Output

			B	0" to 6"	0 to 150	±0.003"	±0.07 mm	0.0005"	0.01	9 3/4"	Stainless Steel	Stainless Steel	0000000	0000000




					With SPC Data Output and Zigbee Connection

					B	0" to 6"	0 to 150	±0.003"	±0.07 mm	0.0005"	0.01	9 3/4"	Stainless Steel	Stainless Steel	0000000	000000

Accessories and Replacements for Calipers

SPC Wireless Receivers

Wirelessly send measurements from calipers with SPC data output to your computer. If the caliper doesn't have a Zigbee connection, you'll also need a transmitter.

	Each



USB-A	0000000	0000000

Static-Control Dial Calipers

Prevent static from damaging sensitive electronics as you measure them. The fiberglass body drains static away from your workpiece so you don't pass along harmful charges.

										Calipers
Measuring Range	Accuracy	Measuring Increments	Measurement per Dial Rev.	Overall Lg.	Body Material	Jaw Material	Dial Face Color	Surface Resistance, ohm	Specs. Met		Each



	0" to 6"	±0.002"	0.001"	0.3"	9 3/4"	Fiberglass	Steel	White	1× 10^6 to 1× 10^9	IEC 61340-5-1	0000000	000000

Economy Precision Measuring Tool Sets

Set includes a dial caliper, a micrometer, a ruler, and a case. The micrometer has a ratchet thimble with a constant-force mechanism, which stops the spindle from tightening once it contacts the surface of the measured object. This ensures repeatable measurements and prevents over-tightening. When the spindle stops tightening, the thimble will continue turning with a clicking sound. A speeder knob reduces the time it takes to open and close the micrometer.

Distance Measured Range	Thimble Type	Includes		Each
0" to 6"	Ratchet	One 6" Ruler (10ths, 32nds, 64ths, 100ths Graduations) One Caliper (0"-6" Measuring Range, 0.001" Measuring Increments, ±0.001" Accuracy) One Micrometer (0"-1" Measuring Range, 0.0001" Measuring Increments, ±0.00016" Accuracy)	0000000	0000000

Mitutoyo Precision Measuring Tool Sets


64PKA068B	64PKA069C

64PKA070C

Sets include a dial caliper, a micrometer, a ruler, and a case. The micrometer has a friction thimble with a constant-force mechanism, so that once the spindle contacts the surface of the measured object, it will stop tightening. This ensures repeatable measurements and prevents over-tightening. Once the spindle stops tightening, the thimble will continue turning with resistance.

Model Number 64PKA069C—Sets with a lever-style dial indicator have holding arms for mounting and additional contact points.

Model Number 64PKA070C—Sets with a depth micrometer measure the depth of holes, slots, shoulders, and projections. Change out the steel extension rods for your application—they come in 1" incremental lengths. They have a ratchet thimble with a constant-force mechanism that works similar to the standard micrometer for repeatable measurements.

Replacement Precision Measuring Tool Set Cases—Replacement cases cannot be sold to Canada due to import regulations.

Precision Measuring Tool Sets						Replacement Precision Measuring Tool Set Cases
Distance Measured Range	Thimble Type	Includes	Mfr. Model No.		Each		Each
0" to 6"	Friction	One 6" Ruler (10ths, 32nds, 50ths, 64ths Graduations) One Caliper (0"-6" Measuring Range, 0.001" Measuring Increments, ±0.001" Accuracy) One Micrometer (0"-1" Measuring Range, 0.0001" Measuring Increments, ±0.0001" Accuracy)	64PKA068B	0000000	0000000	0000000	000000
0" to 6"	Friction	One 6" Ruler (32nds, 50ths, 64ths, 100ths Graduations) One Caliper (0"-6" Measuring Range, 0.001" Measuring Increments, ±0.001" Accuracy) One Micrometer (0"-1" Measuring Range, 0.0001" Measuring Increments, ±0.0001" Accuracy) One Lever-Style Dial Indicator (0"-0.04" Measuring Range, 0.001" Measuring Increments, ±0.001" Accuracy)	64PKA069C	00000000	000000	00000000	000000
0" to 6"	Friction	One 6" Ruler (32nds, 50ths, 64ths, 100ths Graduations) One Caliper (0"-6" Measuring Range, 0.001" Measuring Increments, ±0.001" Accuracy) One Micrometer (0"-1" Measuring Range, 0.0001" Measuring Increments, ±0.0001" Accuracy) One Depth Micrometer (0"-6" Measuring Range, 0.001" Measuring Increments, ±0.00015" Accuracy)	64PKA070C	00000000	000000	00000000	000000

Starrett Precision Measuring Tool Sets

Distance Measured Range	Thimble Type	Includes	Mfr. Model No.		Each
0" to 6"	Ratchet	One 6" Ruler (8ths, 16ths, 32nds, 64ths Graduations) One Caliper (0"-6" Measuring Range, 0.001" Measuring Increments, ±0.001" Accuracy) One Micrometer (0"-1" Measuring Range, 0.0001" Measuring Increments, ±0.00005" Accuracy)	S909Z	0000000	0000000

Starrett Digital Precision Measuring Tool Sets

Set includes a caliper, a micrometer, and a case. The micrometer has a friction thimble with a constant-force mechanism, so that once the spindle contacts the surface of the measured object, it will stop tightening. This ensures repeatable measurements and prevents over-tightening. Once the spindle stops tightening, the thimble will continue turning with resistance.

Zero-position memory, also known as absolute (ABS) positioning, retains the measuring position when the caliper or micrometer is turned off. A zero-set button allows you to start measuring at any point.

Distance Measured Range	Thimble Type	Batteries Included	Includes	Mfr. Model No.		Each
0" to 6", 0 mm to 150 mm	Friction	Yes	One Caliper (0"-6"/0 mm-150 mm Measuring Range, 0.0005"/0.01 mm Measuring Increments, ±0.001"/±0.02 mm Accuracy) One Micrometer (0"-1"/0 mm-25 mm Measuring Range, 0.0001"/0.001 mm Measuring Increments, ±0.0001"/±0.002 mm Accuracy)	S766AZ	00000000	0000000

Replacement Batteries

Economy Digital Precision Measuring Tool Sets

Set includes a caliper, a micrometer, and a case. The micrometer has a ratchet thimble with a constant-force mechanism, which stops the spindle from tightening once it contacts the surface of the measured object. This ensures repeatable measurements and prevents over-tightening. When the spindle stops tightening, the thimble will continue turning with a clicking sound. A speeder knob reduces the time it takes to open and close the micrometer.

Distance Measured Range	Thimble Type	Batteries Included	Includes		Each
0" to 6", 0 mm to 150 mm	Ratchet	Yes	One Caliper (0"-6"/0 mm-150 mm Measuring Range, 0.0005"/0.01 mm Measuring Increments, ±0.001"/±0.02 mm Accuracy) One Micrometer (0"-1"/0 mm-25 mm Measuring Range, 0.00005"/0.001 mm Measuring Increments, ±0.00016"/±0.004 mm Accuracy)	000000	0000000

Replacement Batteries

Starrett Digital Precision Measuring Tool Sets with Calibration Certificate

Image of Product. Front orientation. Precision Measuring Tool Sets. Starrett Digital Precision Measuring Tool Sets with Calibration Certificate.

This set comes with calibration certificates traceable to NIST that state each tool has passed a test for accuracy. It includes a caliper, a micrometer, and a case. The micrometer has a friction thimble with a constant-force mechanism, so that once the spindle contacts the surface of the measured object, it will stop tightening. This ensures repeatable measurements and prevents over-tightening. Once the spindle stops tightening, the thimble will continue turning with resistance.

Distance Measured Range	Thimble Type	Batteries Included	Includes	Mfr. Model No.		Each
0" to 6", 0 mm to 150 mm	Friction	Yes	One Caliper (0"-6"/0 mm-150 mm Measuring Range, 0.0005"/0.01 mm Measuring Increments, ±0.001"/±0.02 mm Accuracy) One Micrometer (0"-1"/0 mm-25 mm Measuring Range, 0.0001"/0.001 mm Measuring Increments, ±0.0001"/±0.002 mm Accuracy)	S766AZ	00000000	0000000

Replacement Batteries

Starrett Precision Measuring Tool Sets with Calibration Certificate

This set comes with calibration certificates traceable to NIST that state each tool has passed a test for accuracy. It includes a dial caliper, a micrometer, a ruler, and a case. The micrometer has a ratchet thimble with a constant-force mechanism, which stops the spindle from tightening once it contacts the surface of the measured object. This ensures repeatable measurements and prevents over-tightening. When the spindle stops tightening, the thimble will continue turning with a clicking sound. A speeder knob reduces the time it takes to open and close the micrometer.

Distance Measured Range	Thimble Type	Includes	Mfr. Model No.		Each
0" to 6"	Ratchet	One 6" Ruler (8ths, 16ths, 32nds, 64ths Graduations) One Caliper (0"-6" Measuring Range, 0.001" Measuring Increments, ±0.001" Accuracy) One Micrometer (0"-1" Measuring Range, 0.0001" Measuring Increments, ±0.00005" Accuracy)	S909Z	0000000	0000000

Outside Micrometer Sets

Stock up your shop so you always have the measuring range you need. These micrometers come in a convenient case to store and organize them in one place.

To find your exact measurements, read the scales on the sleeve and thimble. These micrometers are free of electronic components that could break if dropped or short-circuit if wet. You don't have to replace any batteries, so they're always ready for the job.

Mitutoyo—The go-to for machinists and engineers. Every part is made within a Mitutoyo automated factory and tested in-house in Japan. The spindle glides as you turn the thimble with a weighty, silky-smooth feel.

Starrett—Precision machined and tested in the U.S. These Starrett micrometers come packaged in their iconic wood case, so you'll be able to spot them on the busiest of bench tops.

McMaster-Carr Approved—The performance of brand-name calipers without the cost.

Calibration Certificate—Choose these micrometers when precision measurements are required for quality control or by regulation. The certificate is traceable to NIST, so you can be confident your measurements are correct and consistent.

Friction Thimble—Control how tightly the spindle closes on your part without the risk of damaging it. You can keep extending the spindle in small increments once it reaches your workpiece but not enough to overtighten. The thimble will start to resist turning to let you know you’ve applied the right amount of pressure.

Ratchet-Stop Thimble—Best for consistent, repeatable measurements. The spindle stops extending the moment it reaches your part, so it won’t overtighten. Hear and feel a satisfying click that confirms you’ve applied the right amount of pressure.

									Outside Micrometers		Outside Micrometers with Calibration Certificate
	No. of Micrometers	Includes	Measuring Range	Measuring Increments	Thimble Type	Frame Material	Measurement Scale Type	Mfr. Model No.		Each		Each
Mitutoyo



		6	One Micrometer (0"-1" Measuring Range, ±0.0001" Measuring Accuracy, Friction Thimble) One Micrometer (1"-2" Measuring Range, ±0.0001" Measuring Accuracy, Friction Thimble) One Micrometer (2"-3" Measuring Range, ±0.0001" Measuring Accuracy, Ratchet-Stop Thimble) One Micrometer (3"-4" Measuring Range, ±0.00015" Measuring Accuracy, Ratchet-Stop Thimble) One Micrometer (4"-5" Measuring Range, ±0.00015" Measuring Accuracy, Ratchet-Stop Thimble) One Micrometer (5"-6" Measuring Range, ±0.00015" Measuring Accuracy, Ratchet-Stop Thimble)	0" to 6"	0.0001"	Friction/Ratchet Stop	Cast Iron	Vernier	103-907-40	00000000	0000000	00000000	000000000


		Starrett



				6	One Micrometer (0"-1" Measuring Range) One Micrometer (1"-2" Measuring Range) One Micrometer (2"-3" Measuring Range) One Micrometer (3"-4" Measuring Range) One Micrometer (4"-5" Measuring Range) One Micrometer (5"-6" Measuring Range)	0" to 6"	0.0001"	Ratchet Stop	Steel	Vernier	ST436.1CXRLZ	00000000	00000000	0000000	00000000


				McMaster-Carr Approved



						6	One Micrometer (0"-1" Measuring Range, ±0.00016" Measuring Accuracy) One Micrometer (1"-2" Measuring Range, ±0.00016" Measuring Accuracy) One Micrometer (2"-3" Measuring Range, ±0.0002" Measuring Accuracy) One Micrometer (3"-4" Measuring Range, ±0.0002" Measuring Accuracy) One Micrometer (4"-5" Measuring Range, ±0.00024" Measuring Accuracy) One Micrometer (5"-6" Measuring Range, ±0.00024" Measuring Accuracy)	0" to 6"	0.0001"	Ratchet Stop	Steel	—	—	0000000	000000	———	0

Coolant-Resistant Wide-Range Digital Outside Micrometers

Check different-sized parts as you machine them without swapping between tools. These micrometers come with multiple anvils that you switch out, so you don't need to lug around a case of micrometers. Whether you're milling or drilling, the display and battery cover are tightly sealed, so spraying and dripping coolant won't seep in.

With an LCD display, these micrometers give instant measurements—no need to read scales. Swap between inch and metric or set the position to zero, all with the press of a button. You don't need to reset the zero point since they retain their position when turned off, also known as absolute (ABS) positioning.

With SPC Data Output—Send measurements to a computer or data processor to store, analyze, and manage data. You'll need a data cable or SPC wireless transmitter and receiver.

	Measuring Range		Accuracy		Measuring Increments								Outside Micrometers		Outside Micrometers with Calibration Certificate
	Inch	Metric, mm	Inch	Metric	Inch	Metric, mm	Thimble Type	Throat Dp.	Frame Material	Enclosure Rating	Mfr. Model No.	Includes		Each		Each
Mitutoyo







				With SPC Data Output

				0" to 6"	0 to 152	±0.0003"	±0.008 mm	0.00005"	0.001	Ratchet Stop	3 1/2"	Cast Iron	IP65	340-351-30	Five Calibration Rods Six Anvils	0000000	0000000	0000000	0000000

Accessories and Replacements for Outside Micrometers

SPC Data Cables


Mitutoyo Data Out Switch B × 10-Pin Mitutoyo Connector	Mitutoyo Data Out Switch B × USB-A

USB-A Connection—Plug micrometers with SPC data output directly into your computer.

10-Pin Mitutoyo Connector—Connect micrometers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

	Lg.		Each
Mitutoyo



	Mitutoyo Data Out Switch B × 10-Pin Mitutoyo Connector	40"	00000000	0000000


	Mitutoyo Data Out Switch B × 10-Pin Mitutoyo Connector	80"	00000000	000000
	Mitutoyo Data Out Switch B × USB-A	80"	000000	000000

SPC Wireless Transmitters

Mitutoyo Data Out Switch B

Connection

Wirelessly send measurements from micrometers with SPC data output to your computer. You'll also need a receiver.

Electrical Connection	Mfr. Series		Each
Mitutoyo Data Out Switch B	U-WAVE-T	000000	0000000

SPC Wireless Receivers

Wirelessly send measurements from micrometers with SPC data output to your computer. You'll also need a transmitter.

	For Mfr. Series		Each
Mitutoyo



	USB-A	U-WAVE-T	000000	0000000

			Pkg.
	Pkg. Qty.		1-9	10-49	50-Up
Replacement CR2032 Lithium Battery	1	0000000	00000	00000	00000
