Zinc-Plated Steel Formable Cable and Hose Trays
The zinc plating on these tray systems offers good corrosion resistance. Cut, bend, and connect the wire mesh trays to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
For technical drawings and 3-D models, click on a part number.



For Tray Wd. | Material | Mounting Hole Dia. | Mounting Hardware Included | Each | |
For Horizontal Tray | |||||
---|---|---|---|---|---|
4" | Zinc-Plated Steel | 7/16" | No | 0000000 | 00000 |
6" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
8" | Zinc-Plated Steel | 7/16" | No | 0000000 | 00000 |
12" | Zinc-Plated Steel | 7/16" | No | 0000000 | 00000 |
16" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
20" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
24" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
For Vertical Tray | |||||
8" | Zinc-Plated Steel | 5/16" | No | 0000000 | 0000 |
12" | Zinc-Plated Steel | 5/16" | No | 0000000 | 00000 |
Corrosion-Resistant Stainless Steel Formable Cable and Hose Trays
These are the most corrosion-resistant tray systems we offer for routing cable and hose in configurations such as curves, slopes, and tees. Cut, bend, and connect the wire mesh trays. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
For technical drawings and 3-D models, click on a part number.




For Tray Wd. | Material | Mounting Hole Dia. | Mounting Hardware Included | Each | |
For Horizontal Tray | |||||
---|---|---|---|---|---|
4" | Stainless Steel | 11/32" | No | 0000000 | 000000 |
6" | Stainless Steel | 3/8" | No | 00000000 | 00000 |
8" | Stainless Steel | 13/32" | No | 0000000 | 00000 |
12" | Stainless Steel | 13/32" | No | 0000000 | 00000 |
16" | Stainless Steel | 3/8" | No | 00000000 | 00000 |
For Vertical Tray | |||||
8" | Stainless Steel | 5/16" | No | 0000000 | 00000 |
12" | Stainless Steel | 5/16" | No | 0000000 | 00000 |
Steel Formable Cable and Hose Trays
Cut, bend, and connect these wire mesh tray systems to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
All components are painted black to blend into dark backgrounds.
For technical drawings and 3-D models, click on a part number.
![]() For 4", 8", and 12" Wd. Horizontal Trays | ![]() For 6", 16", 18", and 24" Wd. Horizontal Trays |

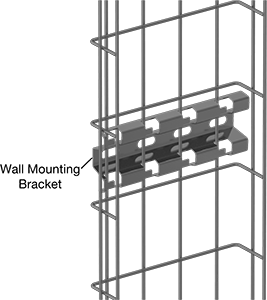

![]() For 8" and 12" Wd. Vertical Trays |
For Tray Wd. | Material | Color | Mounting Hole Dia. | Mounting Hardware Included | Each | |
For Horizontal Tray | ||||||
---|---|---|---|---|---|---|
4" | Painted Steel | Black | 7/16" | No | 0000000 | 00000 |
6" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
8" | Painted Steel | Black | 7/16" | No | 0000000 | 00000 |
12" | Painted Steel | Black | 7/16" | No | 0000000 | 00000 |
16" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
18" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
24" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
For Vertical Tray | ||||||
8" | Painted Steel | Black | 5/16" | No | 0000000 | 0000 |
12" | Painted Steel | Black | 5/16" | No | 0000000 | 00000 |
