Air-Powered Chipping Hammers
More powerful than Air-Powered Chiseling Hammers, use these tools for heavy material removal and in foundry and fabrication shops.
Piston stroke determines the hammering power. The longer the stroke, the greater the power.
Swivel hose connectors (sold separately) eliminate cracked hoses due to kinking and broken inlet bushings. The connectors screw into the air inlet and allow hose to swivel with the hammer.
Mufflers (sold separately) cover the tool’s exhaust port to reduce sound.
Curved Grip
D-Handle Grip
Air Inlet | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Blows per Minute | Piston Stroke | Average Air Consumption, cfm | Recommended Operating Air Pressure, psi | Pipe Size  | Thread Type | Gender | For Air Hose ID | For Chisel Collar Shape | O'all Lg. | Wt., lbs. | Housing Material | Each | |
For 0.580" Hex Chisel Shank | |||||||||||||
Curved Grip—Lever Speed Control | |||||||||||||
| 2,500 | 1" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 15 1/2" | 14.8 | Steel | 0000000 | 0000000 |
| 2,300 | 2" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 16" | 15.1 | Steel | 0000000 | 000000 |
| 1,725 | 3" | 29 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 18" | 16.6 | Steel | 0000000 | 000000 |
| 1,480 | 4" | 29 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 19" | 17.5 | Steel | 0000000 | 000000 |
D-Handle Grip—Lever Speed Control | |||||||||||||
| 2,450 | 1" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 12" | 16 | Steel | 00000000 | 000000 |
| 2,300 | 2" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 14" | 18 | Steel | 00000000 | 000000 |
| 2,100 | 3" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 15 1/4" | 19 | Steel | 00000000 | 000000 |
| 1,700 | 4" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 16 1/2" | 20 | Steel | 00000000 | 000000 |
For 0.680" Round Chisel Shank | |||||||||||||
Curved Grip—Lever Speed Control | |||||||||||||
| 2,500 | 1" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 15 1/2" | 14.8 | Steel | 0000000 | 000000 |
| 2,300 | 2" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 16" | 15.1 | Steel | 0000000 | 000000 |
| 1,725 | 3" | 29 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 18" | 16.6 | Steel | 0000000 | 000000 |
| 1,480 | 4" | 29 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 19" | 17.5 | Steel | 0000000 | 000000 |
D-Handle Grip—Lever Speed Control | |||||||||||||
| 2,450 | 1" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 12" | 16 | Steel | 00000000 | 000000 |
| 2,300 | 2" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 14" | 18 | Steel | 00000000 | 000000 |
| 2,100 | 3" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 15 1/4" | 19 | Steel | 00000000 | 000000 |
| 1,700 | 4" | 28 | 90 | 3/8 | NPT | Female | 1/2" | Oval | 16 1/2" | 20 | Steel | 00000000 | 000000 |
Chisels
Flat Chisel Bit Blade
Point Blade
Hex Shank | Round Shank | |||||||
|---|---|---|---|---|---|---|---|---|
| Blade Wd. | O'all Lg. | Shank Type | Collar Shape | Material | Each | Each | ||
Flat Chisel Bit Blade | ||||||||
| 1" | 9" | 0.580" Hex | Oval | Steel | 0000000 | 000000 | 000000 | 00 |
| 1" | 9" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 000000 |
| 1" | 12" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 1" | 12" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
| 1" | 18" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 1" | 18" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
| 1" | 24" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 1" | 24" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
| 1" | 36" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
| 2" | 9" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 2" | 9" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
| 2" | 12" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 2" | 12" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
| 3" | 9" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 3" | 9" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
Point Blade | ||||||||
| 1/4" | 9" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 1/4" | 9" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |
| 1/4" | 12" | 0.580" Hex | Oval | Steel | 0000000 | 00000 | 000000 | 00 |
| 1/4" | 12" | 0.680" Round | Oval | Steel | 000000 | 00 | 0000000 | 00000 |

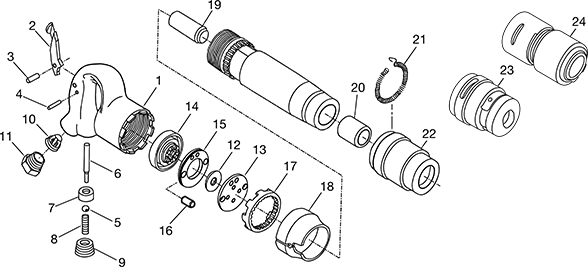

Replacement Parts for Curved Grip Hammers
| Style | Component | Each | |
| 1 | Handle | 00000000 | 0000000 |
| 2 | Throttle Lever | 00000000 | 00000 |
| 3 | Throttle Lever Pin | 00000000 | 0000 |
| 4 | Throttle Lever Stop Pin | 00000000 | 0000 |
| 5 | Throttle Valve Ball | 00000000 | 0000 |
| 6 | Throttle Valve Plunger | 00000000 | 00000 |
| 7 | Throttle Valve Plunger Bushing | 00000000 | 00000 |
| 8 | Throttle Valve Spring | 00000000 | 0000 |
| 9 | Throttle Valve Cap | 00000000 | 00000 |
| 10 | Air Strainer | 00000000 | 00000 |
| 11 | Inlet Bushing | 00000000 | 00000 |
| 12 | Valve Washer | 00000000 | 00000 |
| 13 | Valve Seat | 00000000 | 000000 |
| 14 | Valve Cap | 00000000 | 000000 |
| 15 | Valve Spacer | 00000000 | 000000 |
| 16 | Dowel Pin | 00000000 | 00000 |
| 17 | Locking Ring | 00000000 | 00000 |
| 18 | Exhaust Deflector | 00000000 | 00000 |
| 19 | Piston (for models 5957A11, A12, A15, and A16) | 00000000 | 000000 |
| 19 | Piston (for models 5957A13, A14, A17, and A18) | 00000000 | 000000 |
| 20 | Hexagon Nozzle | 00000000 | 00000 |
| 20 | Round Nozzle | 00000000 | 00000 |
| 21 | Lock Spring | 00000000 | 0000 |
| 22 | Plain Retainer | 00000000 | 00000 |
| 23 | Quick-Change Retainer for Oval Collar Chisels | 00000000 | 00000 |
| 24 | Quick-Change Retainer for Oval and Round Collar Chisels | 00000000 | 000000 |

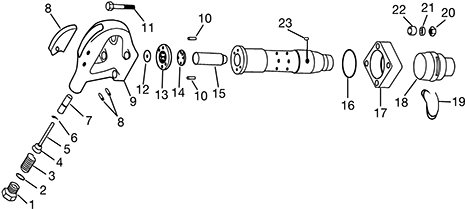

Replacement Parts for D-Handle Grip Hammers
| Style | Component | Each | |
| 1 | Inlet Bushing | 000000000 | 000000 |
| 2 | Inlet O-Ring | 000000000 | 0000 |
| 3 | Spring | 000000000 | 0000 |
| 4 | Throttle Valve | 000000000 | 0000 |
| 5 | Throttle Valve Pin | 000000000 | 0000 |
| 6 | Throttle Valve O-Ring | 000000000 | 0000 |
| 7 | Throttle Bushing | 000000000 | 00000 |
| 8 | Trigger and Two Valve Pins | 000000000 | 0000 |
| 9 | Handle—Includes Throttle Bushing, Trigger and Two Valve Pins | 000000000 | 000000 |
| 10 | Valve Pin | 000000000 | 0000 |
| 11 | Flange Bolt | 000000000 | 0000 |
| 12 | Disc Valve | 000000000 | 0000 |
| 13 | Seat Valve | 000000000 | 00000 |
| 14 | Valve Bumper | 000000000 | 0000 |
| 15 | Piston for 1" Stroke | 000000000 | 00000 |
| 15 | Piston for 2" Stroke | 000000000 | 00000 |
| 15 | Piston for 3" Stroke | 000000000 | 00000 |
| 16 | Absorbing Ring | 000000000 | 000 |
| 17 | Flange | 000000000 | 000000 |
| 18 | Retainer | 00000000 | 00000 |
| 19 | Retainer Spring | 000000000 | 00000 |
| 20 | Nyloc Nut | 000000000 | 00000 |
| 21 | Washer | 000000000 | 0000 |
| 22 | Spacer | 000000000 | 0000 |
| 23 | Plug | 000000000 | 0000 |
