Double-Acting Round Body Air Cylinders
Push and pull light duty loads. These air cylinders use compressed air to both extend and retract, so they operate at nearly full force in either direction. They have a round body—the most common style of air cylinder—making them more compact and better suited for tight spaces than cylinders with external tie rods.
Universal-mount cylinders have mounting threads on both ends. The back end has a pivot bushing, which allows for more mounting options than nose-mount cylinders. Nose-mount cylinders only have mounting threads on the front end, so they’re shorter than universal-mount cylinders.
Sensor-ready cylinders have a magnetic piston that can activate relays and controllers when used with a sensor (sold separately). When the piston moves past the sensor, the sensor activates. You can use multiple sensors—attach one for each action to trigger.
Cylinders with an adjustable cushion absorb piston impact to minimize wear and noise. Turn the screws to adjust the level of cushioning.
For technical drawings and 3-D models, click on a part number.

Lg. | Air Inlet | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Stroke | Retracted | Extended | Force @ 100 psi, lbs. | Sensor Ready | Air Cushion Type | Body Material | Pipe Size | Thread Type | Gender | Each | |
20mm Bore Size (24mm OD) | |||||||||||
10mm | 136mm | 146mm | 48 | Not Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 0000000 |
10mm | 136mm | 146mm | 48 | Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
25mm | 151mm | 176mm | 48 | Not Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
25mm | 151mm | 176mm | 48 | Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
25mm | 151mm | 176mm | 49 | Not Sensor Ready | Adjustable Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
50mm | 176mm | 226mm | 48 | Not Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
50mm | 176mm | 226mm | 48 | Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
50mm | 176mm | 226mm | 49 | Not Sensor Ready | Adjustable Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
80mm | 206mm | 286mm | 48 | Not Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
80mm | 206mm | 286mm | 48 | Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
80mm | 206mm | 286mm | 49 | Not Sensor Ready | Adjustable Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
100mm | 226mm | 326mm | 48 | Not Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |
100mm | 226mm | 326mm | 48 | Sensor Ready | No Cushion | 304 Stainless Steel | 1/8 | BSPP | Female | 00000000 | 000000 |

Instead of attaching your round body air cylinder directly to equipment, add a mount to best suit your application.
Foot brackets prevent cylinders from moving back and forth.
Pivot brackets for universal-mount air cylinders allow the rear portion of cylinders to pivot back and forth.
Rod clevises thread to cylinder shafts to allow swiveling.
Rod ends are internally threaded. They have an eyelet and ball that swivel to support angular misalignment and allow for pivoting.
Rod end nuts are internally threaded. They have an eyelet to make pivoting and hinge movements.
Stainless steel mounts are more corrosion resistant than steel and aluminum for use in wet or damp environments.
For Bore Size | Wd. | Ht. | Dp. | Base Plate Thick. | Material | Each | |
20mm, 25mm | 56mm | 40mm | 24mm | 4.5mm | Zinc-Plated Steel | 00000000 | 000000 |

Instead of attaching your round body air cylinder directly to equipment, add a mount to best suit your application.
Foot brackets prevent cylinders from moving back and forth.
Pivot brackets for universal-mount air cylinders allow the rear portion of cylinders to pivot back and forth.
Rod clevises thread to cylinder shafts to allow swiveling.
Rod ends are internally threaded. They have an eyelet and ball that swivel to support angular misalignment and allow for pivoting.
Rod end nuts are internally threaded. They have an eyelet to make pivoting and hinge movements.
Stainless steel mounts are more corrosion resistant than steel and aluminum for use in wet or damp environments.
For Bore Size | Wd. | Ht. | Dp. | Jaw Opening Wd. | Material | Includes | Each | |
20mm, 25mm | 24.1mm | 40mm | 32mm | 16.1mm | Zinc-Plated Steel | Pin | 00000000 | 000000 |

Instead of attaching your round body air cylinder directly to equipment, add a mount to best suit your application.
Foot brackets prevent cylinders from moving back and forth.
Pivot brackets for universal-mount air cylinders allow the rear portion of cylinders to pivot back and forth.
Rod clevises thread to cylinder shafts to allow swiveling.
Rod ends are internally threaded. They have an eyelet and ball that swivel to support angular misalignment and allow for pivoting.
Rod end nuts are internally threaded. They have an eyelet to make pivoting and hinge movements.
Stainless steel mounts are more corrosion resistant than steel and aluminum for use in wet or damp environments.
For Bore Size | Lg. | Ht. | Jaw Opening Wd. | Thread Size | Material | Includes | Each | |
20mm | 42mm | 16mm | 8mm | M8 × 1.25 mm | Zinc-Plated Steel | Nut, Pin | 00000000 | 000000 |

Instead of attaching your round body air cylinder directly to equipment, add a mount to best suit your application.
Foot brackets prevent cylinders from moving back and forth.
Pivot brackets for universal-mount air cylinders allow the rear portion of cylinders to pivot back and forth.
Rod clevises thread to cylinder shafts to allow swiveling.
Rod ends are internally threaded. They have an eyelet and ball that swivel to support angular misalignment and allow for pivoting.
Rod end nuts are internally threaded. They have an eyelet to make pivoting and hinge movements.
Stainless steel mounts are more corrosion resistant than steel and aluminum for use in wet or damp environments.
For Bore Size, mm | Lg., mm | Wd., mm | Ht., mm | Material | Includes | Each | |
20 | 48 | 14 | 24 | Zinc-Plated Steel | Nut | 00000000 | 000000 |
Mounts for Round Body Air Cylinders
Instead of attaching your round body air cylinder directly to equipment, add a mount to best suit your application.
Foot brackets prevent cylinders from moving back and forth.
Pivot brackets for universal-mount air cylinders allow the rear portion of cylinders to pivot back and forth.
Rod clevises thread to cylinder shafts to allow swiveling.
Rod ends are internally threaded. They have an eyelet and ball that swivel to support angular misalignment and allow for pivoting.
For technical drawings and 3-D models, click on a part number.

For Bore Size | Wd. | Ht. | Dp. | Base Plate Thick. | Material | Each | |
20mm, 25mm | 56mm | 40mm | 24mm | 4.5mm | Zinc-Plated Steel | 00000000 | 000000 |

For Bore Size | Wd. | Ht. | Dp. | Jaw Opening Wd. | Base Plate Thick. | Material | Includes | Each | |
20mm, 25mm | 24.1mm | 40mm | 32mm | 16.1mm | 4mm | Zinc-Plated Steel | Pin | 00000000 | 000000 |

For Bore Size | Lg. | Ht. | Jaw Opening Wd. | Thread Size | Material | Includes | Each | |
20mm | 42mm | 16mm | 8mm | M8 × 1.25 mm | Zinc-Plated Steel | Nut, Pin | 00000000 | 000000 |

For Bore Size | Lg. | Wd. | Ht. | ID | Material | Includes | Each | |
20mm | 48mm | 14mm | 24mm | 8mm | Zinc-Plated Steel | Nut | 00000000 | 000000 |
Rotary Clamping Air Cylinders


Clamp items in place to complete a step in your manufacturing process. These air cylinders rotate while actuating, so you can position, assemble, and inspect items. The body of these air cylinders has threaded through-holes on the face and sides, so you can mount them directly to equipment and thread accessories on. The rod is internally threaded, allowing you to attach an arm as needed for your application.
The piston is magnetic, so you can use these slides with sensors (not included) to activate relays and controllers. When the piston moves past a sensor, the sensor activates. You can use multiple sensors—one for each action you want to trigger.
For technical drawings and 3-D models, click on a part number.
Lg. | Air Inlet | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

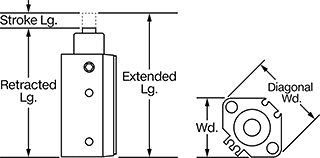

Stroke | Retracted | Extended | Diagonal Wd. | Force @ 100 psi, lbs. | Body Material | Rod Thread Size | Thread Size | Thread Type | Gender | Each | |
90° Clockwise Shaft Rotation | |||||||||||
Sensor-Ready Base Mount | |||||||||||
20mm Bore Size (36mm Wd.) | |||||||||||
10mm | 92mm | 112mm | 47mm | 44 | Aluminum | M8 × 1.25 mm | M5 × 0.8 | Metric | Female | 0000000 | 0000000 |
20mm | 112mm | 142mm | 47mm | 44 | Aluminum | M8 × 1.25 mm | M5 × 0.8 | Metric | Female | 0000000 | 000000 |
90° Counterclockwise Shaft Rotation | |||||||||||
Sensor-Ready Base Mount | |||||||||||
20mm Bore Size (36mm Wd.) | |||||||||||
10mm | 92mm | 112mm | 47mm | 44 | Aluminum | M8 × 1.25 mm | M5 × 0.8 | Metric | Female | 0000000 | 000000 |
20mm | 112mm | 142mm | 47mm | 44 | Aluminum | M8 × 1.25 mm | M5 × 0.8 | Metric | Female | 0000000 | 000000 |
Dust-Resistant Round Body Air Cylinders
Push and pull light duty loads in areas constantly exposed to dust and powders as fine as flour. With lubricant retainers around their piston to block particles, these cylinders last up to four times longer in dusty environments than standard air cylinders. They’re often used in ceramics and paper manufacturing facilities. These air cylinders use compressed air to both extend and retract, so they operate at nearly full force in either direction. They have a round body—the most common style of air cylinder—making them more compact and better suited for tight spaces than cylinders with external tie rods. All are universal mount, so they have threads on both ends. The back end has a pivot bushing, which allows for more mounting options than nose-mount cylinders.
These air cylinders have a magnetic piston that can activate relays and controllers when used with a sensor. When the piston moves past a sensor, the sensor activates. You can use multiple sensors—attach one for each action to trigger.
For technical drawings and 3-D models, click on a part number.

Lg., mm | Air Inlet | |||||||||
---|---|---|---|---|---|---|---|---|---|---|

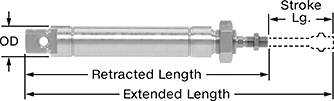

Stroke | Retracted | Extended | Force @ 100 psi, lbs. | Body Material | Thread Size | Thread Type | Gender | Features | Each | |
20 mm Bore Size (28 mm OD) | ||||||||||
25 | 141 | 166 | 44 | Stainless Steel | M5 × 0.8 | Metric | Female | Lubricant Retainers | 0000000 | 000000 |
50 | 166 | 216 | 44 | Stainless Steel | M5 × 0.8 | Metric | Female | Lubricant Retainers | 0000000 | 00000 |
75 | 191 | 266 | 44 | Stainless Steel | M5 × 0.8 | Metric | Female | Lubricant Retainers | 0000000 | 00000 |
100 | 216 | 316 | 44 | Stainless Steel | M5 × 0.8 | Metric | Female | Lubricant Retainers | 0000000 | 00000 |

For Bore Size, mm | Wd., mm | Ht., mm | Dp., mm | Base Plate Thick. | Material | Each | |
20 | 55 | 40 | 28 | 3.2 mm | Nickel-Plated Steel | 0000000 | 00000 |

For Bore Size, mm | Wd., mm | Ht., mm | Dp., mm | Jaw Opening Wd., mm | Material | Includes | Each | |
20, 25 | 18 | 40 | 59 | 12 | Nickel-Plated Steel | Pin, Retaining Rings | 0000000 | 00000 |

For Bore Size, mm | Lg., mm | Wd., mm | Ht., mm | ID, mm | Material | Each | |
20 | 48 | 14 | 24 | 8 | Zinc-Plated Steel | 0000000 | 00000 |

For Bore Size, mm | Overall Dia., mm | ID, mm | Thread Size | Material | Each | |
20 | 20 | 9 | M8 × 1.25 mm | Nickel-Plated Steel | 0000000 | 00000 |
Clean Room Round Body Air Cylinders
Minimize the release of particles that can damage electronics or contaminate batches as you push and pull light loads. These air cylinders are designed with seals and caps that prevent particles from escaping. A rod seal wipes grease particles off the rod as it moves back and forth. The seal is polyurethane, which is slippery, so it wears more slowly than standard seals, releasing fewer particles. These cylinders also have tightly crimped end caps to stop air from leaking.
With no tie rods on the outside, these round-body cylinders fit in tight spaces. They have an ISO industry-standard footprint that fits common mounting patterns for easy interchangeability. As universal-mount cylinders, they have mounting threads on both ends, giving you more mounting options than nose-mount cylinders. You can also pivot mount them with the through-hole on the back. They’re double acting, meaning they push and pull loads with equal force.
The piston is magnetic, so you can use these cylinders with sensors (sold separately) to activate relays and controllers. When the piston moves past a sensor, the sensor activates. You can use multiple sensors—one for each action you want to trigger.
For technical drawings and 3-D models, click on a part number.

Lg., mm | Air Inlet | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Stroke | Retracted | Extended | Force @ 100 psi, lbs. | Environmental Rating | Air Cushion Type | Body Material | Rod Thread Size | Pipe Size | Thread Type | Gender | Specifications Met | Each | |
20mm Bore Size (21mm OD) | |||||||||||||
25 | 157 | 182 | 48 | Fed. Std. Class 1,000, ISO Class 6 | Self Adjusting | Aluminum | M8 × 1.25 mm | 1/8 | BSPP | Female | ISO 6432 | 0000000 | 000000 |
50 | 182 | 232 | 48 | Fed. Std. Class 1,000, ISO Class 6 | Self Adjusting | Aluminum | M8 × 1.25 mm | 1/8 | BSPP | Female | ISO 6432 | 0000000 | 00000 |
70 | 202 | 272 | 48 | Fed. Std. Class 1,000, ISO Class 6 | Self Adjusting | Aluminum | M8 × 1.25 mm | 1/8 | BSPP | Female | ISO 6432 | 0000000 | 00000 |
100 | 232 | 332 | 48 | Fed. Std. Class 1,000, ISO Class 6 | Self Adjusting | Aluminum | M8 × 1.25 mm | 1/8 | BSPP | Female | ISO 6432 | 0000000 | 00000 |
125 | 257 | 382 | 48 | Fed. Std. Class 1,000, ISO Class 6 | Self Adjusting | Aluminum | M8 × 1.25 mm | 1/8 | BSPP | Female | ISO 6432 | 0000000 | 00000 |

Instead of attaching your round body air cylinder directly to equipment, add a mount to best suit your application.
Foot brackets prevent cylinders from moving back and forth.
Pivot brackets for universal-mount air cylinders allow the rear portion of cylinders to pivot back and forth.
Rod clevises thread to cylinder shafts to allow swiveling.
Rod ends are internally threaded. They have an eyelet and ball that swivel to support angular misalignment and allow for pivoting.
Rod end nuts are internally threaded. They have an eyelet to make pivoting and hinge movements.
Stainless steel mounts are more corrosion resistant than steel and aluminum for use in wet or damp environments.
For Bore Size, mm | Lg., mm | Ht., mm | Jaw Opening Wd., mm | Thread Size | Material | Includes | Each | |||
20 | 42 | 16 | 8 | M8 × 1.25 mm | Zinc-Plated Steel | Nut, Pin | Round Body | Universal | 00000000 | 000000 |

Shank Thread Size | ID, mm | Max. Ball Swivel | O'all Wd., mm | O'all Thick., mm | Shank Center Lg., mm | Shank Thread Lg., mm | Static Radial Load Cap., lbs. | Material | Shank Thread Direction | Each | |
M8 × 1.25 mm | 8 | 18° | 22 | 12 | 36 | 17 | 7,450 | Zinc-Plated Chrome-Moly Steel | Right Hand | 00000000 | 000000 |

For Bore Size | Each | |
20mm | 00000000 | 0000000 |

For Bore Size | Each | |
20mm | 00000000 | 0000000 |

For Bore Size | Each | |
20mm | 00000000 | 0000000 |
Flexible-Mount ISO Air Cylinders
For multiple mounting options, these air cylinders match an industry standard ISO footprint and have threaded holes on the face and sides. Their ISO footprint makes it easy to change out an old air cylinder. To mount them directly to equipment or add on attachments, use the threaded through holes. These cylinders are double acting, so they push and pull loads with equal force.
The piston is magnetic, so you can use these cylinders with sensors (not included) to activate relays and controllers. When the piston moves past a sensor, the sensor activates. You can use multiple sensors—one for each action you want to trigger.
For technical drawings and 3-D models, click on a part number.

Air Cylinders | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Lg. | Air Inlet | Sensors | |||||||||
Stroke, mm | Retracted, mm | Extended, mm | Force @ 100 psi, lbs. | Body Material | Thread Size | Thread Type | Gender | Each | Each | ||
20 mm Bore Size (36 mm Wd.) | |||||||||||
10 | 53 | 63 | 49 | Aluminum | M5 × 0.8 mm | Metric | Female | 0000000 | 000000 | 00000000 | 000000 |
25 | 68 | 93 | 49 | Aluminum | M5 × 0.8 mm | Metric | Female | 0000000 | 00000 | 00000000 | 00000 |
50 | 93 | 143 | 49 | Aluminum | M5 × 0.8 mm | Metric | Female | 0000000 | 00000 | 00000000 | 00000 |
80 | 123 | 203 | 49 | Aluminum | M5 × 0.8 mm | Metric | Female | 0000000 | 00000 | 00000000 | 00000 |

Base Mounting Holes | Top Mounting Holes | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Bore Size, mm | Wd., mm | Ht., mm | Dp., mm | Base Plate Thick., mm | No. of | Dia., mm | Ctr.-to-Ctr., mm | Mounting Fasteners Included | No. of | Dia., mm | Ctr.-to-Ctr., mm | Mounting Fasteners Included | Material | Each | |
20 | 23 | 22 | 36 | 4 | 2 | 7 | 22 | No | 2 | 6 | 22 | Yes | Zinc-Plated Steel | 00000000 | 00000 |

Inside Mounting Holes | Outside Mounting Holes | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Bore Size, mm | Wd., mm | Ht., mm | Thick., mm | No. of | Dia., mm | Ctr.-to-Ctr., mm | Mounting Fasteners Included | No. of | Dia., mm | Ctr.-to-Ctr., mm | Mounting Fasteners Included | Material | Each | |
20 | 38 | 68 | 8 | 4 | 6 | 22 | Yes | 2 | 7 | 55 | No | Anodized Aluminum | 00000000 | 000000 |

Mounting Holes | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
For Bore Size, mm | For Pin Dia., mm | Wd., mm | Ht., mm | Dp., mm | Base Plate Thick., mm | No. of | Ctr.-to-Ctr., mm | Mounting Fasteners Included | Material | Each | |
20 | 8 | 35 | 35 | 29 | 8 | 4 | 22 | Yes | Anodized Aluminum | 00000000 | 000000 |
For Bore Size, mm | Includes | Each | |
20 | Piston Seal, Rod Seal, Tube Gasket | 00000000 | 00000 |
Vacuum Lifting Air Cylinders


Combine the lifting power of a vacuum with the actuation of an air cylinder to automate processes such as pick and place. With a hollow rod that’s threaded to connect to a vacuum pad, these cylinders let you move items with suction. They’re double acting, meaning they pull loads as well as push them, and do so with equal force. Mount them directly to equipment or with attachments (not included) using the threaded through-holes on the face and sides of the body.
The piston is magnetic, so you can use these cylinders with sensors (not included) to activate relays and controllers. When the piston moves past a sensor, the sensor activates. You can use multiple sensors—one for each action you want to trigger.
For technical drawings and 3-D models, click on a part number.
Lg., mm | Air Inlet | Vacuum Connection | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Stroke | Retracted | Extended | Force @ 100 psi, lbs. | Sensor Ready | Body Material | Thread Size | Thread Type | Gender | Pipe Size | Thread Type | Gender | Each | |
20 mm Bore Size (26 mm Wd.) | |||||||||||||
15 | 116 | 146 | 44 | Sensor Ready | Anodized Aluminum | M5 × 0.8 | Metric | Female | 1/8 | NPT | Female | 0000000 | 0000000 |
25 | 136 | 186 | 44 | Sensor Ready | Anodized Aluminum | M5 × 0.8 | Metric | Female | 1/8 | NPT | Female | 0000000 | 000000 |
Easy-Install Flexible-Mount Air Cylinders
With an integrated valve and multiple mounting options, these air cylinders install quickly, right where you need them, to push and pull light loads. In addition to saving you setup time, the built-in valve reduces the number of air connection points in your system to cut down on air loss. They have threaded holes on the face and sides for mounting either directly to equipment or using attachments. These air cylinders are double acting, meaning they extend and retract with nearly equal force.
The magnetic piston inside these cylinders can activate relays and controllers when used with a sensor (sold separately). When the piston moves past the sensor, the sensor activates. You can use multiple sensors—attach one for each action to trigger.
For technical drawings and 3-D models, click on a part number.

Lg. | Air Inlet | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Stroke, mm | Retracted, mm | Extended, mm | Force @ 100 psi, lbs. | Air Cushion Type | Body Material | Tube OD, mm | Gender | Flow Coefficient (Cv) | Plug Type | Voltage | Maximum Flow Rate @ 100 psi | Each | |
20mm Bore Size (49mm Wd.) | |||||||||||||
25 | 75 | 100 | 45 | No Cushion | Aluminum | 6 | Female | 0.4 | 3-Pin M8 | 24V DC | 15scfm | 0000000 | 0000000 |
50 | 100 | 150 | 45 | No Cushion | Aluminum | 6 | Female | 0.4 | 3-Pin M8 | 24V DC | 15scfm | 0000000 | 000000 |
80 | 130 | 210 | 45 | No Cushion | Aluminum | 6 | Female | 0.4 | 3-Pin M8 | 24V DC | 15scfm | 0000000 | 000000 |

Mounting Holes | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
For Bore Size, mm | Wd., mm | Ht., mm | Dp., mm | Base Plate Thick., mm | No. of | Ctr.-to-Ctr., mm | Mounting Hardware Included | Material | Each | |
20 | 36 | 22 | 22 | 4 | 4 | 22 | Yes | Galvanized Steel | 0000000 | 000000 |

Mounting Holes | |||||||||
---|---|---|---|---|---|---|---|---|---|
For Bore Size, mm | Wd., mm | Ht., mm | Thick., mm | No. of | Ctr.-to-Ctr., mm | Mounting Hardware Included | Material | Each | |
20 | 36 | 36 | 12 | 4 | 22 | Yes | Anodized Aluminum | 0000000 | 000000 |

Inside Mounting Holes | Outside Mounting Holes | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Bore Size, mm | Wd., mm | Ht., mm | Thick., mm | No. of | Dia., mm | Ctr.-to-Ctr., mm | No. of | Dia., mm | Ctr.-to-Ctr., mm | Mounting Hardware Included | Material | Each | |
20 | 36 | 70 | 10 | 4 | 6.6 | 70 | 4 | 4.2 | 22 | Yes | Galvanized Steel | 0000000 | 000000 |

Mounting Holes | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
For Bore Size, mm | For Pin Dia., mm | Wd., mm | Ht., mm | Dp., mm | Base Plate Thick., mm | No. of | Ctr.-to-Ctr., mm | Mounting Hardware Included | Material | Each | |
20 | 8 | 36 | 36 | 28 | 8 | 4 | 22 | Yes | Aluminum | 0000000 | 000000 |

For Bore Size | DC Voltage | Solid State Output | Each | |
1 1/2", 2", 2 1/2", 3 1/4", 20mm, 25mm, 32mm, 40mm | 10V DC-30V DC | NPN | 00000000 | 000000 |
Air Slides
Convenient for use with devices such as grippers and printing heads, these air slides have a nonrotating head that provides steady motion and a larger mounting area than air cylinders. Air slides have two guide rods parallel to the piston that keep the head from twisting as it extends and retracts.
The magnetic piston inside these slides can activate relays and controllers when used with a sensor (not included). When the piston moves past the sensor, the sensor activates. You can use multiple sensors—attach one for each action to trigger.
For technical drawings and 3-D models, click on a part number.

For Bore Size | Includes | Each | |
3/4", 20mm | Internal Shock Pad, Rod Seal, Two Cartridge Cap Retainers, Two Cartridge Cap Seals, Two External Shock Pads, Two Piston Seals | 0000000 | 000000 |

For Bore Size | DC Voltage | Environmental Rating | Each | |
5/16", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 4.5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm | 4.5V DC- 30V DC | IP67 | 0000000 | 0000000 |
Locking Air Slides
Prevent sudden drops while raising and lowering grippers and other pick-and-place equipment. A safety end lock engages when air pressure is lost, stopping loads from falling or slamming against the air slide. The air slide guide rods keep the head from twisting as it extends and retracts for steadier motion than air cylinders. These air slides also have a larger mounting surface area compared to air cylinders, so you can mount or push larger items at the end of the slide.
The piston is magnetic, so it can activate relays and controllers when used with a sensor (sold separately). When the piston moves past the sensor, the sensor activates. You can use multiple sensors—attach one for each action to trigger.
For technical drawings and 3-D models, click on a part number.

Lg. | Air Inlet | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Stroke, mm | Retracted, mm | Extended, mm | Force @ 100 psi, lbs. | Carriage Material | Thread Size | Thread Type | Gender | Dynamic Horizontal Load Capacity, lbs. | Features | Each | |
20 mm Bore Size (64 mm Wd.) | |||||||||||
10 | 124 | 134 | 44 | Aluminum | M5 × 0.8 | Metric | Female | 35 | End Lock | 0000000 | 0000000 |
20 | 134 | 154 | 44 | Aluminum | M5 × 0.8 | Metric | Female | 35 | End Lock | 0000000 | 000000 |
40 | 154 | 194 | 44 | Aluminum | M5 × 0.8 | Metric | Female | 35 | End Lock | 0000000 | 000000 |
50 | 164 | 214 | 44 | Aluminum | M5 × 0.8 | Metric | Female | 35 | End Lock | 0000000 | 000000 |

For Bore Size | DC Voltage | Environmental Rating | Each | |
5/16", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 4.5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm | 4.5V DC-30V DC | IP67 | 0000000 | 0000000 |
Clean Room Air Slides
Prevent dust and fine particles from contaminating your clean room or damaging sensitive electronics while moving grippers and other pick-and-place equipment. These air slides have a port that connects to a vacuum or exhaust system to remove particles created by friction inside the slide before they contaminate your space. The guide rods keep the head from twisting as it extends and retracts for steadier motion than air cylinders. These air slides also have a larger mounting surface area compared to air cylinders, so you can mount or push larger items at the end of the slide.
The piston is magnetic, so you can use these slides with sensors (sold separately) to activate relays and controllers. When the piston moves past a sensor, the sensor activates. You can use multiple sensors—one for each action you want to trigger.
For technical drawings and 3-D models, click on a part number.

Lg., mm | Air Inlet | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Stroke | Retracted | Extended | Force @ 100 psi, lbs. | Carriage Material | Thread Size | Thread Type | Gender | Dynamic Horizontal Load Capacity, lbs. | Environmental Rating | Each | |
20 mm Bore Size (64 mm Wd.) | |||||||||||
20 | 116 | 136 | 44 | Aluminum | M5 × 0.8 | Metric | Female | 2 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 0000000 |
50 | 146 | 196 | 44 | Aluminum | M5 × 0.8 | Metric | Female | 1 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 000000 |
75 | 171 | 246 | 44 | Aluminum | M5 × 0.8 | Metric | Female | 1 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 000000 |

For Bore Size | DC Voltage | Environmental Rating | Each | |
5/16", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 4.5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm | 4.5V DC-30V DC | IP67 | 0000000 | 0000000 |
Clean Room Table Air Slides
Move optical equipment and other electronics sensitive to dust and fine particles from a range of mounting positions. These air slides have a port that connects to a vacuum or exhaust system to remove particles created by friction inside the slide before they contaminate your space. Compared to standard air slides, these slides have a platform that extends the mounting surface to the top of the slide. This design reduces the total space needed for a full stroke length. Two guide rods keep the head steady as it extends and retracts.
A magnetic piston inside these slides activates relays and controllers when used with a sensor (sold separately). When the piston moves past the sensor, the sensor activates. You can use multiple sensors—one for each action you want to trigger.
For technical drawings and 3-D models, click on a part number.


Lg. | Air Inlet | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Stroke, mm | Retracted, mm | Extended, mm | Force @ 100 psi, lbs. | Carriage Material | Pipe Size | Thread Type | Gender | Dynamic Horizontal Load Capacity, lbs. | Environmental Rating | Each | |
20 mm Bore Size (73 mm Wd.) | |||||||||||
10 | 121 | 131 | 98 | Aluminum | 1/8 | NPT | Female | 56 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 0000000 |
20 | 121 | 141 | 98 | Aluminum | 1/8 | NPT | Female | 56 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 000000 |
40 | 131 | 171 | 98 | Aluminum | 1/8 | NPT | Female | 56 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 000000 |
50 | 146 | 196 | 98 | Aluminum | 1/8 | NPT | Female | 56 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 000000 |
75 | 185 | 260 | 98 | Aluminum | 1/8 | NPT | Female | 56 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 000000 |
100 | 238 | 338 | 98 | Aluminum | 1/8 | NPT | Female | 56 | Fed. Std. Class 10, ISO Class 4 | 0000000 | 000000 |

For Bore Size | DC Voltage | Environmental Rating | Each | |
5/16", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 4.5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm | 4.5V DC-30V DC | IP67 | 0000000 | 0000000 |
Load-Stopping Air Cylinders

Control the movement of loads on your conveyor—the rod on these air cylinders extends to stop loads and retracts to let them pass. While standard air cylinders have a weaker rod that will bend with side impact, these air cylinders have a thick carbon steel rod that won’t bend. The rod is also chrome plated, so it won’t corrode in wet environments.
To activate relays and controllers using these air cylinders, add a sensor (sold separately).
For technical drawings and 3-D models, click on a part number.


Lg, mm | Air Inlet | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Stroke | Retracted | Extended | Diagonal Wd., mm | Force @ 100 psi, lbs. | Rod Dia., mm | Pipe Size | Thread Type | Gender | Each | |
20 mm Bore Size (36 mm Wd.) | ||||||||||
20 | 87 | 107 | 47 | 39 | 12 | 1/8 | NPT | Female | 0000000 | 0000000 |
Parts Metering Air Cylinders
Space out parts on your conveyor line or vibratory feeder. Also known as escapements, these air cylinders have at least one finger that extends to hold parts and then retracts to release them. The fingers are built to withstand force from the side, so your part won’t slip past. All fingers have tapped holes on all five of their faces, so you can mount attachments to any side of them.
One-finger cylinders can be spaced as far away from each other as needed, making them the best choice for use with large parts. Create a system of these air cylinders by placing multiple along your line to control the timing and speed with which they meter parts.
Two-finger cylinders are good for precisely positioning items for sealing, labeling, and inspection. Operating on fixed timing and sequencing, they extend one finger to stop a part then extend the other finger to separate it. The two fingers hold the part like you would between your thumb and index finger. When the part is ready to be released, they retract the first finger while the other finger continues to hold back other parts. Lastly, they retract the other finger to let the next part through.
For technical drawings and 3-D models, click on a part number.




Lg. | Air Inlet | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Stroke | Retracted, mm | Extended, mm | Finger Wd., mm | Jaw Wd., mm | Sensor Ready | Thread Size | Thread Type | Gender | Each | |
20mm Bore Size (64mm Wd.) | ||||||||||
20 | 135 | 155 | 11 | 14.5 | Sensor Ready | M5 × 0.8mm | Metric | Female | 0000000 | 0000000 |
