Electromagnetic Door Locks
For use alone or as part of an access-control system, these locks use electromagnetic force to hold single doors closed. Control the locks with a push-button switch or keypad door control (sold separately). When power is interrupted, they instantly release. All locks must be hardwired.
Flush mount locks mount under the door frame header. For locks with 500 lbs. and 1,500 lbs. of holding strength, a 5/8" thick filler plate (sold separately) is required if the mounting surface on the frame is less than 2" wide.
Offset mount locks mount on the door frame header and include a mounting bracket that extends the strike plate above the door.
Locks with instant locking action lock doors as soon as they are closed. Those with delayed locking action lock doors after a set amount of time.
Optional battery backup packs supply power during power interruptions.
For technical drawings and 3-D models, click on a part number.

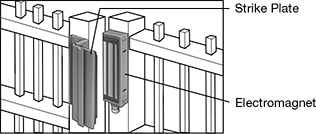

Electromagnet | Strike Plate | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Locking Action | Delayed Locking Time | Holding Strength | Voltage | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Mounting Hardware Included | Each | |
Flush Mount | ||||||||||||
RCI 8375 | ||||||||||||
| Instant | __ | 300 lbs. | 12V DC-24V DC | 1 1/2" | 6 9/16" | 13/16" | 1 1/4" | 5 1/8" | 3/8" | Yes | 00000000 | 0000000 |
Schlage M420 | ||||||||||||
| Instant | __ | 500 lbs. | 12V DC-24V DC | 2 1/2" | 9" | 1 1/2" | 1 3/4" | 5 5/16" | 5/8" | Yes | 00000000 | 000000 |
Schlage M490P | ||||||||||||
| Delayed | 0.5 sec.-30 sec. | 1,500 lbs. | 12V DC-24V DC | 3" | 12 1/2" | 1 3/4" | 2 1/4" | 8 3/4" | 1/2" | Yes | 0000000 | 000000 |
Offset Mount | ||||||||||||
RCI 8375 | ||||||||||||
| Instant | __ | 300 lbs. | 12V DC-24V DC | 1 1/2" | 6 9/16" | 13/16" | 1 1/4" | 5 1/8" | 3/8" | Yes | 00000000 | 000000 |
Schlage M420 | ||||||||||||
| Instant | __ | 500 lbs. | 12V DC-24V DC | 2 1/2" | 9" | 1 1/2" | 1 3/4" | 5 5/16" | 5/8" | Yes | 00000000 | 000000 |
Schlage M490P | ||||||||||||
| Delayed | 0.5 sec.-30 sec. | 1,500 lbs. | 12V DC-24V DC | 3" | 12 1/2" | 1 3/4" | 2 1/4" | 8 3/4" | 1/2" | Yes | 0000000 | 00000000 |
Electromagnetic Locks for Double Doors
For use alone or as part of an access-control system, these locks use electromagnetic force to hold double doors closed. Control the locks with a push-button switch or keypad door control (sold separately). When power is interrupted, they instantly release. The locks must be hardwired.
Locks include two strike plates to control two doors at once. They mount under the door frame header and lock the instant doors are closed. A 5/8" thick filler plate (sold separately) is required if the mounting surface on the frame is less than 2" wide.
Optional battery backup packs supply power during power interruptions.
For technical drawings and 3-D models, click on a part number.
Electromagnet | Strike Plate | Flush Mount | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Locking Action | Holding Strength | Voltage | Ht. | Wd. | Dp. | Ht. | Lg. | Dp. | Mounting Hardware Included | Each | |
Schlage M492 | |||||||||||
| Instant | 1,500 lbs. | 12V DC-24V DC | 3" | 25 1/16" | 1 3/4" | 2 1/4" | 8 3/4" | 1/2" | Yes | 0000000 | 000000000 |
Magnetic Latches
 1 |  2 |  3 |
 4 |  5 | |
 6 |  7 |  8 |
 9 |  10 |  11 |
 12 |  13 |  14 |
 15 |  16 |  17 |
 18 |  19 |
Often used on audio/visual cabinets, magnetic force keeps your doors closed. Note: Maximum pull-strength rating given is based on installation with the furnished strike plate; pull strength may be different based on the application.
Style 3 and 9 latches have two-piece strike plates for double doors that meet in the center.
Style 11 latches have an adjustable magnet that you can position for a secure hold.
Style 12 latches are designed for use on glass doors with wood frames. To install the strike plate, press it over the edge of the door. Secure the latch body to the underside of the top frame with a wood screw.
Style 19 latches have threaded studs that you secure with nuts from the back side of your door.
For technical drawings and 3-D models, click on a part number.
Magnetic Latches | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Strike Plate | Mounting | Replacement Strike Plates | |||||||||||||||
| Style | Max. Pull Strength, lbs. | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Material | Ht. | Wd. | Dp. | Dia. | Mounting Hole Ctr.-to-Ctr. | Fasteners Included | Screw Size  | Each | Each | ||
Aluminum—Dull | |||||||||||||||||
| 1 | 7 | 3/4" | 2 1/16" | 1" | 7/16", 1 11/16" | Steel | 13/16" | 1 1/8" | __ | __ | __ | Yes | No. 6, No. 8 | 0000000 | 00000 | 000000 | 00 |
| 1 | 13 | 3/4" | 2 1/16" | 1" | 7/16", 1 11/16" | Steel | 13/16" | 1 1/8" | __ | __ | __ | Yes | No. 4, No. 6 | 0000000 | 0000 | 000000 | 00 |
Aluminum—Polished | |||||||||||||||||
| 1 | 3 | 9/16" | 1 13/16" | 13/16" | 1 3/8" | Chrome-Plated Steel | 5/8" | 1 1/8" | 1/16" | __ | __ | Yes | M2.9, M3.1 | 00000000 | 0000 | 000000 | 00 |
Brown-Painted Aluminum—Dull | |||||||||||||||||
| 1 | 1 | 7/16" | 1 1/2" | 11/16" | 1 3/16" | Chrome-Plated Steel | 9/16" | 7/8" | 1/16" | __ | __ | Yes | M2.4, M3.1 | 00000000 | 0000 | 000000 | 00 |
Bronze-Plated Aluminum—Dull | |||||||||||||||||
| 1 | 12 | 3/4" | 2 1/16" | 1" | 1/2", 1 5/8" | Bronze-Plated Steel | 13/16" | 1 1/8" | 1/16" | __ | __ | Yes | No. 5, No. 6 | 00000000 | 0000 | 000000 | 00 |
Brass—Dull | |||||||||||||||||
| 1 | 34 | 15/16" | 3 1/2" | 2" | 7/8", 2 13/16" | Steel | 3/4" | 2 11/16" | __ | __ | 2 5/16" | Yes | No. 5, No. 6 | 000000 | 00000 | 000000 | 00 |
Nickel-Plated Brass—Dull | |||||||||||||||||
| 2 | 22 | 11/16" | 3 1/8" | 1/2" | 2 3/4" | Steel | 5/8" | 2 3/16" | __ | __ | 1 3/8" | No | M3 | 0000000 | 0000 | 0000000 | 00000 |
Chrome-Plated Brass—Dull | |||||||||||||||||
| 1 | 34 | 15/16" | 3 1/2" | 2" | 7/8", 2 13/16" | Steel | 3/4" | 2 11/16" | __ | __ | 2 5/16" | Yes | No. 5, No. 6 | 000000 | 00000 | 000000 | 00 |
White Plastic | |||||||||||||||||
| 1 | 2 | 1/4" | 1 7/16" | 1/2" | 1" | Zinc-Plated Steel | 7/16" | 1 3/16" | 1/16" | __ | 13/16" | Yes | M2.9, M3 | 0000000 | 0000 | 0000000 | 0000 |
| 1 | 3 | 3/8" | 1 5/8" | 5/8" | 1 1/4" | Chrome-Plated Steel | 7/16" | 7/8" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 1 | 6 | 1/4" | 1 7/16" | 1/2" | 1" | Zinc-Plated Steel | 7/16" | 1 3/16" | 1/16" | __ | 13/16" | Yes | M2.9, M3 | 0000000 | 0000 | 0000000 | 0000 |
| 1 | 6 | 1/2" | 2" | 15/16" | 1 5/8" | Zinc-Plated Steel | 13/16" | 1 1/8" | 1/16" | __ | __ | Yes | No. 6 | 00000000 | 0000 | 000000 | 00 |
| 1 | 7 | 3/8" | 1 5/8" | 5/8" | 1 1/4" | Chrome-Plated Steel | 7/16" | 7/8" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 3 | 11 | 1/2" | 3 3/8" | 11/16" | 3" | Stainless Steel | 7/16" | 1 3/16" | __ | __ | 13/16" | Yes | M2.6 | 0000000 | 0000 | 0000000 | 0000 |
| 3 | 12 | 5/8" | 4 3/16" | 13/16" | 3 11/16" | Stainless Steel | 9/16" | 1 1/2" | __ | __ | 1" | Yes | M2.6 | 0000000 | 00000 | 0000000 | 0000 |
| 4 | 6 | 15/16" | 2 1/16" | 1/4" | 1 3/4" | Nickel-Plated Steel | 15/16" | 1 5/16" | 1/16" | __ | 13/16" | No | M3 | 00000000 | 0000 | 000000 | 00 |
| 4 | 11 | 15/16" | 2 1/2" | 1/4" | 2 3/16" | Nickel-Plated Steel | 15/16" | 1 3/4" | 1/16" | __ | 1 3/16" | No | M3 | 00000000 | 0000 | 000000 | 00 |
| 5 | 2 | 7/16" | 1 3/4" | 1/2" | 1 7/16" | Chrome-Plated Steel | 1/2" | 1" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 5 | 8 | 7/16" | 1 3/4" | 1/2" | 1 7/16" | Chrome-Plated Steel | 1/2" | 1" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 5 | 17 | 7/16" | 1 3/4" | 5/16" | 1 7/16" | Zinc-Plated Steel | 7/16" | 1 3/16" | 1/8" | __ | 13/16" | No | M2.9, M3.1 | 00000000 | 00000 | 000000 | 00 |
Beige Plastic | |||||||||||||||||
| 1 | 6 | 1/2" | 2" | 15/16" | 1 5/8" | Zinc-Plated Steel | 13/16" | 1 1/8" | 1/16" | __ | __ | Yes | No. 6 | 00000000 | 0000 | 000000 | 00 |
| 1 | 6 | 1/2" | 2 1/8" | 1 1/16" | 1 5/8" | Steel | 7/8" | 1 3/16" | __ | __ | __ | Yes | No. 4, No. 8 | 0000000 | 0000 | 000000 | 00 |
| 1 | 15 | 9/16" | 2 1/8" | 7/8" | 1 5/8" | Steel | 13/16" | 1" | __ | __ | __ | Yes | No. 6 | 0000000 | 0000 | 000000 | 00 |
| 6 | 5 | 3/4" | 2" | 7/16" | 1 1/2" | Steel | 3/4" | 1 1/8" | 3/4" | __ | 3/4" | Yes | No. 8 | 00000000 | 0000 | 000000 | 00 |
Brown Plastic | |||||||||||||||||
| 1 | 4 | 1/2" | 1 13/16" | 5/8" | 1 7/16" | Zinc-Plated Steel | 7/8" | 1 3/16" | 1/16" | __ | __ | Yes | No. 5, No. 6 | 00000000 | 0000 | 000000 | 00 |
| 3 | 9 | 9/16" | 2 7/8" | 13/16" | 2 1/2" | Zinc-Plated Steel | 7/8" | 1 3/16" | 1/16" | __ | __ | Yes | No. 5, No. 6 | 00000000 | 0000 | 000000 | 00 |
Gray Plastic | |||||||||||||||||
| 5 | 11 | 7/16" | 1 3/4" | 1/2" | 1 7/16" | Chrome-Plated Steel | 1/2" | 1" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
Black Plastic | |||||||||||||||||
| 1 | 3 | 3/8" | 1 5/8" | 5/8" | 1 1/4" | Chrome-Plated Steel | 7/16" | 7/8" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 1 | 7 | 3/8" | 1 5/8" | 5/8" | 1 1/4" | Chrome-Plated Steel | 7/16" | 7/8" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 4 | 2 | 11/16" | 1 11/16" | 1/4" | 1 5/16" | Nickel-Plated Steel | 11/16" | 15/16" | 1/16" | __ | 1/2" | No | M3 | 00000000 | 0000 | 000000 | 00 |
| 4 | 6 | 15/16" | 2 1/16" | 1/4" | 1 3/4" | Nickel-Plated Steel | 15/16" | 1 5/16" | 1/16" | __ | 13/16" | No | M3 | 00000000 | 0000 | 000000 | 00 |
| 4 | 11 | 15/16" | 2 1/2" | 1/4" | 2 3/16" | Nickel-Plated Steel | 15/16" | 1 3/4" | 1/16" | __ | 1 3/16" | No | M3 | 00000000 | 0000 | 000000 | 00 |
| 5 | 2 | 7/16" | 1 3/4" | 1/2" | 1 7/16" | Chrome-Plated Steel | 1/2" | 1" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 5 | 8 | 7/16" | 1 3/4" | 1/2" | 1 7/16" | Chrome-Plated Steel | 1/2" | 1" | 1/16" | __ | __ | No | M3.5 | 00000000 | 0000 | 000000 | 00 |
| 5 | 17 | 7/16" | 1 3/4" | 5/16" | 1 7/16" | Zinc-Plated Steel | 7/16" | 1 3/16" | 1/8" | __ | 13/16" | No | M2.9, M3.1 | 00000000 | 00000 | 000000 | 00 |
Steel—Dull | |||||||||||||||||
| 2 | 4 | 3/8" | 1 7/16" | 3/16" | 1 1/8" | Stainless Steel | 5/8" | 1 15/16" | __ | __ | 1 9/16" | No | M3 | 0000000 | 0000 | 0000000 | 0000 |
Brown-Painted Steel—Dull | |||||||||||||||||
| 7 | 8 | 13/16" | 13/16" | 1 3/16" | __ | Steel | __ | __ | __ | 9/16" | __ | No | M3 | 00000000 | 0000 | 000000 | 00 |
Black Zinc-Plated Steel—Dull | |||||||||||||||||
| 8 | 6 | 5/16" | 1" | 15/16" | __ | Steel | 13/16" | 1 1/8" | __ | __ | __ | Yes | No. 5, No. 6 | 0000000 | 0000 | 000000 | 00 |
| 9 | 11 | 5/16" | 2" | 13/16" | 1" | Steel | 13/16" | 2" | __ | __ | 1 1/4" | Yes | No. 6 | 0000000 | 0000 | 000000 | 00 |
| 9 | 22 | 5/16" | 3" | 13/16" | 2" | Steel | 13/16" | 3" | __ | __ | 2" | Yes | No. 6 | 0000000 | 0000 | 000000 | 00 |
Nickel-Plated Steel—Dull | |||||||||||||||||
| 2 | 3 | 11/16" | 1 5/8" | 1/8" | 1 1/8" | Nickel-Plated Steel | 5/8" | 1 3/16" | 1/16" | __ | 5/8" | Yes | M3 | 0000000 | 0000 | 0000000 | 000 |
| 2 | 6 | 1/2" | 1 3/8" | 1/8" | 1" | Steel | 9/16" | 1 3/8" | __ | __ | 1" | Yes | M3 | 0000000 | 0000 | 0000000 | 000 |
| 2 | 9 | 11/16" | 1 11/16" | 1/8" | 1 1/8" | Steel | 5/8" | 1 3/16" | __ | __ | 5/8" | Yes | M3 | 0000000 | 0000 | 0000000 | 000 |
| 2 | 17 | 11/16" | 1 5/8" | 1/8" | 1 1/8" | Nickel-Plated Steel | 5/8" | 1 3/16" | 1/16" | __ | 5/8" | Yes | M3 | 0000000 | 0000 | 0000000 | 000 |
Stainless Steel—Dull | |||||||||||||||||
| 2 | 6 | 1/2" | 1 3/8" | 1/8" | 1" | Stainless Steel | 9/16" | 1 3/8" | 1/16" | __ | 1" | Yes | M3 | 0000000 | 00000 | 0000000 | 000 |
| 3 | 10 | 1/2" | 3 1/8" | 11/16" | 2 3/4" | Steel | 5/8" | 1" | __ | __ | __ | Yes | M3 | 0000000 | 0000 | 000000 | 00 |
304 Stainless Steel—Dull | |||||||||||||||||
| 2 | 7 | 7/16" | 1 9/16" | 1/4" | 1 3/16" | Stainless Steel | 5/8" | 1 15/16" | __ | __ | 1 9/16" | No | M4.2 | 0000000 | 0000 | 0000000 | 0000 |
430 Stainless Steel—Dull | |||||||||||||||||
| 2 | 11 | 11/16" | 1 5/8" | 1/8" | 1 1/8" | Nickel-Plated Steel | 5/8" | 1 3/16" | 1/16" | __ | 5/8" | Yes | M3 | 0000000 | 00000 | 0000000 | 000 |
Zinc—Dull | |||||||||||||||||
| 10 | 6.6 | 13/16" | 1 9/16" | 7/8" | 1 3/16" | Steel | 3/4" | 7/8" | __ | __ | 1/2" | No | No. 4 | 00000000 | 0000 | 0000000 | 0000 |
| 10 | 15.4 | 13/16" | 2" | 7/8" | 1 9/16" | Steel | 3/4" | 1 1/8" | __ | __ | 11/16" | No | No. 4 | 00000000 | 00000 | 0000000 | 0000 |
| 10 | 24 | 13/16" | 2 7/16" | 7/8" | 2" | Steel | 3/4" | 1 3/4" | __ | __ | 1 1/8" | No | No. 4 | 00000000 | 00000 | 0000000 | 0000 |
| 10 | 31 | 13/16" | 3 3/16" | 7/8" | 2 3/4" | Steel | 3/4" | 2 3/8" | __ | __ | 1 5/8" | No | No. 4 | 00000000 | 00000 | 0000000 | 0000 |
White Plastic with Adjustable Magnet | |||||||||||||||||
| 11 | 6 | 1/2" | 1 13/16" | 15/16" | 1 7/16" | Nickel-Plated Steel | 7/16" | 7/8" | 1/16" | __ | __ | Yes | M2.7, M3.1 | 00000000 | 0000 | 000000 | 00 |
Black Plastic with Adjustable Magnet | |||||||||||||||||
| 11 | 6 | 1/2" | 1 13/16" | 15/16" | 1 7/16" | Nickel-Plated Steel | 7/16" | 7/8" | 1/16" | __ | __ | Yes | M2.7, M3.1 | 00000000 | 0000 | 000000 | 00 |
Chrome-Plated Zinc with Latch Cover—Polished | |||||||||||||||||
| 12 | 3 | 1/2" | 1 1/4" | 1 1/8" | 13/16" | Chrome-Plated Steel | 13/16" | 1 5/16" | 1/2" | __ | __ | Yes | M4 | 00000000 | 00000 | 000000 | 00 |
Strike Plate | Mounting | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Style | Max. Pull Strength, lbs. | Dp. | Dia. | Material | Dia. | Fasteners Included | Screw Size | Each | |
Aluminum—Dull | |||||||||
| 14 | 4 | 7/8" | 5/8" | Steel | 3/4" | Yes | No. 5 | 00000000 | 00000 |
White Plastic | |||||||||
| 14 | 5 | 9/16" | 7/16" | Chrome-Plated Steel | 1/2" | No | M3.5 | 00000000 | 0000 |
Brown Plastic | |||||||||
| 14 | 13 | 11/16" | 1/2" | Steel | 9/16" | No | No. 4 | 00000000 | 0000 |
Black Plastic | |||||||||
| 14 | 5 | 9/16" | 7/16" | Chrome-Plated Steel | 1/2" | No | M3.5 | 00000000 | 0000 |
| 14 | 6 | 9/16" | 5/16" | Steel | 9/16" | No | No. 4 | 00000000 | 0000 |
Magnetic Latches | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Strike Plate | Mounting | Replacement Strike Plates | |||||||||||||||
| Style | Max. Pull Strength, lbs. | Ht. | Wd. | Dp. | For Panel Thickness | Material | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Fasteners Included | Screw Size | For Cutout Dia. | Each | Each | ||
Black Plastic | |||||||||||||||||
| 15 | 0.9 | 1/4" | 1/2" | 5/16" | 0.078" | Black Copper-Plated Steel | 9/16" | 1 3/8" | 1/16" | 1" | Yes | M4 | __ | 0000000 | 00000 | 0000000 | 00000 |
| 16 | 1 | 5/16" | 15/16" | 9/16" | 0.035" | Zinc-Plated Steel | 5/16" | 1" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 1 | 5/16" | 15/16" | 9/16" | 0.095" | Zinc-Plated Steel | 5/16" | 1" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 10 | 3/8" | 1 9/16" | 1" | 0.04" | Zinc-Plated Steel | 3/4" | 1 1/4" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 10 | 3/8" | 1 9/16" | 1" | 0.1" | Zinc-Plated Steel | 3/4" | 1 1/4" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 10 | 3/8" | 1 9/16" | 1" | 0.16" | Zinc-Plated Steel | 3/4" | 1 1/4" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 14 | 7/16" | 2 5/16" | 13/16" | 0.01" | Zinc-Plated Steel | 3/4" | 2" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 14 | 7/16" | 2 5/16" | 13/16" | 0.07" | Zinc-Plated Steel | 3/4" | 2" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 14 | 7/16" | 2 5/16" | 13/16" | 0.13" | Zinc-Plated Steel | 3/4" | 2" | 1/16" | __ | Yes | __ | __ | 0000000 | 0000 | 0000000 | 0000 |
| 16 | 23 | 7/8" | 2 5/16" | 13/16" | 0.01" | Zinc-Plated Steel | 3/4" | 2" | 1/16" | __ | Yes | __ | __ | 0000000 | 00000 | 0000000 | 0000 |
| 16 | 23 | 7/8" | 2 5/16" | 13/16" | 0.07" | Zinc-Plated Steel | 3/4" | 2" | 1/16" | __ | Yes | __ | __ | 0000000 | 00000 | 0000000 | 0000 |
| 16 | 23 | 7/8" | 2 5/16" | 13/16" | 0.13" | Zinc-Plated Steel | 3/4" | 2" | 1/16" | __ | Yes | __ | __ | 0000000 | 00000 | 0000000 | 0000 |
| 17 | 4 | __ | __ | 7/8" | 0.03" | Zinc-Plated Steel | 5/16" | 1" | 1/16" | __ | Yes | __ | 9/16" | 0000000 | 0000 | 0000000 | 0000 |
| 17 | 4 | __ | __ | 7/8" | 0.09" | Zinc-Plated Steel | 5/16" | 1" | 1/16" | __ | Yes | __ | 9/16" | 0000000 | 0000 | 0000000 | 0000 |
| 17 | 4 | __ | __ | 7/8" | 0.15" | Zinc-Plated Steel | 5/16" | 1" | 1/16" | __ | Yes | __ | 9/16" | 0000000 | 0000 | 0000000 | 0000 |
| 17 | 11 | __ | __ | 1 3/8" | 0.02" | Zinc-Plated Steel | 3/4" | 1 1/4" | 1/16" | __ | Yes | __ | 7/8" | 0000000 | 00000 | 0000000 | 0000 |
| 17 | 11 | __ | __ | 1 3/8" | 0.08" | Zinc-Plated Steel | 3/4" | 1 1/4" | 1/16" | __ | Yes | __ | 7/8" | 0000000 | 0000 | 0000000 | 0000 |
| 17 | 11 | __ | __ | 1 3/8" | 0.14" | Zinc-Plated Steel | 3/4" | 1 1/4" | 1/16" | __ | Yes | __ | 7/8" | 0000000 | 00000 | 0000000 | 0000 |
Strike Plate | Mounting | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Max. Pull Strength, lbs. | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Material | Ht. | Wd. | Dp. | Fasteners Included | Screw Size | Each | |
Black Plastic | |||||||||||||
| 18 | 12 | 1/2" | 1 13/16" | 1/2" | 1 7/16" | Chrome-Plated Steel | 1/2" | 1" | 1/16" | No | M3 | 00000000 | 00000 |
Strike Plate | Mounting Stud | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Max. Pull Strength, lbs. | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Material | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Lg. | Thread Size | Thread Pitch, mm | Mounting Fasteners Included | Each | |
430 Stainless Steel—Polished | ||||||||||||||||
| 19 | 4 | 5/8" | 1 3/8" | 1/8" | 1" | Stainless Steel | 5/8" | 1 3/8" | 1/16" | 1" | 9/16" | M5 | 1 | Yes | 00000000 | 000000 |
| 19 | 8 | 5/8" | 1 3/8" | 1/8" | 1" | Stainless Steel | 5/8" | 1 3/8" | 1/16" | 1" | 9/16" | M5 | 1 | Yes | 00000000 | 00000 |
Clean Room Magnetic Latches
To keep your environments free of contaminants, the magnet is encapsulated so it won't release particles when it meets the strike plate. Magnetic force holds doors closed.
On latches with a pivoting strike plate, the strike plate moves for better contact with the magnetic latch.
Note: Maximum pull-strength rating given is based on installation with the furnished strike plate; pull strength may be different based on the application.
For technical drawings and 3-D models, click on a part number.
Strike Plate | Mounting | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Pull Strength, lbs. | Material | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Mounting Hole Diameter | Material | Ht. | Wd. | Mounting Hole Ctr.-to-Ctr. | Fasteners Included | Screw Size | Features | Each | ||
| 1 | 7 | White Plastic | 11/16" | 1 13/16" | 1/4" | 1 3/16" | 4.4mm, 9.6mm | Stainless Steel | 5/8" | 1 15/16" | 1 9/16" | No | No. 6, No. 8 | __ | 0000000 | 000000 |
| 2 | 7 | White Plastic | 3/4" | 1 3/4" | 1 1/16" | 1 3/16" | 4.4mm, 8.4mm | Stainless Steel | 11/16" | 1 3/4" | 1" | Yes | No. 6 | Pivoting Strike Plate | 0000000 | 00000 |
| 3 | 7 | Black Plastic | 1/2" | 2" | 13/16" | 1 9/16" | 4.4mm | Stainless Steel | 5/8" | 1 15/16" | 1 9/16" | No | M4, No. 6 | __ | 0000000 | 00000 |
| 3 | 7 | White Plastic | 9/16" | 2" | 7/8" | 1 9/16" | 4.4mm, 9.6mm | Stainless Steel | 5/8" | 1 15/16" | 1 9/16" | No | M4, No. 6 | __ | 0000000 | 00000 |
| 4 | 6 | Black Plastic | 5/16" | 1 7/8" | 11/16" | __ | __ | Stainless Steel | 3/8" | 2 1/8" | __ | __ | __ | Pivoting Strike Plate | 0000000 | 00000 |
| 4 | 6 | White Plastic | 5/16" | 1 7/8" | 11/16" | __ | __ | Stainless Steel | 3/8" | 2 1/8" | __ | __ | __ | Pivoting Strike Plate | 0000000 | 00000 |
High-Temperature Magnetic Latches
These latches withstand temperatures up to 480° or 570° F. They have a magnetic force that holds doors closed.
Note: Maximum pull-strength rating given is based on installation with the furnished strike plate; pull strength may be different based on the application.
For technical drawings and 3-D models, click on a part number.
Strike Plate | Temperature Range, F° | Mounting | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Pull Strength, lbs. | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Mounting Hole Diameter | Ht. | Wd. | Mounting Hole Ctr.-to-Ctr. | Min. | Max. | Fasteners Included | Screw Size | Each | |
Aluminum | ||||||||||||||
| 11 | 1/2" | 1 3/4" | 1/2" | 1 7/16" | 3.5 mm | 1/2" | 1 9/16" | 1 3/16" | Not Rated | 570° | No | No. 4 | 0000000 | 00000 |
304 Stainless Steel | ||||||||||||||
| 4 | 7/16" | 1 9/16" | 5/16" | 1 3/16" | 4.2 mm | 5/8" | 1 15/16" | 1 9/16" | -145° | 480° | No | No. 6, No. 8 | 0000000 | 00000 |
| 11 | 7/16" | 1 9/16" | 5/16" | 1 3/16" | 4.2 mm | 5/8" | 1 15/16" | 1 9/16" | -145° | 480° | No | No. 6, No. 8 | 0000000 | 00000 |
| 15 | 11/16" | 2" | 9/16" | 1 9/16" | 3.5 mm | 5/8" | 1 15/16" | 1 9/16" | -145° | 480° | No | No. 6 | 0000000 | 00000 |
| 31 | 11/16" | 2" | 9/16" | 1 9/16" | 3.5 mm | 5/8" | 1 15/16" | 1 9/16" | -145° | 480° | No | No. 6 | 0000000 | 00000 |
Food Industry Magnetic Latches
Made to NSF/ANSI standards, this latch has a completely sealed magnet to eliminate crevices that can trap food particles. Magnetic force holds doors closed.
Note: Maximum pull-strength rating given is based on installation with the furnished strike plate; pull strength may be different based on the application.
For technical drawings and 3-D models, click on a part number.
Strike Plate | Mounting | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Pull Strength, lbs. | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Mounting Hole Diameter, mm | Material | Ht. | Wd. | Mounting Hole Ctr.-to-Ctr. | Fasteners Included | Screw Size | Specifications Met | Each | ||
Light Gray Plastic | |||||||||||||||
| 1 | 3 | 9/16" | 2 1/2" | 3/4" | 2 1/16" | 4.2 | Stainless Steel | 5/8" | 1 15/16" | 1 9/16" | No | M4, No. 6 | NSF/ANSI 2 | 0000000 | 000000 |
| 1 | 7 | 9/16" | 2 1/2" | 3/4" | 2 1/16" | 4.2 | Stainless Steel | 5/8" | 1 15/16" | 1 9/16" | No | M4, No. 6 | NSF/ANSI 2 | 0000000 | 00000 |
| 1 | 11 | 9/16" | 2 1/2" | 3/4" | 2 1/16" | 4.2 | Stainless Steel | 5/8" | 1 15/16" | 1 9/16" | No | M3.5, No. 6 | NSF/ANSI 2 | 0000000 | 00000 |
Light Gray Rubber | |||||||||||||||
| 2 | 4 | 11/16" | 1 3/4" | 1/4" | 1 1/16" | 4.2 | Plastic | 11/16" | 1 3/4" | 1 3/16" | No | M4 | NSF/ANSI 2 | 0000000 | 00000 |
| 2 | 8 | 11/16" | 2" | 1/4" | 1 1/4" | 4.2 | Plastic | 11/16" | 1 3/4" | 1 3/16" | No | M4 | NSF/ANSI 2 | 0000000 | 00000 |
Dark Gray Rubber | |||||||||||||||
| 2 | 4 | 11/16" | 1 3/4" | 1/4" | 1 1/16" | 4.2 | Plastic | 11/16" | 1 3/4" | 1 3/16" | No | M4 | NSF/ANSI 2 | 0000000 | 00000 |
| 2 | 8 | 11/16" | 2" | 1/4" | 1 1/4" | 4.2 | Plastic | 11/16" | 1 3/4" | 1 3/16" | No | M4 | NSF/ANSI 2 | 0000000 | 00000 |
Blue Rubber | |||||||||||||||
| 2 | 4 | 11/16" | 1 3/4" | 1/4" | 1 1/16" | 4.2 | Plastic | 11/16" | 1 3/4" | 1 3/16" | No | M4 | NSF/ANSI 2 | 0000000 | 00000 |
| 2 | 8 | 11/16" | 2" | 1/4" | 1 1/4" | 4.2 | Plastic | 11/16" | 1 3/4" | 1 3/16" | No | M4 | NSF/ANSI 2 | 0000000 | 00000 |
Push-to-Open Magnetic Latches
Open and close these magnetic latches with a push—there's no need for a handle. Often used on audio and visual cabinets, magnetic force keeps your doors closed. Note: Maximum pull-strength rating given is based on installation with the furnished strike plate; pull strength may be different based on the application.
Style 5 and 6 latches have two-piece strike plates for double doors that meet in the center.
Style 7 latches have long magnets, so they’re best for overlay doors where the door does not sit flush with the frame.
Style 8 latches have two-piece strike plates and a long magnet. You can use them on double doors that meet in the center as well as on overlay doors where the door does not sit flush with the frame.
Style 9 latches have the highest maximum pull strength to secure your large doors.
For technical drawings and 3-D models, click on a part number.
Wraparound Strike Plate | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Max. Pull Strength | Material | Ht. | Wd. | Dp. | For Cutout Dia. | For Panel Thick. | Ht. | Wd. | Flat Strike Plate Dia. | Mounting Fasteners Included | Each | |
Painted Steel Strike Plate | |||||||||||||
| 1 | Not Rated | Black Plastic | 9/16" | 7/16" | 1 1/16" | 13/32" | 3/16", 1/4" | 1" | 1 5/8" | 11/16" | No | 00000000 | 00000 |
Brass-Plated Steel Strike Plate | |||||||||||||
| 1 | Not Rated | Black Plastic | 9/16" | 7/16" | 1 1/16" | 13/32" | 3/16", 1/4" | 1" | 1 5/8" | 11/16" | No | 00000000 | 0000 |
Chrome-Plated Steel Strike Plate | |||||||||||||
| 1 | Not Rated | Black Plastic | 9/16" | 7/16" | 1 1/16" | 13/32" | 3/16", 1/4" | 1" | 1 5/8" | 11/16" | No | 00000000 | 0000 |
Wraparound Strike Plate | Mounting | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Max. Pull Strength, lbs. | Material | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Mounting Hole Diameter | For Cutout Dia. | For Panel Thick. | Ht. | Wd. | Flat Strike Plate Dia. | Fasteners Included | Screw Size | Each | |
Painted Steel Strike Plate | ||||||||||||||||
| 2 | 1 | Black Plastic | 5/8" | 1 3/8" | 1 7/8" | 15/16" | 1/8" | 19/32" | 3/16", 1/4" | 1" | 1 5/8" | 11/16" | No | No. 5 | 00000000 | 00000 |
Brass-Plated Steel Strike Plate | ||||||||||||||||
| 2 | 1 | Black Plastic | 5/8" | 1 3/8" | 1 7/8" | 15/16" | 1/8" | 19/32" | 3/16", 1/4" | 1" | 1 5/8" | 11/16" | No | No. 5 | 00000000 | 0000 |
Chrome-Plated Steel Strike Plate | ||||||||||||||||
| 2 | 1 | Black Plastic | 5/8" | 1 3/8" | 1 7/8" | 15/16" | 1/8" | 19/32" | 3/16", 1/4" | 1" | 1 5/8" | 11/16" | No | No. 5 | 00000000 | 0000 |
Wraparound Strike Plate | Flat Strike Plate | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Max. Pull Strength, lbs. | Material | Ht. | Wd. | Dp. | Mounting Hole Ctr.-to-Ctr. | Mounting Hole Diameter | For Panel Thick. | Ht. | Wd. | Ht. | Wd. | Mounting Fasteners Included | Each | |
Painted Steel Strike Plate | |||||||||||||||
| 3 | 3 | Black Plastic | 5/8" | 1 1/8" | 1 13/16" | 11/16", 7/8" | 1/8", 11/16" | 3/16", 1/4" | 1" | 1 5/8" | 1/2" | 1 3/8" | Yes | 0000000 | 00000 |
| 4 | 3 | Black Plastic | 3/4" | 1 5/8" | 1 3/4" | 1 1/4" | 9/64", 1/4" | 3/16", 1/4" | 1" | 1 5/8" | 7/8" | 1 3/16" | Yes | 0000000 | 0000 |
| 5 | 4 | Black Plastic | 11/16" | 2 5/16" | 1 13/16" | 3/4", 2" | 1/8", 11/16" | 3/16", 1/4" | 1" | 1 5/8" | 1/2" | 1 3/8" | Yes | 0000000 | 0000 |
| 6 | 4 | Black Plastic | 3/4" | 2 15/16" | 1 3/4" | 1 1/4", 2 1/2" | 5/32", 17/64" | 3/16", 1/4" | 1" | 1 5/8" | 7/8" | 1 3/16" | Yes | 0000000 | 0000 |
Brass-Plated Steel Strike Plate | |||||||||||||||
| 3 | 3 | Black Plastic | 5/8" | 1 1/8" | 1 13/16" | 11/16", 7/8" | 1/8", 11/16" | 3/16", 1/4" | 1" | 1 5/8" | 1/2" | 1 3/8" | Yes | 0000000 | 0000 |
| 4 | 3 | Black Plastic | 3/4" | 1 5/8" | 1 3/4" | 1 1/4" | 9/64", 1/4" | 3/16", 1/4" | 1" | 1 5/8" | 7/8" | 1 3/16" | Yes | 0000000 | 0000 |
| 5 | 4 | Black Plastic | 11/16" | 2 5/16" | 1 13/16" | 3/4", 2" | 1/8", 11/16" | 3/16", 1/4" | 1" | 1 5/8" | 1/2" | 1 3/8" | Yes | 0000000 | 0000 |
| 6 | 4 | Black Plastic | 3/4" | 2 15/16" | 1 3/4" | 1 1/4", 2 1/2" | 5/32", 17/64" | 3/16", 1/4" | 1" | 1 5/8" | 7/8" | 1 3/16" | Yes | 0000000 | 0000 |
Zinc-Plated Steel Strike Plate | |||||||||||||||
| 3 | 2 | Brown Plastic | 5/8" | 1 1/8" | 1 13/16" | 11/16", 7/8" | 9/64", 3/16" | __ | __ | __ | 1/2" | 1 3/8" | Yes | 00000000 | 0000 |
| 3 | 2 | White Plastic | 5/8" | 1 1/8" | 1 13/16" | 11/16", 7/8" | 9/64", 3/16" | __ | __ | __ | 1/2" | 1 3/8" | Yes | 00000000 | 0000 |
| 5 | 4 | Brown Plastic | 11/16" | 2 5/16" | 1 13/16" | 3/4", 2" | 9/64", 3/16" | __ | __ | __ | 1/2" | 1 3/8" | Yes | 00000000 | 0000 |
| 5 | 4 | White Plastic | 11/16" | 2 5/16" | 1 13/16" | 3/4", 2" | 9/64", 3/16" | __ | __ | __ | 1/2" | 1 3/8" | Yes | 00000000 | 0000 |
| 7 | 3 | Black Plastic | 9/16" | 1 7/16" | 1 11/16" | 1/2", 1 1/8" | 1/8" | __ | __ | __ | 1/2" | 7/8" | Yes | 00000000 | 0000 |
| 7 | 3 | Brown Plastic | 9/16" | 1 7/16" | 1 11/16" | 1/2", 1 1/8" | 1/8" | __ | __ | __ | 1/2" | 7/8" | Yes | 00000000 | 0000 |
| 7 | 3 | White Plastic | 9/16" | 1 7/16" | 1 11/16" | 1/2", 1 1/8" | 1/8" | __ | __ | __ | 1/2" | 7/8" | Yes | 00000000 | 0000 |
| 7 | 5 | Black Plastic | 11/16" | 1 13/16" | 3" | 1 3/16", 1 5/16" | 3/16" | __ | __ | __ | 1/2" | 1 13/16" | Yes | 00000000 | 0000 |
| 7 | 5 | Brown Plastic | 11/16" | 1 13/16" | 3" | 1 3/16", 1 5/16" | 3/16" | __ | __ | __ | 1/2" | 1 13/16" | Yes | 00000000 | 0000 |
| 7 | 5 | White Plastic | 11/16" | 1 13/16" | 3" | 1 3/16", 1 5/16" | 3/16" | __ | __ | __ | 1/2" | 1 13/16" | Yes | 00000000 | 0000 |
Chrome-Plated Steel Strike Plate | |||||||||||||||
| 3 | 3 | Black Plastic | 5/8" | 1 1/8" | 1 13/16" | 11/16", 7/8" | 1/8", 11/16" | 3/16", 1/4" | 1" | 1 5/8" | 1/2" | 1 3/8" | Yes | 0000000 | 0000 |
| 4 | 3 | Black Plastic | 3/4" | 1 5/8" | 1 3/4" | 1 1/4" | 9/64", 1/4" | 3/16", 1/4" | 1" | 1 5/8" | 7/8" | 1 3/16" | Yes | 0000000 | 0000 |
| 5 | 4 | Black Plastic | 11/16" | 2 5/16" | 1 13/16" | 3/4", 2" | 1/8", 11/16" | 3/16", 1/4" | 1" | 1 5/8" | 1/2" | 1 3/8" | Yes | 0000000 | 0000 |
| 6 | 4 | Black Plastic | 3/4" | 2 15/16" | 1 3/4" | 1 1/4", 2 1/2" | 5/32", 17/64" | 3/16", 1/4" | 1" | 1 5/8" | 7/8" | 1 3/16" | Yes | 0000000 | 0000 |
Nickel-Plated Steel Strike Plate | |||||||||||||||
| 7 | 2 | Brown Plastic | 5/8" | 1 11/16" | 1 3/16" | 1 1/4" | 1/8" | __ | __ | __ | 1/2" | 7/8" | Yes | 00000000 | 0000 |
| 7 | 2 | White Plastic | 5/8" | 1 11/16" | 1 3/16" | 1 1/4" | 1/8" | __ | __ | __ | 1/2" | 7/8" | Yes | 00000000 | 0000 |
| 8 | 2 | Brown Plastic | 5/8" | 2 15/16" | 1 3/16" | 2 1/2" | 1/8" | __ | __ | __ | 1/2" | 7/8" | Yes | 00000000 | 0000 |
| 8 | 2 | White Plastic | 5/8" | 2 15/16" | 1 3/16" | 2 1/2" | 1/8" | __ | __ | __ | 1/2" | 7/8" | Yes | 00000000 | 0000 |
Stainless Steel Strike Plate | |||||||||||||||
| 9 | 6 | Black Zinc | 7/8" | 1 9/16" | 2 7/16" | 9/16", 1" | 3/16" | __ | __ | __ | 9/16" | 1 15/16" | Yes | 00000000 | 00000 |
| 9 | 6 | White Zinc | 7/8" | 1 9/16" | 2 7/16" | 9/16", 1" | 3/16" | __ | __ | __ | 9/16" | 1 15/16" | Yes | 00000000 | 00000 |
Electromagnetic Gate Locks
For use alone or as part of an access-control system, this lock uses electromagnets to hold gates closed. Control the lock with a push-button switch or keypad control (sold separately). It locks automatically as soon as the gate is closed. When power is interrupted, the lock instantly releases.
Optional backup battery pack supplies power during power interruptions.
Filler plate is required if the mounting surface is less than 2" wide.
For technical drawings and 3-D models, click on a part number.
Locks | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Electromagnet | Strike Plate | Optional Backup Battery Packs | Filler Plates | |||||||||||||
| Locking Action | Holding Strength, lbs. | Voltage | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Mounting Fasteners Included | Electrical Connection Type | Each | Each | Each | |||
Schlage M490G | ||||||||||||||||
| Instant | 1,500 | 12V DC-24V DC | 11" | 3" | 1 3/4" | 10 1/2" | 2 5/8" | 1" | Yes | Hardwire | 00000000 | 0000000 | 0000000 | 0000000 | 0000000 | 000000 |
