Drawer Slides
These slides fully extend for convenient access to the back of drawers. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
Stainless steel slides resist corrosion, so they’re great for areas that get wet or require regular cleaning. Aluminum slides are durable, and they weigh less than stainless steel slides. However, they’re still not as durable as stainless steel slides, and they aren’t as corrosion resistant.
Slides with drawer release let you remove your drawer from its cabinet by separating the inner part of the slide from its outer track. Slides without drawer release are more secure than slides that let you remove your drawer because the inner and outer track don’t disconnect. That makes these slides better for drawers with heavy items.

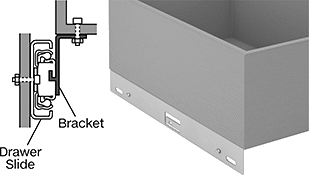

Side mounting brackets let you mount your drawer either above or inline with the drawer slides, depending on how you install them.

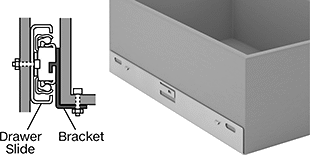

Rear mounting brackets let you mount your slide to the front and rear of your cabinet when there aren’t any vertical dividers or sides to mount to.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Capacity per Pair, lbs. | Travel Lg. | For Max. Drawer Wd. | Wd. | Ht. | Roller Type | Fasteners Included | Screw Size  | Pair | |
Steel | ||||||||||
With Lever Drawer Release | ||||||||||
| 5 13/16" | 60 | 5 7/16" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 000000000 | 000000 |
| 7 13/16" | 65 | 8" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 9 13/16" | 70 | 10" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 10 9/16" | 125 | 12 13/16" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 10 9/16" | 125 | 14 3/4" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 11 13/16" | 75 | 12" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 13 3/4" | 80 | 14" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 15" | 125 | 16 3/4" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 15" | 125 | 18 11/16" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 15" | 125 | 20 11/16" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 15 3/4" | 85 | 16" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 17 3/4" | 90 | 18" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 19 3/8" | 125 | 22 5/8" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 19 3/8" | 125 | 24 5/8" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 19 11/16" | 95 | 20" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 21 5/8" | 100 | 22" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 23 5/8" | 95 | 24" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 23 13/16" | 125 | 26 9/16" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 000000000 | 00000 |
| 23 13/16" | 125 | 28 9/16" | 30" | 1/2" | 2 9/16" | Ball Bearing | No | No. 8 | 000000000 | 00000 |
| 25 9/16" | 90 | 26" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
| 27 9/16" | 85 | 28" | 24" | 1/2" | 1 13/16" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
With Lift-Out Drawer Release | ||||||||||
| 8" | 40 | 8" | 16" | 1/2" | 1 5/8" | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 10" | 45 | 10" | 16" | 1/2" | 1 5/8" | Ball Bearing | Yes | No. 8 | 00000000 | 00000 |
Without Drawer Release | ||||||||||
| 12" | 230 | 12" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 00000 |
| 14" | 245 | 14" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 00000 |
| 16" | 260 | 16" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 00000 |
| 18" | 275 | 18" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 00000 |
| 20" | 260 | 20" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 000000 |
| 22" | 245 | 22" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 000000 |
| 24" | 230 | 24" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 000000 |
| 26" | 215 | 26" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 000000 |
| 28" | 200 | 28" | 42" | 3/4" | 2 1/16" | Ball Bearing | Yes | No. 10 | 0000000 | 000000 |
| 30" | 350 | 30" | 48" | 3/4" | 3" | Ball Bearing | Yes | 1/4", No. 10 | 0000000 | 000000 |
| 32" | 350 | 32" | 48" | 3/4" | 3" | Ball Bearing | Yes | 1/4", No. 10 | 0000000 | 000000 |
| 34" | 350 | 34" | 48" | 3/4" | 3" | Ball Bearing | Yes | 1/4", No. 10 | 0000000 | 000000 |
| 36" | 350 | 36" | 48" | 3/4" | 3" | Ball Bearing | Yes | 1/4", No. 10 | 0000000 | 000000 |
| 40" | 350 | 40" | 48" | 3/4" | 3" | Ball Bearing | No | 1/4", No. 10 | 0000000 | 000000 |
| 42" | 350 | 42" | 48" | 3/4" | 3" | Ball Bearing | No | 1/4", No. 10 | 0000000 | 000000 |
| 44" | 350 | 44" | 48" | 3/4" | 3" | Ball Bearing | No | 1/4", No. 10 | 0000000 | 000000 |
| 48" | 350 | 48" | 48" | 3/4" | 3" | Ball Bearing | No | 1/4", No. 10 | 0000000 | 000000 |
| 60" | 200 | 60" | 48" | 3/4" | 3" | Ball Bearing | No | 1/4", No. 10 | 0000000 | 000000 |
304 Stainless Steel | ||||||||||
With Lever Drawer Release | ||||||||||
| 7 7/8" | 115 | 7 7/8" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 000000000 | 00000 |
| 9 13/16" | 115 | 9 13/16" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 11 13/16" | 110 | 11 13/16" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 13 3/4" | 105 | 13 3/4" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 15 3/4" | 100 | 15 3/4" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 17 11/16" | 100 | 17 11/16" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 19 11/16" | 95 | 19 11/16" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 21 5/8" | 90 | 21 5/8" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 23 5/8" | 90 | 23 5/8" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 25 9/16" | 90 | 25 9/16" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 27 9/16" | 85 | 27 9/16" | 24" | 1/2" | 1 3/4" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
With Button Drawer Release | ||||||||||
| 12" | 140 | 13 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 14" | 130 | 15 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 16" | 130 | 17 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 18" | 120 | 19 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 20" | 110 | 21 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 22" | 110 | 23 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 24" | 105 | 25 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 26" | 90 | 27 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 28" | 90 | 29 3/4" | 24" | 3/4" | 2 3/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
Without Drawer Release | ||||||||||
| 12" | 130 | 12 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 12" | 595 | 12 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 14" | 130 | 14 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 14" | 590 | 14 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 16" | 125 | 16 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 16" | 570 | 16 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 18" | 120 | 18 7/8" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 18" | 550 | 18 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 20" | 115 | 20 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 20" | 530 | 20 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 22" | 110 | 22 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 22" | 500 | 22 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 24" | 105 | 24 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 24" | 475 | 24 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 26" | 100 | 26 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 26" | 440 | 26 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 28" | 85 | 28 13/16" | 24" | 3/4" | 1 7/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 28" | 400 | 28 9/16" | 24" | 15/16" | 2 13/16" | Ball Bearing | No | No. 8 | 00000000 | 000000 |
Aluminum | ||||||||||
With Lever Drawer Release | ||||||||||
| 6" | 105 | 6" | 36" | 3/8" | 1 9/16" | Ball Bearing | No | No. 8 | 0000000 | 000000 |
| 8" | 105 | 8" | 36" | 3/8" | 1 9/16" | Ball Bearing | No | No. 8 | 0000000 | 000000 |
| 10" | 110 | 10" | 36" | 3/8" | 1 9/16" | Ball Bearing | No | No. 8 | 0000000 | 000000 |
| 12" | 120 | 12" | 36" | 3/8" | 1 9/16" | Ball Bearing | No | No. 8 | 0000000 | 000000 |
| 14" | 115 | 14" | 36" | 3/8" | 1 9/16" | Ball Bearing | No | No. 8 | 0000000 | 000000 |
| 16" | 115 | 16" | 36" | 3/8" | 1 9/16" | Ball Bearing | No | No. 8 | 0000000 | 000000 |
| 20" | 100 | 20" | 36" | 3/8" | 1 9/16" | Ball Bearing | No | No. 8 | 0000000 | 000000 |
Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Travel Lg. | Lg. | Wd. | Ht. | Hardware Included | No. of Holes | Slot Lg. | Slot Wd. | Slot Ctr.-to-Ctr. | Pair | |
Steel | ||||||||||
Clip On | ||||||||||
| 14" | 13 5/8" | 0.58" | 1.4" | No | 2 | 0.88" | 0.25" | 11.53" | 000000000 | 00000 |
| 16" | 15 5/8" | 0.58" | 1.4" | No | 2 | 0.88" | 0.25" | 13.5" | 00000000 | 0000 |
| 18" | 17 9/16" | 0.58" | 1.4" | No | 2 | 0.88" | 0.25" | 15.47" | 00000000 | 0000 |
| 20" | 19 9/16" | 0.58" | 1.4" | No | 2 | 0.88" | 0.25" | 17.44" | 00000000 | 0000 |
| 22", 24", 26", 28" | 21 1/2" | 0.58" | 1.4" | No | 2 | 0.88" | 0.25" | 19.41" | 00000000 | 0000 |
Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Travel Lg. | Lg. | Wd. | Ht. | Hardware Included | No. of Holes | Slot Lg. | Slot Wd. | Slot Ctr.-to-Ctr. | Pair | |
Zinc-Plated Steel | ||||||||||
Screw On | ||||||||||
| 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", 26", 28" | 4" | 1.94" | 1.91" | No | 2 | 0.315" | 0.175" | 1.25" | 000000000 | 00000 |
Miniature Drawer Slides
Half the length of other drawer slides we sell, these slides install in small-parts cabinets. They fully extend for access to the back of drawers. All have ball bearing rollers for smooth, quiet operation. Mount to the sides of drawer openings in cabinets.
Stainless steel slides are commonly used in laboratories and other environments that may get wet and require regular cleaning.
For technical drawings and 3-D models, click on a part number.
Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Travel Lg. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
304 Stainless Steel | |||||||||
| 3 1/8" | 3 13/16" | 3/8" | 5/8" | 22 | Ball Bearing | No | No. 3 | 0000000 | 000000 |
| 3 15/16" | 4 15/16" | 3/8" | 5/8" | 24 | Ball Bearing | No | No. 3 | 0000000 | 00000 |
| 5 7/8" | 6 15/16" | 3/8" | 5/8" | 26 | Ball Bearing | No | No. 3 | 0000000 | 00000 |
Anodized Aluminum | |||||||||
| 3 1/8" | 3" | 7/16" | 5/8" | 4 | Ball Bearing | No | No. 3 | 0000000 | 00000 |
| 3 15/16" | 4 9/16" | 7/16" | 5/8" | 6 1/2 | Ball Bearing | No | No. 3 | 0000000 | 00000 |
| 5 7/8" | 5 15/16" | 7/16" | 5/8" | 8 1/2 | Ball Bearing | No | No. 3 | 0000000 | 00000 |
Stacked Drawer Slides
The stacked design provides stability for deep and wide drawers. These slides fully extend for convenient access to the back of drawers. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets. If you need to remove your drawer from its cabinet, these slides have a lift-out release that separates the slide parts.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Travel Lg. | For Max. Drawer Wd. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
Steel | ||||||||||
With Lift-Out Drawer Release | ||||||||||
| 11 13/16" | 12 1/4" | 27" | 1/2" | 3 13/16" | 140 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 000000 |
| 13 3/4" | 14 3/16" | 27" | 1/2" | 3 13/16" | 145 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
| 15 3/4" | 16 1/8" | 27" | 1/2" | 3 13/16" | 150 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
| 17 3/4" | 18 1/8" | 27" | 1/2" | 3 13/16" | 150 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
| 19 11/16" | 20" | 27" | 1/2" | 3 13/16" | 145 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
| 21 5/8" | 21 15/16" | 27" | 1/2" | 3 13/16" | 140 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
| 23 5/8" | 24 3/8" | 27" | 1/2" | 3 13/16" | 135 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
| 25 9/16" | 26 5/16" | 27" | 1/2" | 3 13/16" | 130 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
| 27 9/16" | 28 1/4" | 27" | 1/2" | 3 13/16" | 130 | Ball Bearing | Yes | M6, No. 8 | 00000000 | 00000 |
Partial-Extension Drawer Slides
Slides only extend 3/4 of the closed length to reduce the chance that a heavy load will tip your cabinet. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
Stainless steel slides won’t rust in wet or frequently cleaned environments.
Slides with a lift-out drawer release can be separated by pulling upwards on a drawer to remove it from your cabinet. Slides with a pull-out drawer release have a brake to stop them from coming apart when a drawer is fully extended. To remove a drawer from your cabinet, pull forcefully to disassemble the slide. Slides without a drawer release prevent drawers from being removed. Because they don’t come apart, these slides provide the most support for drawers containing heavy items.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Travel Lg. | For Max. Drawer Wd. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
Steel | ||||||||||
With Lift-Out Drawer Release | ||||||||||
| 11 7/8" | 8" | 12" | 1/2" | 2 1/2" | 40 | Ball Bearing | Yes | No. 8 | 000000000 | 000000 |
| 13 7/8" | 10" | 12" | 1/2" | 2 1/2" | 50 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 15 7/8" | 12" | 12" | 1/2" | 2 1/2" | 60 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 17 7/8" | 14" | 12" | 1/2" | 2 1/2" | 75 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 19 7/8" | 16" | 12" | 1/2" | 2 1/2" | 75 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 21 7/8" | 18" | 12" | 1/2" | 2 1/2" | 75 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 23 7/8" | 19" | 12" | 1/2" | 2 1/2" | 60 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 25 7/8" | 20" | 12" | 1/2" | 2 1/2" | 50 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
| 27 3/4" | 21" | 12" | 1/2" | 2 1/2" | 40 | Ball Bearing | Yes | No. 8 | 000000000 | 00000 |
304 Stainless Steel | ||||||||||
With Pull-Out Drawer Release | ||||||||||
| 12" | 9" | 24" | 3/8" | 1 3/8" | 105 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 14" | 11" | 24" | 3/8" | 1 3/8" | 100 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 16" | 12" | 24" | 3/8" | 1 3/8" | 90 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 18" | 13" | 24" | 3/8" | 1 3/8" | 90 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 20" | 15" | 24" | 3/8" | 1 3/8" | 80 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 22" | 16" | 24" | 3/8" | 1 3/8" | 70 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 24" | 17 1/16" | 24" | 3/8" | 1 3/8" | 65 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 26" | 19" | 24" | 3/8" | 1 3/8" | 55 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
| 28" | 20" | 24" | 3/8" | 1 3/8" | 55 | Ball Bearing | No | No. 8 | 00000000 | 00000 |
Without Drawer Release | ||||||||||
| 12" | 8 3/4" | 24" | 1/2" | 2 13/16" | 250 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 18" | 13 3/4" | 24" | 1/2" | 2 13/16" | 220 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 20" | 14 1/4" | 24" | 1/2" | 2 13/16" | 215 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 22" | 16 3/4" | 24" | 1/2" | 2 13/16" | 205 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 24" | 17 3/4" | 24" | 1/2" | 2 13/16" | 195 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
| 28" | 19 3/4" | 24" | 1/2" | 2 13/16" | 175 | Ball Bearing | No | No. 8 | 00000000 | 000000 |
Over-Extension Drawer Slides
Access the very back of drawers, even if there’s an overhang from the drawer or countertop above. When fully extended, these slides position your drawer a full inch beyond your cabinet's edge. They have a lever release, which lets you remove the drawer from your cabinet by separating the inner part of the slide from the outer track. Ball bearing rollers ensure smooth, quiet opening and closing.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Travel Lg. | For Max. Drawer Wd. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
Steel | ||||||||||
With Lever Drawer Release | ||||||||||
| 11 13/16" | 13" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 0000000 | 000000 |
| 13 3/4" | 15" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 00000000 | 00000 |
| 15 3/4" | 17" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 00000000 | 00000 |
| 17 3/4" | 19" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 0000000 | 00000 |
| 19 11/16" | 21" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 0000000 | 00000 |
| 21 5/8" | 23" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 0000000 | 00000 |
| 23 5/8" | 25" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 0000000 | 00000 |
| 25 9/16" | 27" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 0000000 | 00000 |
| 27 9/16" | 29" | 36" | 1/2" | 2" | 140 | Ball Bearing | No | No. 7 | 0000000 | 00000 |
Miniature Pass-Through Drawer Slides
The size of a finger, these tiny slides open in both directions. All have ball bearings for smooth operation.
Stainless steel slides resist corrosion, so they're commonly used in medical, laboratory, and other fixtures that are often cleaned.
For technical drawings and 3-D models, click on a part number.
Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Travel Lg. | Wd. | Ht. | Capacity per Pair (Mounting Location) | Roller Type | Fasteners Included | Screw Size | Pair | |
304 Stainless Steel | |||||||||
| 3 1/8" | 1 7/8" | 3/16" | 5/8" | 22 lbs. (Side) | Ball Bearing | No | M2.6 | 0000000 | 000000 |
| 3 15/16" | 2 11/16" | 3/16" | 5/8" | 24 lbs. (Side) | Ball Bearing | No | M2.6 | 0000000 | 00000 |
| 5 7/8" | 3 3/4" | 3/16" | 5/8" | 26 lbs. (Side) | Ball Bearing | No | M2.6 | 0000000 | 00000 |
Anodized Aluminum | |||||||||
| 2 3/4" | 1 1/4" | 3/16" | 5/8" | 6 1/2 lbs. (Side), 2 lbs. (Base) | Ball Bearing | No | M2.6 | 0000000 | 00000 |
| 3 15/16" | 1 9/16" | 3/16" | 5/8" | 11 lbs. (Side), 4 lbs. (Base) | Ball Bearing | No | M2.6 | 0000000 | 00000 |
| 5 7/8" | 3 1/8" | 3/16" | 5/8" | 15 lbs. (Side), 6 1/2 lbs. (Base) | Ball Bearing | No | M2.6 | 0000000 | 00000 |
Pass-Through Drawer Slides
Open drawers from either side of a cart or cabinet—these slides let drawers pass through for two-way access to contents. Slides have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawers.
For technical drawings and 3-D models, click on a part number.
Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Travel Lg. | Wd. | Ht. | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Pair | |
Steel | |||||||||
| 19 11/16" | 19 13/16" | 11/16" | 2 3/16" | 250 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 0000000 |
| 23 5/8" | 23 7/8" | 11/16" | 2 3/16" | 260 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 000000 |
| 27 5/8" | 28" | 11/16" | 2 3/16" | 285 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 000000 |
| 31 1/2" | 32 1/8" | 11/16" | 2 3/16" | 300 | Ball Bearing | No | No. 8, No. 10 | 0000000 | 000000 |
Base-Mount Drawer Slides
When you don't have enough clearance for side-mount or under-the-counter slides, mount these to the base of your drawer. The slides fully extend for convenient access to the back of drawers. All have ball bearing rollers for smooth, quiet operation.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||
|---|---|---|---|---|---|---|---|---|
| Closed Lg. | Travel Lg. | Wd. | Ht. | Capacity per Pair, lbs. | Fasteners Included | Screw Size | Pair | |
Steel | ||||||||
| 14" | 14" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 0000000 |
| 16" | 16" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 18" | 18" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 20" | 20" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 22" | 22" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 24" | 24" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 26" | 26" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 28" | 28" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 30" | 30" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 32" | 32" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 36" | 36" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 40" | 40" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 48" | 48" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
| 60" | 60" | 3" | 3/4" | 180 | No | 1/4" | 0000000 | 000000 |
304 Stainless Steel | ||||||||
| 11 13/16" | 13 3/16" | 2 15/16" | 1 1/16" | 100 | No | M4, No. 7 | 00000000 | 000000 |
| 15 3/4" | 17 1/8" | 2 15/16" | 1 1/16" | 85 | No | M4, No. 7 | 00000000 | 000000 |
| 19 11/16" | 21 1/16" | 2 15/16" | 1 1/16" | 90 | No | M4, No. 7 | 00000000 | 000000 |
| 23 5/8" | 25 1/16" | 2 15/16" | 1 1/16" | 85 | No | M4, No. 7 | 00000000 | 000000 |
| 31 1/2" | 32 7/8" | 2 15/16" | 1 1/16" | 70 | No | M4, No. 7 | 00000000 | 000000 |
| 39 3/8" | 40 3/4" | 2 15/16" | 1 1/16" | 55 | No | M4, No. 7 | 00000000 | 000000 |
Heavy Duty Base- and Under-Mount Drawer Slides
Mounting to the tops and bottoms of drawers, these steel slides support drawers even if they’re tall and hold heavy equipment. They’re often used in kitchens and other washdown areas because they’re powder-coated to resist rusting and their ball bearings are encased to keep out liquid. The encased ball bearings also distribute weight more evenly than standard ball bearings, which means they’re quieter and support more weight. To keep the bearings from wobbling or falling off track due to heavy loads, these slides have rail guides. Slides maintain a constant amount of support as you fully extend them, so accessing deep inside drawers isn’t a problem. All are LGA tested according to DIN 4554 for safety, performance, and quality.
Add slow-closing attachments to keep drawers from slamming.
For technical drawings and 3-D models, click on a part number.
Slides | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bottom Slide | Top Slide | Mounting | Optional Slow-Closing Attachments | |||||||||||||
| Closed Length | Travel Length | Mounting Location | Width | Height | Mounting Location | Width | Height | Capacity per Pair, lbs. | Roller Type | Fasteners Included | Screw Size | Color | Pair | Pair | ||
| 17 3/4" | 17 1/16" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 0000000 | 0000000 | 000000 |
| 19 11/16" | 19 1/16" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 000000 | 0000000 | 00000 |
| 21 5/8" | 21" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 000000 | 0000000 | 00000 |
| 23 5/8" | 23" | Base | 5 1/16" | 3 9/16" | Under Mount | 1 9/16" | 2 5/16" | 440 | Ball Bearing | No | 1/4", No. 6 | White | 0000000 | 000000 | 0000000 | 00000 |
