    Oil-Resistant Buna-N O-Ring

    1/16 Fractional Width, Dash Number 012

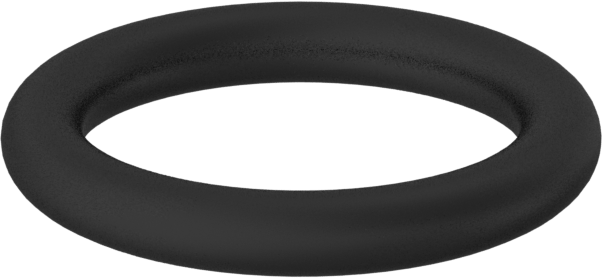

    Image of Product. Front orientation. Oil-Resistant Buna-N O-Ring, 1/16 Fractional Width, Dash Number 012.

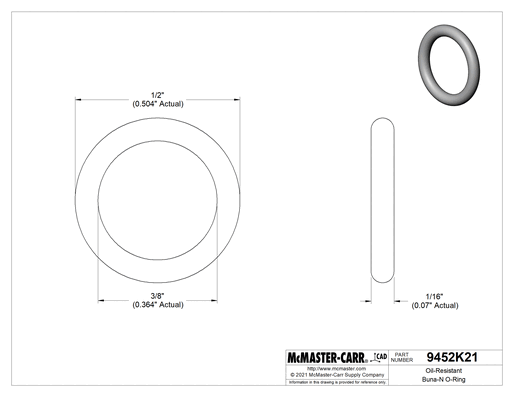

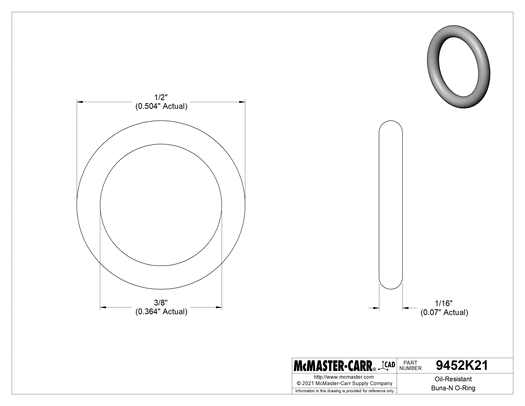

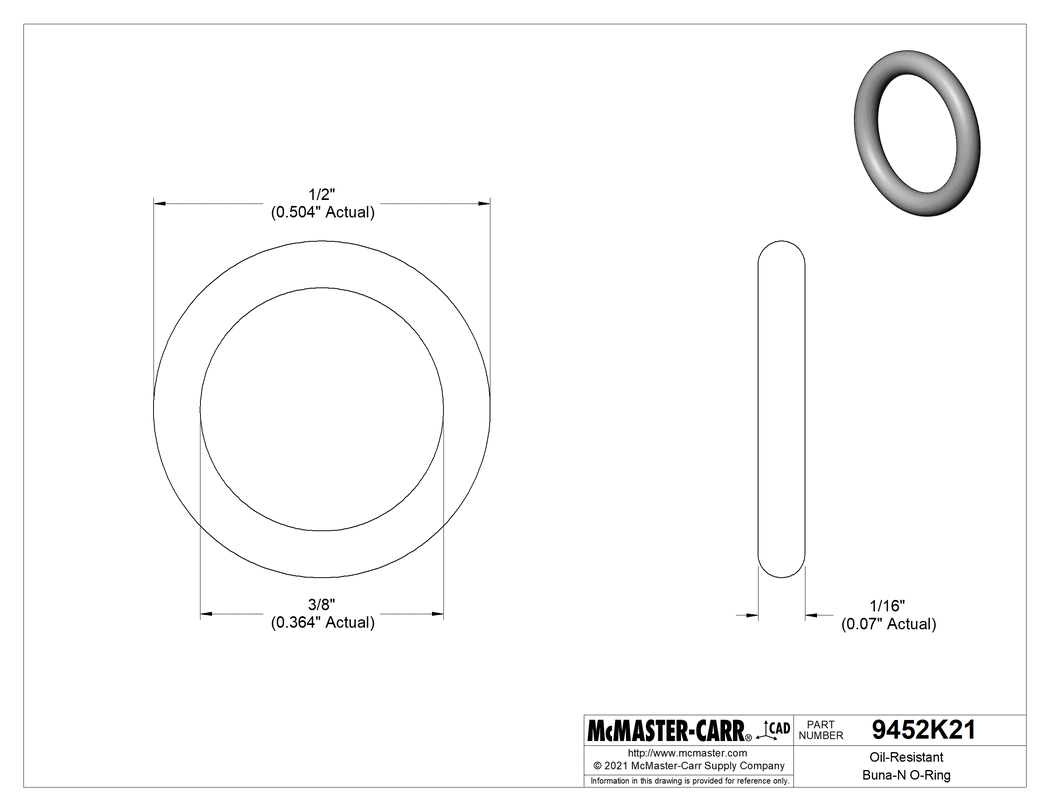

    Technical Drawing of Oil-Resistant Buna-N O-Ring, 1/16 Fractional Width, Dash Number 012.

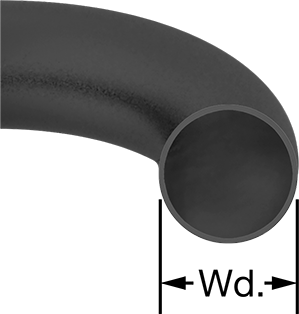

    Image of Attribute. Front orientation. CrossSection view. Contains Annotated. Oil-Resistant Buna-N O-Ring, 1/16 Fractional Width, Dash Number 012.
    Image of Attribute. Front orientation. CrossSection view. Contains Annotated. Oil-Resistant Buna-N O-Ring, 1/16 Fractional Width, Dash Number 012.
    Image of Attribute. Front orientation. CrossSection view. Contains Annotated. Oil-Resistant Buna-N O-Ring, 1/16 Fractional Width, Dash Number 012.
    2-D PDF
    00000 per pack of 100
    9452K21
    In stock
    9452K21
    1-9 packs00000
    10-49 packs00000
    50 or more00000
    Pack of 100
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    System of Measurement

    Inch

    Fractional

    Width

    1/16

    ID

    3/8

    OD

    1/2

    Width

    0.07"

    Dash Number

    012

    ID

    0.364"

    OD

    0.504"

    Hardness

    Durometer 70A (Medium)

    Specifications Met

    ASTM D2000, SAE AS568, SAE J200

    Temperature Range

    -30° F to 215° F

    Color

    Black

    Cross Section Shape

    Round

    For Use With

    Animal Oil
    Boric Acid
    Butyl Alcohol
    Calcium Hydroxide
    Citric Acid
    Ethanol
    Ethylene Glycol
    Glycerin
    Grease
    Hydraulic Oil
    Isopropyl Alcohol
    Methanol (Methyl Alcohol)
    Mineral Oil
    Motor Oil
    Petroleum
    Potassium Hydroxide
    Sodium Bicarbonate (Baking Soda)
    Vegetable Oil
    Water

    Performance

    Oil Resistant

    Country of Origin

    United States, China, Vietnam

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    401693.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Made of Buna-N, these O-rings resist grease, hydraulic oil, and motor oil—plus mild chemicals and water. However, Buna-N is not for use with brake fluid. These O-rings are commonly used to create multidirectional seals between two parts in power transmission assemblies, hydraulic cylinders, and pneumatic cylinders. They resist compression and tearing to keep their shape over time. All have shelf life, a cure date, and a traceable lot number printed on the package.
